Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Archilight

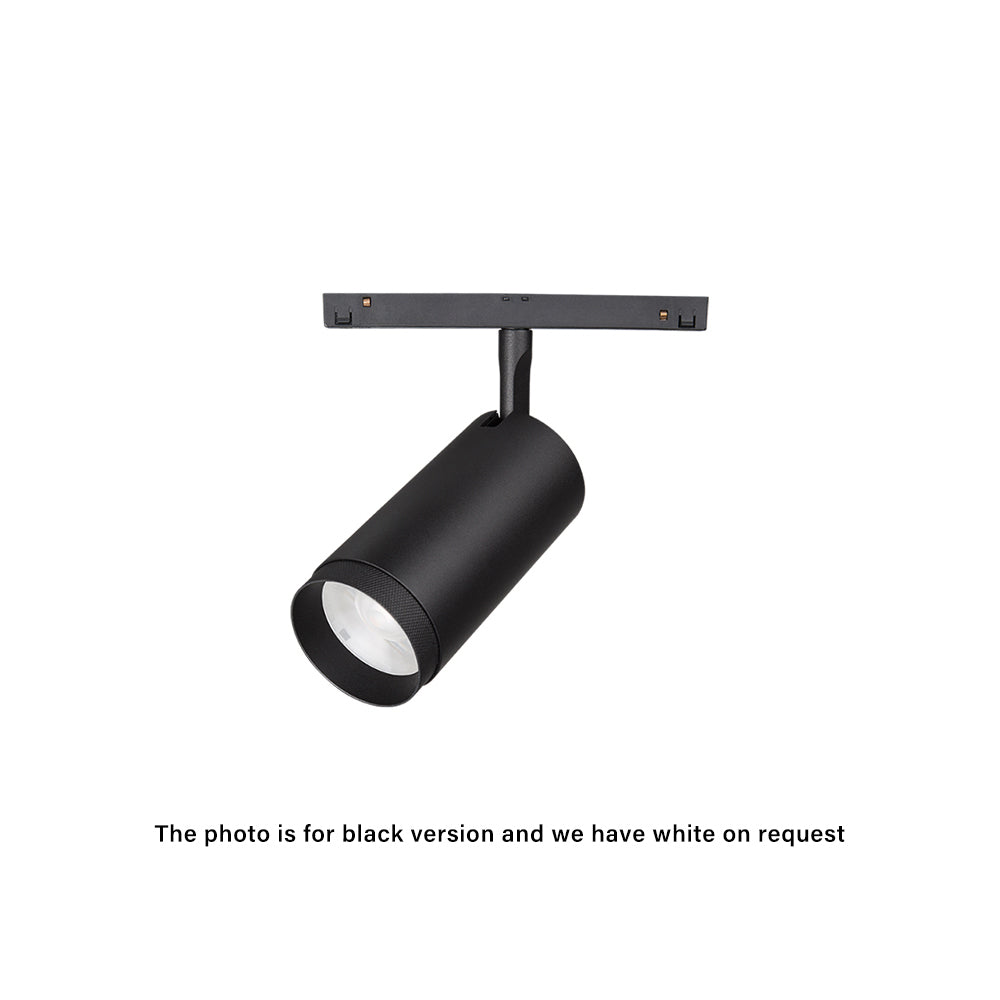

Archilight Dot 70 White Tracklight Light 25W

SKU KC-017006B01-15-36D-2700K-W
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 6 variants

KC-017006B01-15-36D-2700K-W
LED Colour
Beam Angle
6 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Specifications

Archilight Dot 70 White Tracklight Light 25WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED Colour
KC-017006B01-36-60D-3000K-WWarm White 3000K
KC-017006B01-36-60D-4000K-WNatural White 4000K

Specifications

Input
48 V
Power rating
25 W
Beam angle
15° - 36° / 36° - 60°
Brightness
2,150 lm
Efficacy
≥86 lm/W
Colour render index(CRI)
≥90
UGR
<19
IP level
IP20
Temperature range
-25°C~50°C
Dimming control
Bluetooth APP Control (Default) or DALI (Optional)

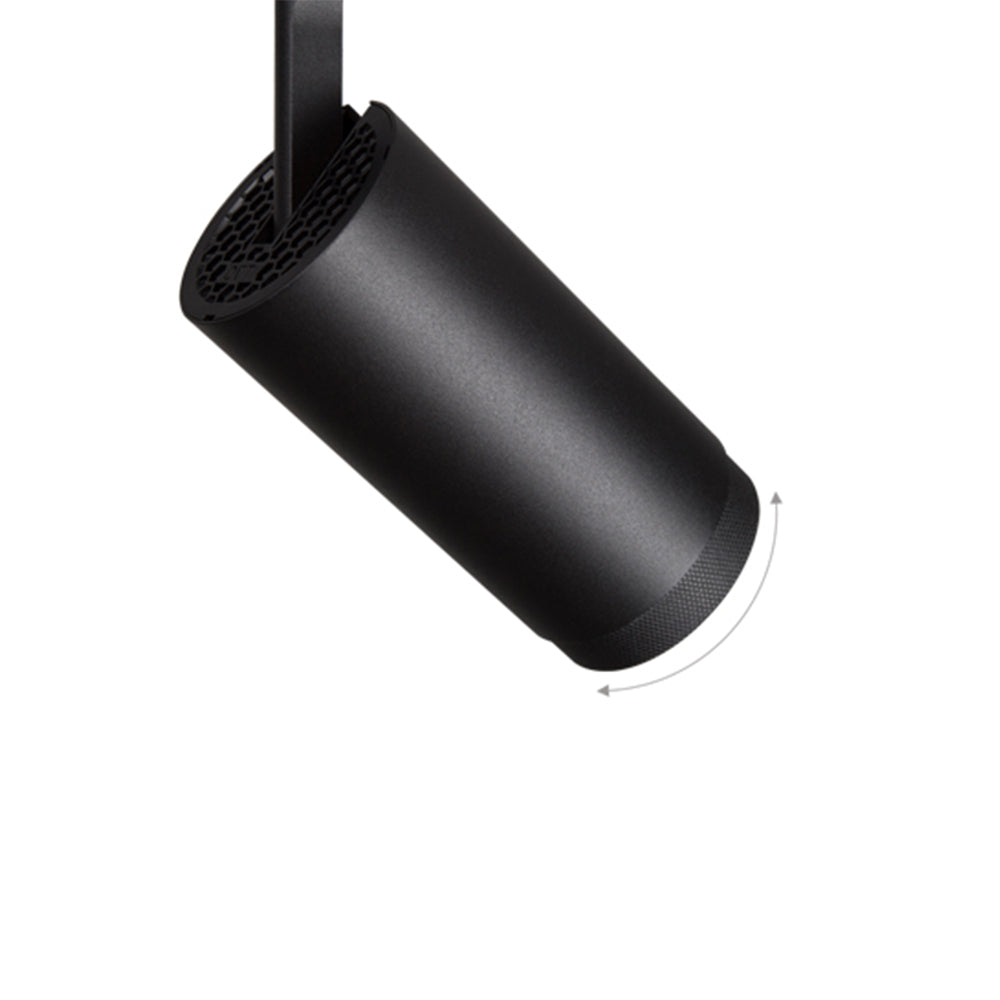

Tiltable
Adjustable
Mounting
Motion Magnetic Track Series
Driver
48V Driver Not Included
Warranty
5 years
Lifetime
50,000hrs
Material
Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, Class II, IP20

Technical drawings

Archilight Dot 70 White Tracklight Light 25W Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What type of product is the Archilight Dot 70 White Tracklight Light 25W?

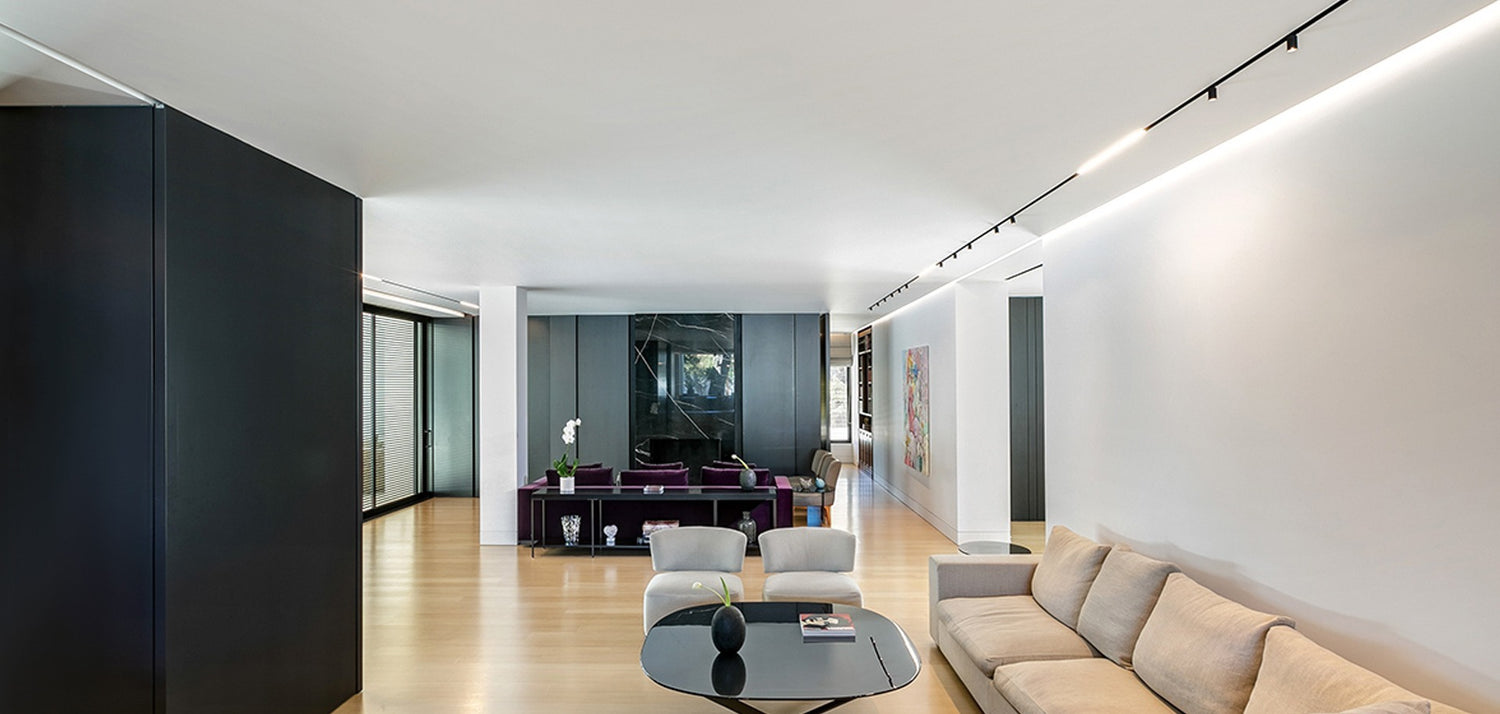

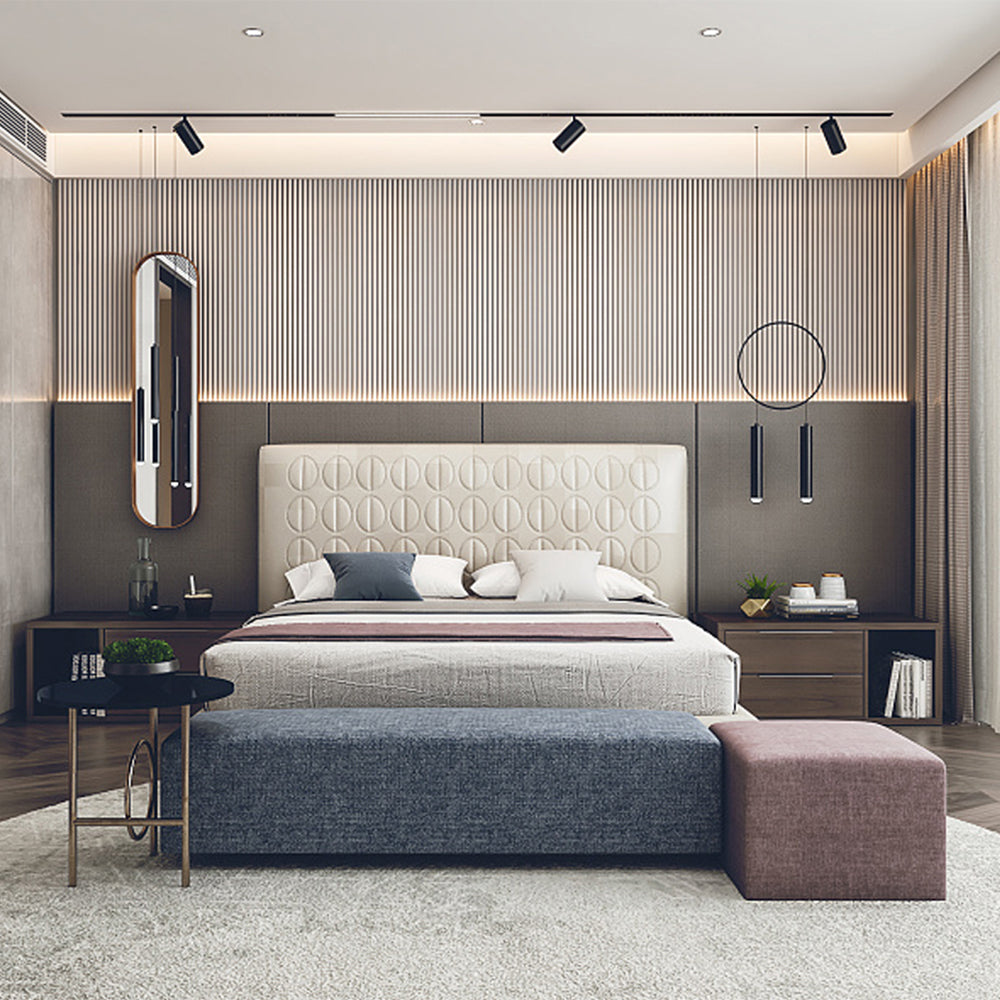

This is a 25W magnetic track spotlight from the Archilight Dot series. It is designed for interior applications including residential, hospitality, office, and retail spaces, and it pairs with Motion series track systems.

What variant options are available in this Dot 70 parent product family?

This parent model is offered in multiple colour temperature options: 2700K, 3000K, 4000K, and 5000K. It also comes in beam-angle variants identified in the family data as 15_36 and 36_60, all in a white finish and 25W format.

Is the driver included with this track light?

No, the driver is not included with this product family. Buyers should account for that when planning a specification or quoting a complete track lighting system.

Is the Archilight Dot 70 White Tracklight Light 25W dimmable?

No, this parent product family is listed with no dimming control. It should be specified as a non-dimmable 25W track light unless a different product family is required.

What are the key performance specs for this product family?

The Dot 70 White Tracklight Light is rated at 25W with CRI 90, supporting high colour rendering in commercial and architectural spaces. Child variants in this family are listed at 2125 lumens, with a 50,000-hour lifetime and a 5-year warranty.

What are the physical dimensions of the parent model?

The parent model dimensions are 225 mm high, 183.5 mm long, and 85 mm wide. The listed product weight is 0.5 kg, which helps with planning around track lighting layouts and fixture schedules.

Is this track light suitable for commercial interior use?

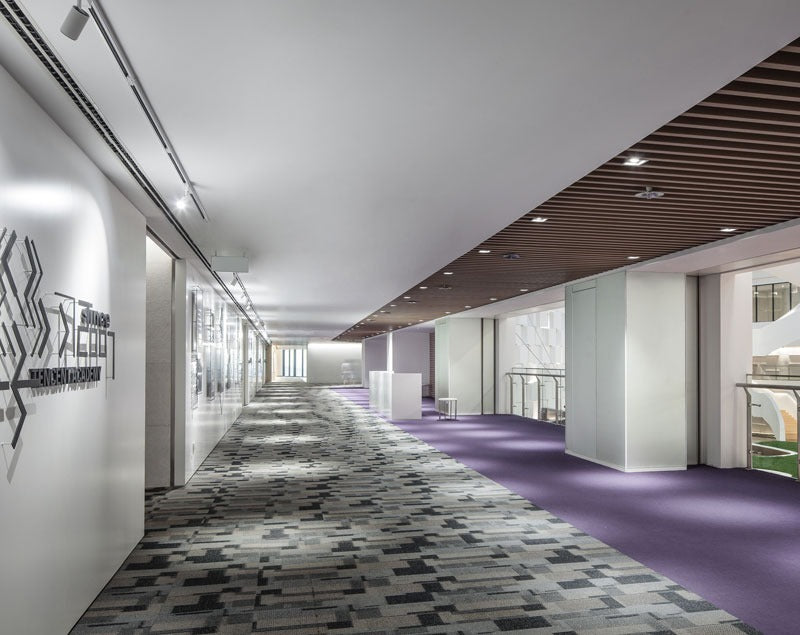

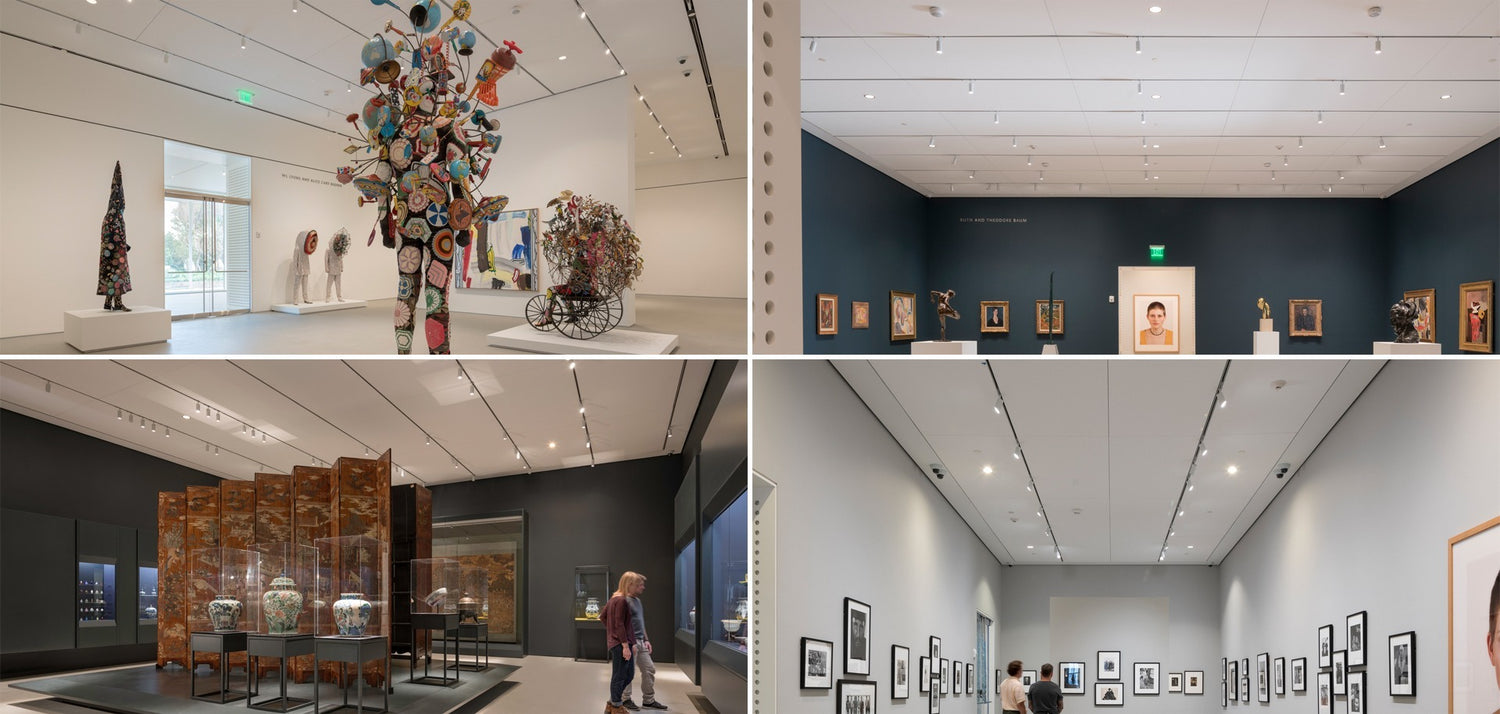

Yes, the product description specifically positions the Dot series for residential, hospitality, office, and retail environments. Its CRI greater than 90 and low glare rating of UGR less than 19 make it well suited to quality-focused interior lighting projects.
