Archilight

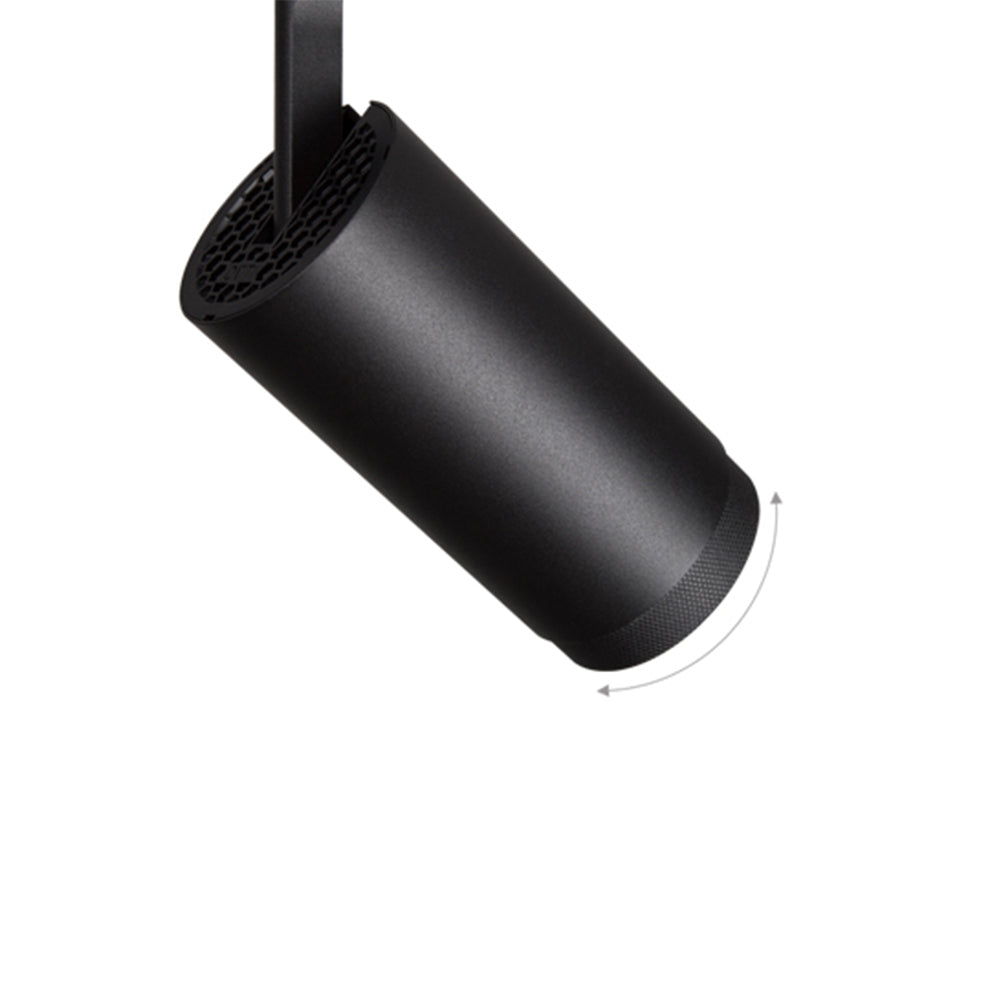

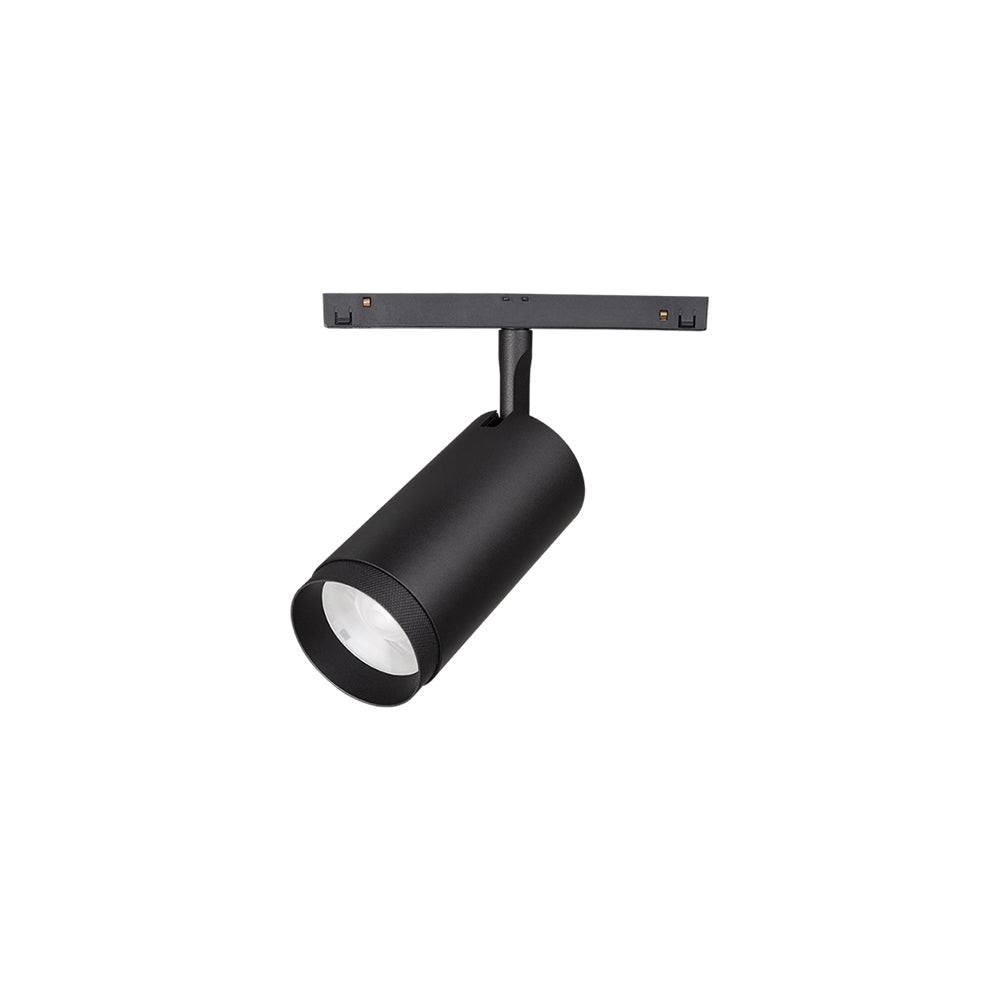

Archilight Dot 70 Black Tracklight Light 25W

SKU KC-017006B01-15-36D-2700K-B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 6 variants

KC-017006B01-15-36D-2700K-B
LED Colour
Beam Angle
6 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Specifications

Archilight Dot 70 Black Tracklight Light 25WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED Colour
KC-017006B01-36-60D-3000K-BWarm White 3000K
KC-017006B01-36-60D-4000K-BNatural White 4000K

Specifications

Input
48 V
Power rating
25 W
Beam angle
15° - 36° / 36° - 60°
Brightness
2,150 lm
Efficacy
≥86 lm/W
Colour render index(CRI)
≥90
UGR
<19
IP level
IP20
Temperature range
-25°C~50°C
Dimming control
Bluetooth APP Control (Default) or DALI (Optional)
Tiltable
Adjustable
Mounting
Motion Magnetic Track Series
Driver
48V Driver Not Included
Warranty
5 years
Lifetime
50,000hrs
Material
Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, Class II, IP20

Technical drawings

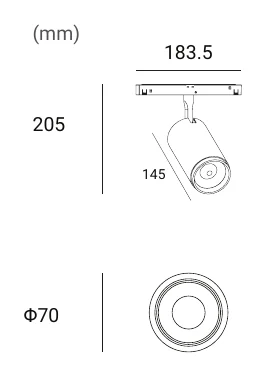

Archilight Dot 70 Black Tracklight Light 25W Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What type of product is the Archilight Dot 70 Black Tracklight Light 25W?

This is a magnetic track light module in the Archilight Dot series, designed for use with Motion series track systems. It is a round spotlight format intended for interior applications such as residential, hospitality, office, and retail spaces.

What variant options are available in this parent product family?

This parent family includes multiple colour temperature and beam angle combinations. Available colour temperatures are 2700K, 3000K, 4000K, and 5000K, and the beam angle options are 15/36 degrees and 36/60 degrees.

What are the main performance specifications across the Dot 70 Black 25W range?

All variants in this family are rated at 25W and deliver 2125 lumens. They also have CRI 90, a 50,000-hour lifetime, and a 5-year warranty, making the range suitable for projects that need strong colour rendering and long service life.

Is the driver included with this track light?

No, the driver is not included with this product family. The parent data lists the driver as not included, so buyers should account for that when specifying the full track lighting system.

Is this product dimmable?

No, this parent product family is listed with no dimming control. That means the variants shown here should be treated as non-dimmable unless a separate approved system specification states otherwise.

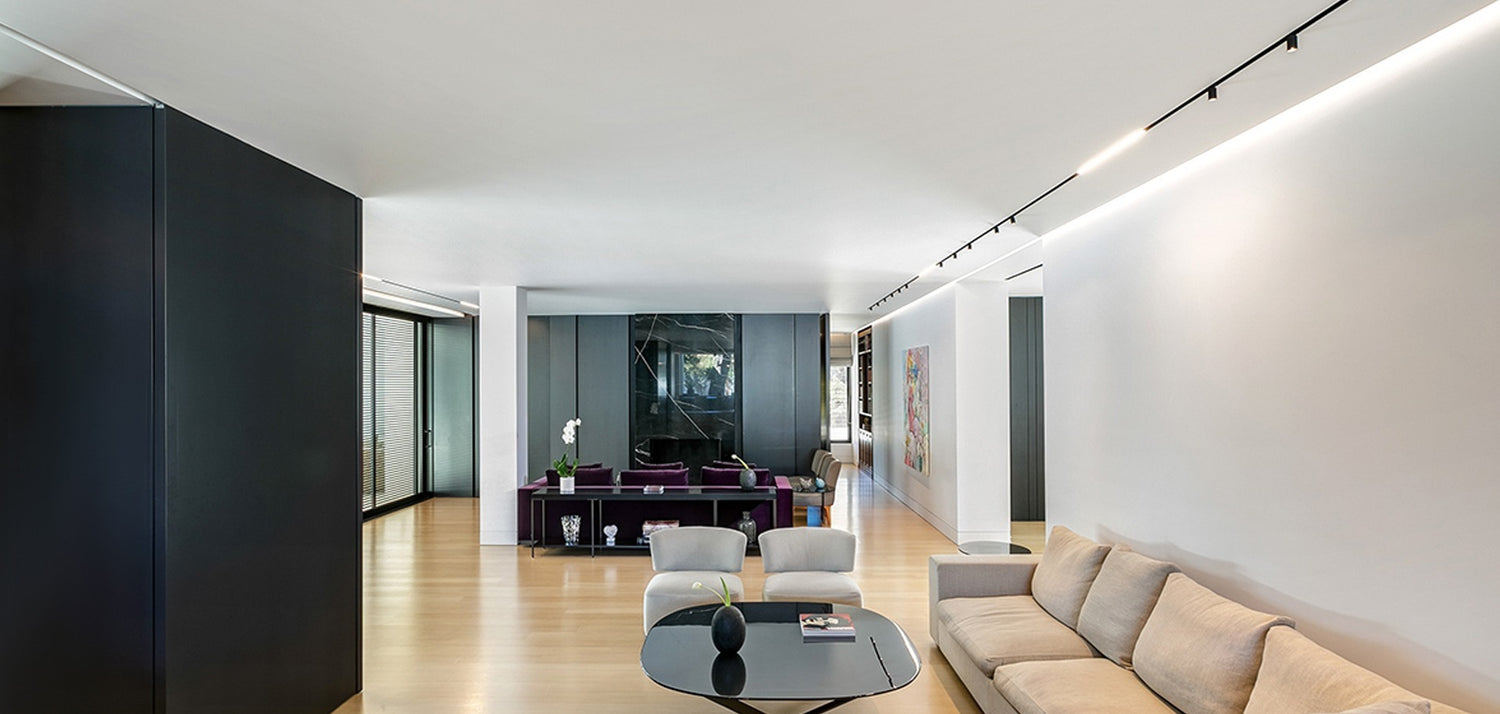

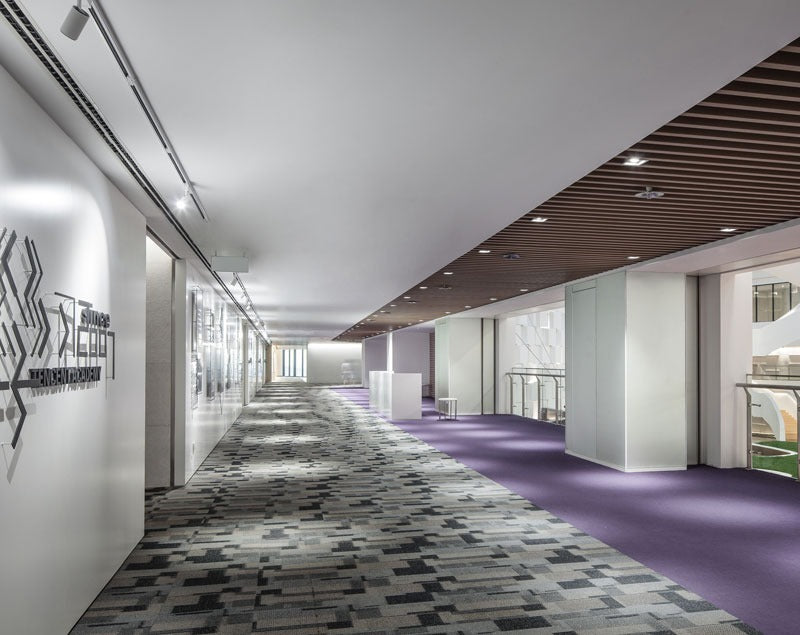

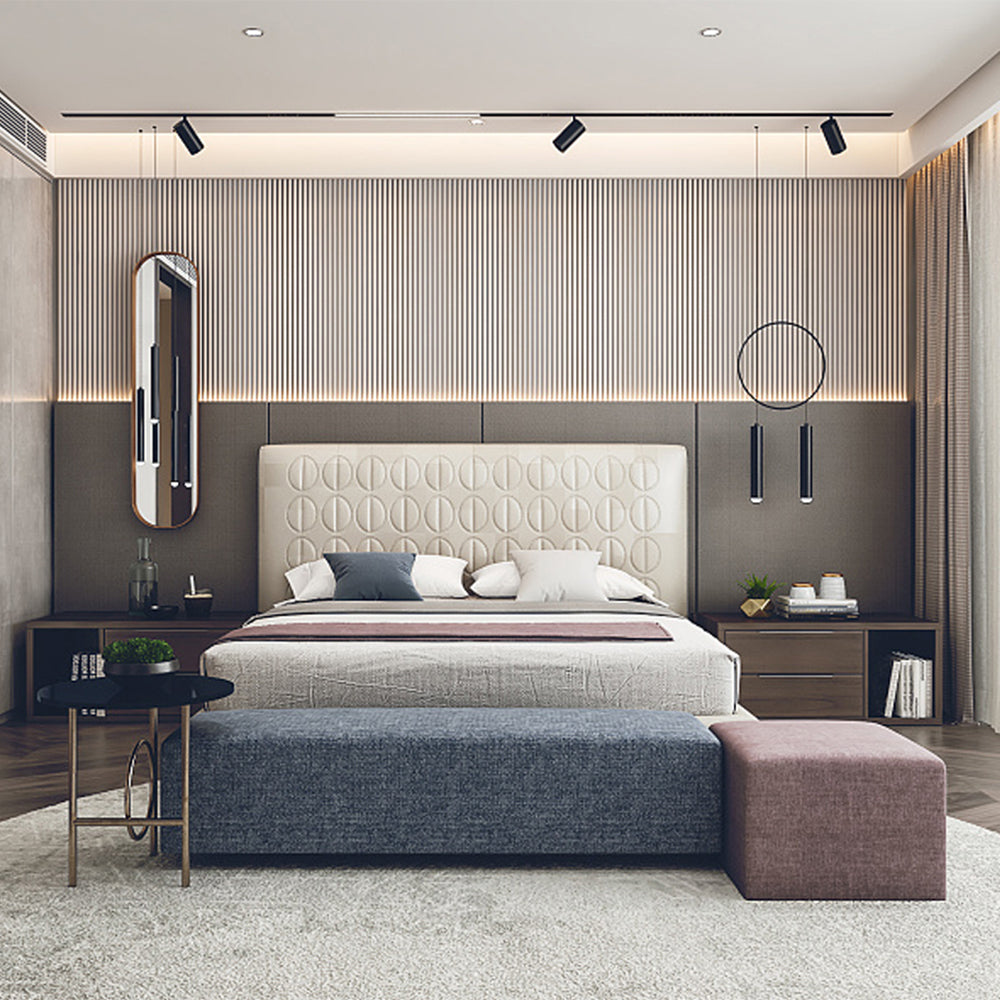

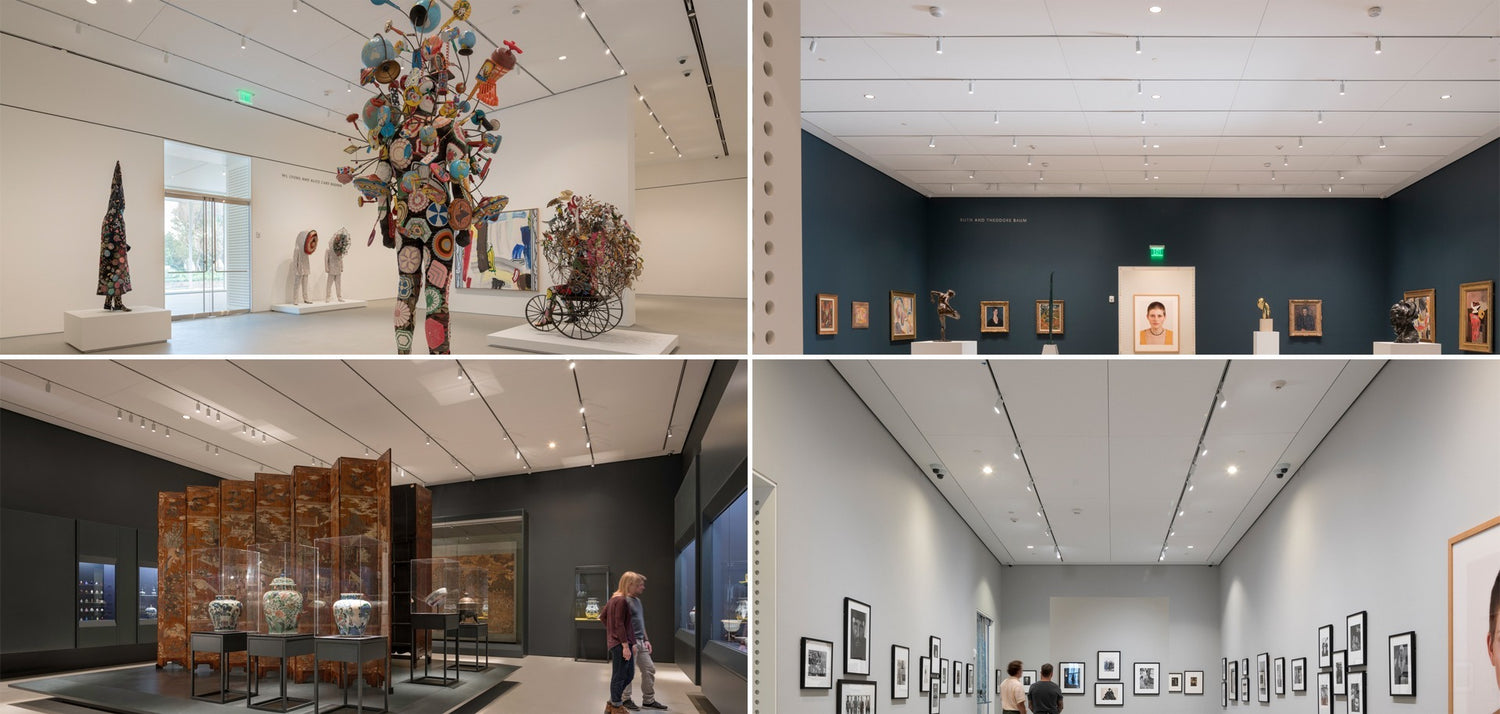

What environments is this track light suited for?

The Dot series is intended for indoor use across residential, hospitality, office, retail, and other commercial interiors. Its CRI above 90 and low glare positioning make it suitable for spaces where visual comfort and accurate colour appearance matter.

What are the physical dimensions of the parent model?

The parent model dimensions are 225 mm high, 183.5 mm long, and 85 mm wide, with a weight of 0.5 kg. These dimensions can help with product selection and layout planning at the specification stage.
