Archilight Dot 70 White and Gold Tracklight Light 25W

Q: What type of lighting application is the Archilight Dot 70 White and Gold Tracklight Light 25W designed for?

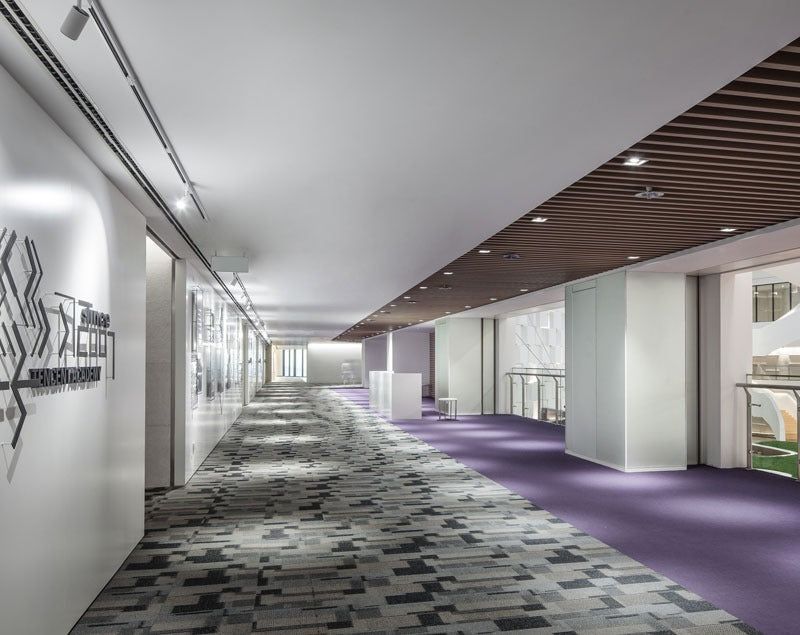

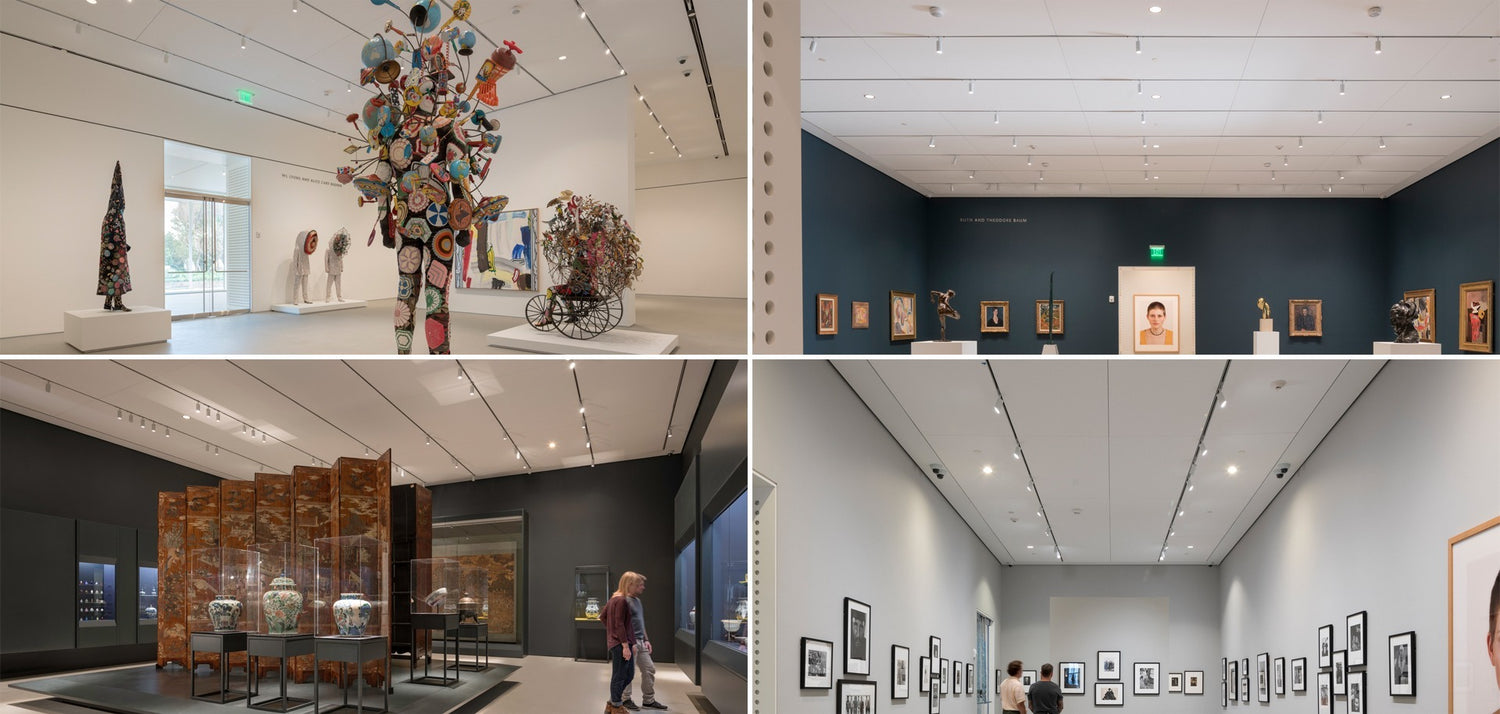

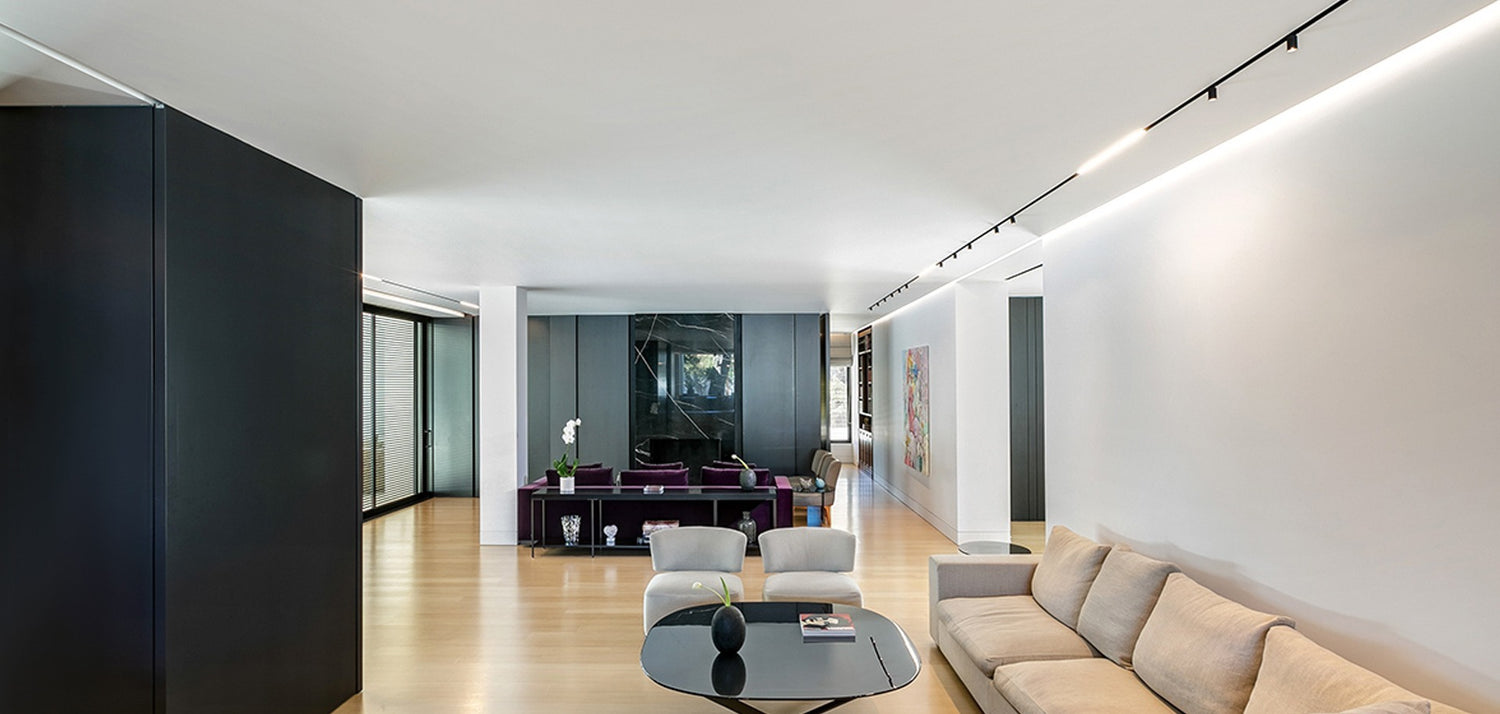

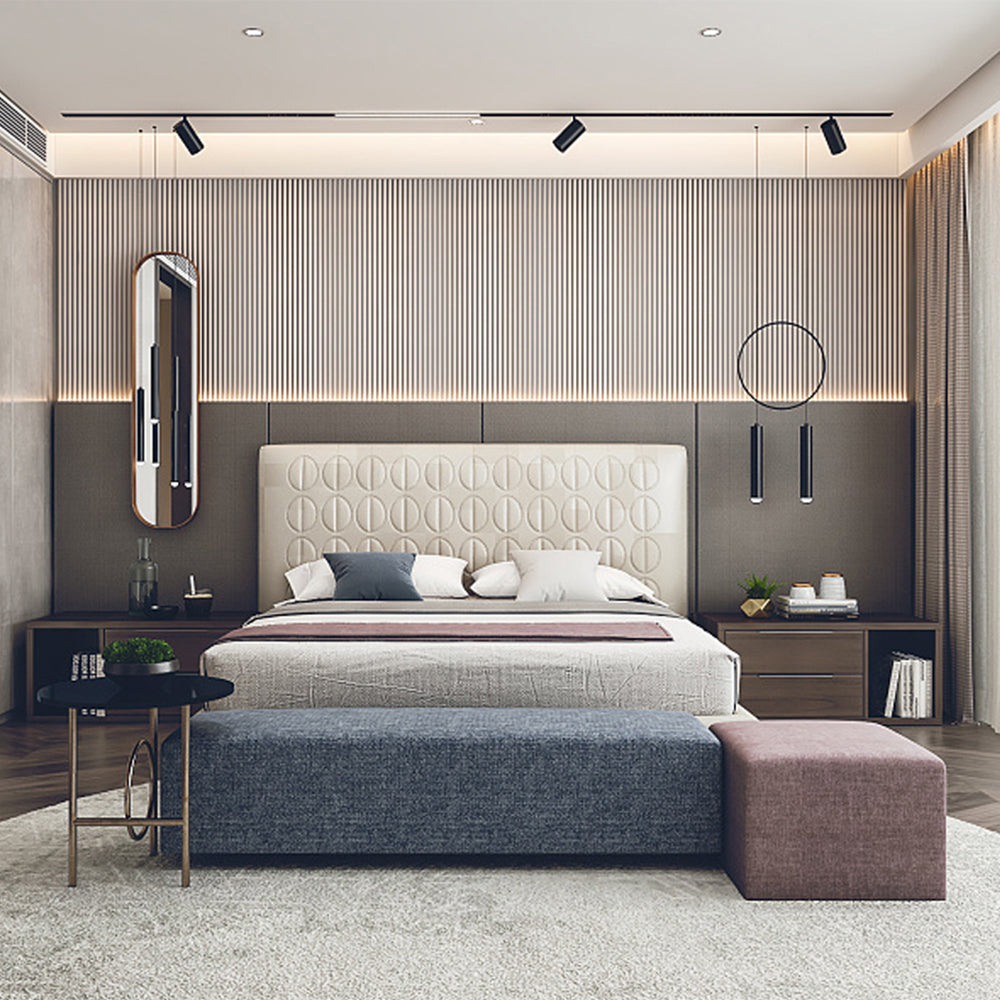

This product is a magnetic track light module designed for interior lighting applications. It suits residential, hospitality, office, retail, and other commercial environments where a directional spotlight is needed. It is intended to pair with Motion series track systems.

Q: What options are available across this Dot 70 parent product family?

This parent family offers multiple colour temperature and beam angle combinations. Based on the variants shown, colour temperature options include 2700K, 3000K, 4000K, and 5000K, while beam angle groups are listed as 15_36 and 36_60. The finish across the family shown here is white and gold.

Q: What are the core performance specifications of this 25W track light?

The Dot 70 in this family is rated at 25W and the listed variants provide 2125 lumens output. It uses a high colour rendering light source with CRI 90 and has a rated lifetime of 50,000 hours. The warranty period is 5 years.

Q: Is the driver included with the Archilight Dot 70 White and Gold Tracklight Light 25W?

No, the driver is not included with this product family. The parent data and all listed child variants show the driver status as driver not included. Buyers should account for that when specifying the full track lighting system.

Q: Is this track light dimmable?

The product data for the parent model and all listed variants shows dimming control as none. That means this family should be treated as non-dimmable based on the provided specifications. No dimming method is indicated in the supplied data.

Q: What are the physical dimensions of the Archilight Dot 70 White and Gold Tracklight Light 25W?

The parent model is listed with a height of 225 mm, length of 183.5 mm, and width of 85 mm. Its weight is 0.5 kg. These dimensions help assess suitability for interior track lighting layouts where fixture size and visual profile matter.

Q: What input type is specified for this Dot 70 track light family?

The parent product data lists the LED light power input as 48V. This makes it part of a low-voltage magnetic track lighting system rather than a standalone conventional fitting. Compatibility should therefore be considered at the system level with the intended track range.

SKU:

KC-017006B01-15-36D-2700K-WG

Log in to see price Trade pricing & online ordering for account holders

Configure — 8 variants

KC-017006B01-15-36D-2700K-WG

LED Colour

Finish Colour

Beam Angle

8 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Notify me when it's back in stock

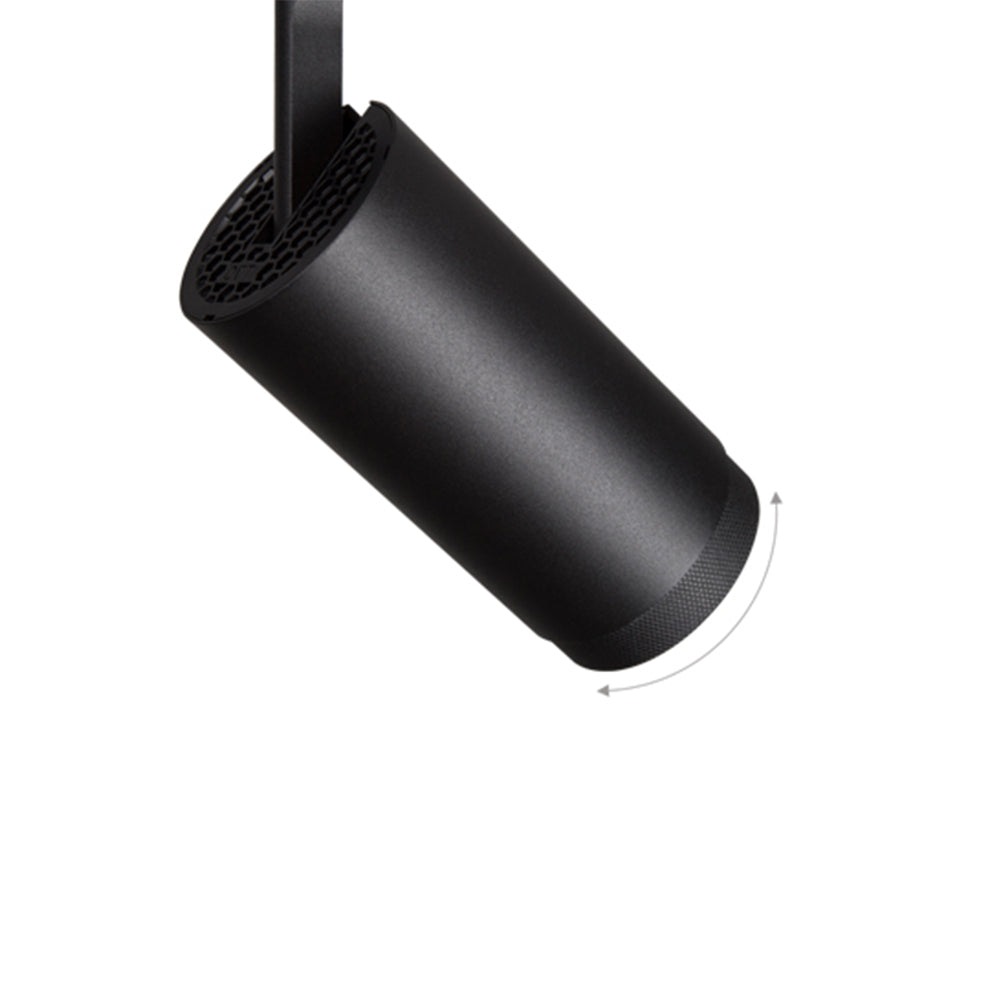

The Dot series magnetic track light has a range of wattage, beam and colour temperature options. This flexible round spotlight has the highest quality LED chip with high colour rending index (CRI>90) and low glare rating (UGR<19). It can be used in any application, including residential, hospitality, office and retail. Pair with any Motion series track.

Frequently Asked Questions

What type of lighting application is the Archilight Dot 70 White and Gold Tracklight Light 25W designed for?

This product is a magnetic track light module designed for interior lighting applications. It suits residential, hospitality, office, retail, and other commercial environments where a directional spotlight is needed. It is intended to pair with Motion series track systems.

What options are available across this Dot 70 parent product family?

This parent family offers multiple colour temperature and beam angle combinations. Based on the variants shown, colour temperature options include 2700K, 3000K, 4000K, and 5000K, while beam angle groups are listed as 15_36 and 36_60. The finish across the family shown here is white and gold.

What are the core performance specifications of this 25W track light?

The Dot 70 in this family is rated at 25W and the listed variants provide 2125 lumens output. It uses a high colour rendering light source with CRI 90 and has a rated lifetime of 50,000 hours. The warranty period is 5 years.

Is the driver included with the Archilight Dot 70 White and Gold Tracklight Light 25W?

No, the driver is not included with this product family. The parent data and all listed child variants show the driver status as driver not included. Buyers should account for that when specifying the full track lighting system.

Is this track light dimmable?

The product data for the parent model and all listed variants shows dimming control as none. That means this family should be treated as non-dimmable based on the provided specifications. No dimming method is indicated in the supplied data.

What are the physical dimensions of the Archilight Dot 70 White and Gold Tracklight Light 25W?

The parent model is listed with a height of 225 mm, length of 183.5 mm, and width of 85 mm. Its weight is 0.5 kg. These dimensions help assess suitability for interior track lighting layouts where fixture size and visual profile matter.

What input type is specified for this Dot 70 track light family?

The parent product data lists the LED light power input as 48V. This makes it part of a low-voltage magnetic track lighting system rather than a standalone conventional fitting. Compatibility should therefore be considered at the system level with the intended track range.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	UGR
Archilight Dot 70 Black Tracklight Light 25W - 36-60 Degree - Black - Natural White 4000K - DALI2 dimmable	25W	90	None	19	View
Archilight Dot 70 Black Track Light BLE 25W	25W	90	Optional	19	View
Archilight Dot 70 White Tracklight Light 25W	25W	90	None	19	View
Archilight Dot 70 Black and Gold Tracklight Light 25W	25W	90	None	19	View
Archilight Dot 70 Black Tracklight Light 25W	25W	90	None	19	View
