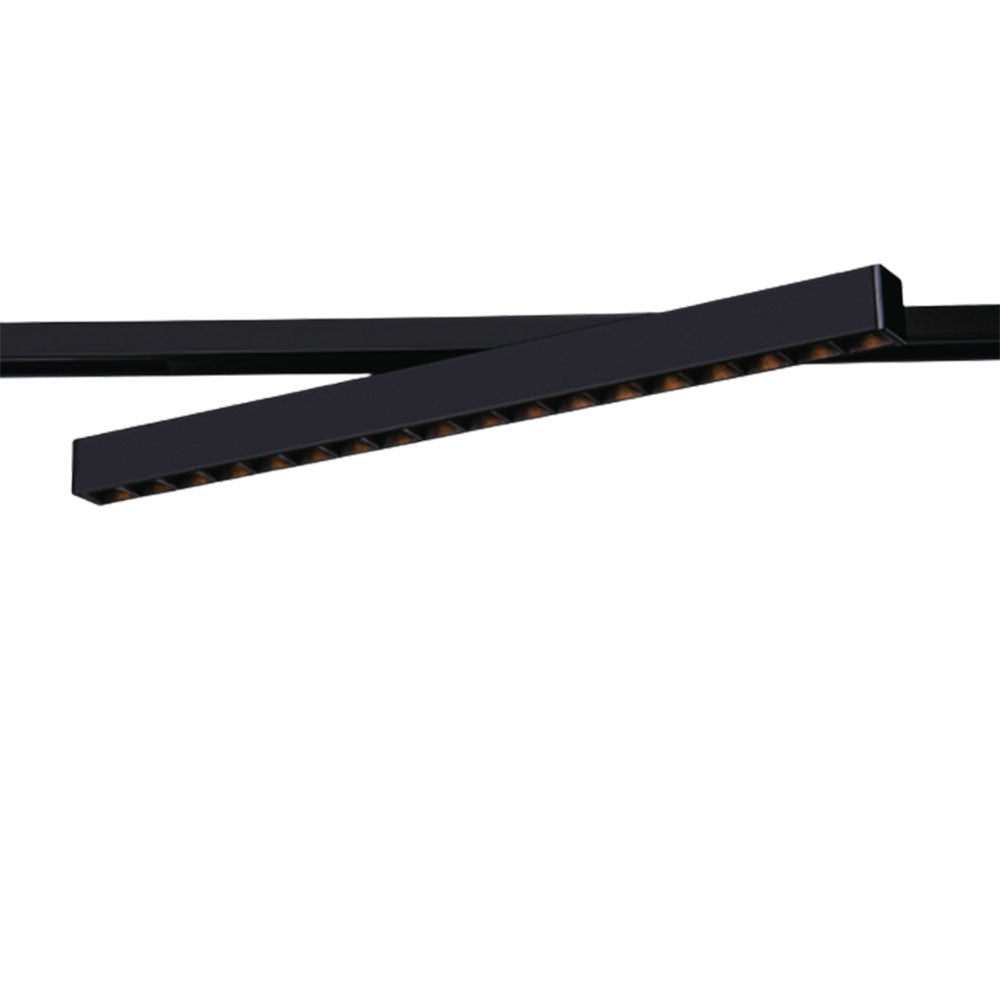

Archilight Grid Mini 264C Track Light 8.5W - Black + Gold
Log in to see priceTechnical drawings
Downloads
Datasheet1
Archilight Grid Mini 264C Track Light 8.5W - Black + Gold datasheetgrid_mini_264c_spec_sheet.pdf
PDF
Download
FAQ
What type of product is the Archilight Grid Mini 264C?
The Archilight Grid Mini 264C is a compact 8.5W LED track light module designed for Archilight Mini track systems. Its slim, minimalist form is intended for spaces where the light effect stays visually prominent while the fitting remains discreet.
Which beam angle options are available in this parent product family?
This parent family is offered in 20°, 25°, 38°, and 60° beam angle variants. That gives buyers a choice between narrower and wider light distribution depending on the application and visual effect required.
What colour temperature options are available for this product family?
The child variants in this family include 3000K and 4000K options, along with versions identified as 2700K-6000K in the variant codes. Availability depends on the specific variant selected within the parent family.
What are the main performance specs of the Archilight Grid Mini 264C?
This track light is rated at 8.5W and up to 671 lumens, with CRI 90 for strong colour rendering. It also has a 50,000-hour rated lifetime and a 5-year warranty.
Does the Archilight Grid Mini 264C include a driver or dimming function?
No, the listed specification shows the driver is not included. The family is also marked as non-dimmable, with dimming control listed as none.
Which track systems is the Archilight Grid Mini 264C intended to pair with?
The product description identifies this model as pairing with Archilight Mini S Surface Tracks, Mini T Trimless Tracks, and Mini O Suspended Tracks. That makes it part of the broader Archilight Mini track system range rather than a standalone fitting.
Where is this track light best suited?
This model is well suited to refined interior applications that need a clean, low-profile lighting solution. Its compact dimensions and minimalist design make it appropriate for dedicated spaces where the lighting effect should take visual priority over the luminaire itself.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other Archilight Grid 264 Series Models
7 other models| Model | Power | CRI | Dimming | UGR | |
|---|---|---|---|---|---|
| Archilight Grid R Mini 264C Track Light 8.5W - White + Gold | 8.5W | 90 | Non Dimmable | 19 | View |
| Archilight Grid R Mini 264C Track Light 8.5W - White | 8.5W | 90 | Non Dimmable | 19 | View |
| Archilight Grid R Mini 264C Track Light 8.5W - Black + Gold | 8.5W | 90 | Non Dimmable | 19 | View |
| Archilight Grid R Mini 264C Track Light 8.5W - Black | 8.5W | 90 | Non Dimmable | 19 | View |
| Archilight Grid Mini 264C Track Light 8.5W - White + Gold | 8.5W | 90 | Non Dimmable | 19 | View |
| Archilight Grid Mini 264C Track Light 8.5W - White | 8.5W | 90 | Non Dimmable | 19 | View |
| Archilight Grid Mini 264C Track Light 8.5W - Black | 8.5W | 90 | Non Dimmable | 19 | View |
