Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

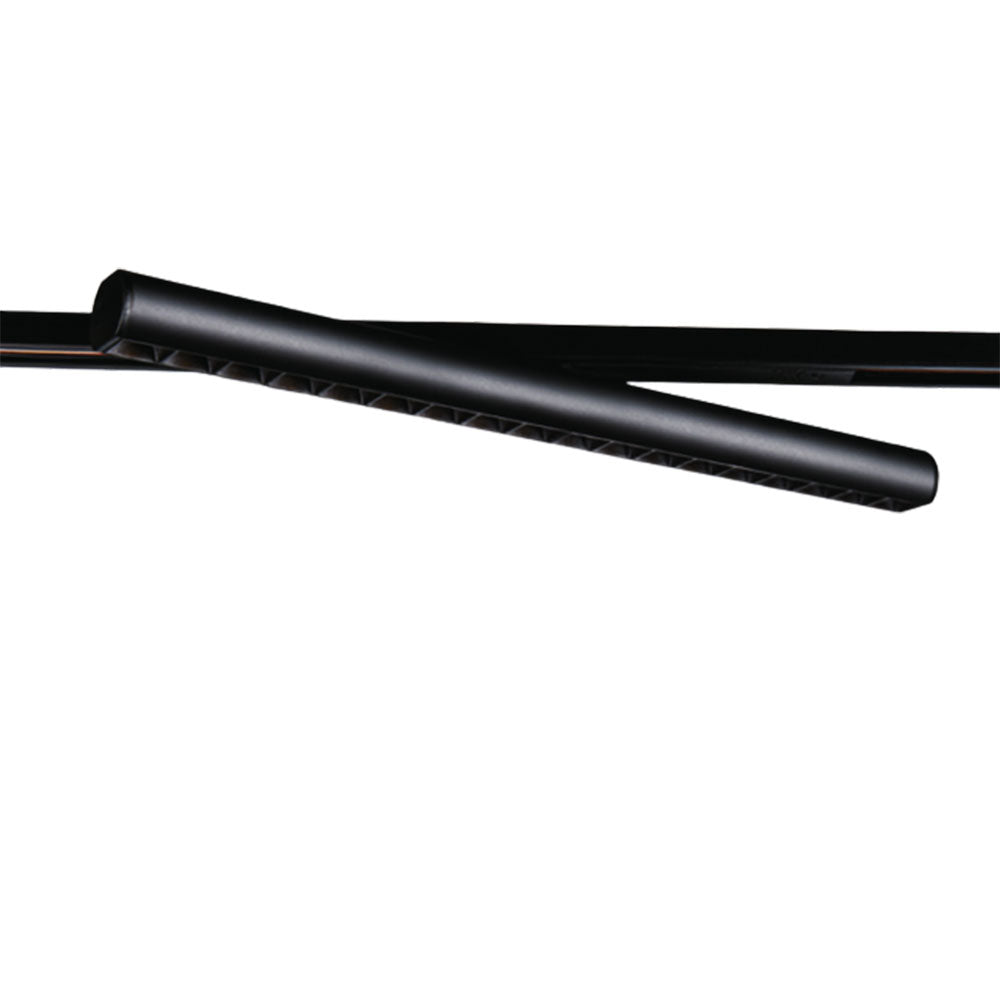

Archilight Grid R Mini 264C Track Light 8.5W - Black + Gold

SKU:

KC-10.009A18-20D-2700-6000K-BG

Log in to see price Trade pricing & online ordering for account holders

Configure — 12 variants

KC-10.009A18-20D-2700-6000K-BG

LED Colour

Finish Colour

Beam Angle

12 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Notify me when it's back in stock

Features:

Archilight Mini-series features a similar design to the Motion system. Being a lot smaller in size, the ultra-thin design is seen as a minimalist line, creating infinite visual effects yet the outstanding performance and function is maintained. This system is the best choice for a dedicated space where only the light itself attracts focus not the luminaire.

Archilight Dot Mini comes in different sizes, from 22 to 30mm in diameter. It also comes in different angles, colour and colour temperatures, covering all different scenarios. The light can also be rotated to create the best angle possible.

Pair It With:

Mini S Surface Tracks

Mini T Trimless Tracks

Mini O Suspended Tracks

Frequently Asked Questions

What is the Archilight Grid R Mini 264C designed for?

The Archilight Grid R Mini 264C is a compact micro magnetic track light module designed for interior spaces where a minimal visual footprint is important. Its ultra-thin Mini-series form keeps attention on the lighting effect rather than the fitting itself, making it suitable for refined residential, retail, hospitality, and other design-led commercial applications.

What beam angle options are available across this product family?

This parent model is available in 20°, 25°, 38°, and 60° beam angle variants across the family. That gives buyers a choice between narrower and wider light distribution depending on whether the goal is accent lighting, focused highlights, or broader illumination.

What colour temperature options are offered for the Grid R Mini 264C range?

The family includes 3000K and 4000K variants, plus versions listed as 2700-6000K. This means the range covers warmer and more neutral lighting preferences across different project needs, while keeping the same core product format and output.

What are the main performance specifications of this track light?

Across the family, the Grid R Mini 264C uses 8.5W of power and delivers 672 lumens. It has a CRI of 90, a rated lifetime of 50,000 hours, and a 5-year warranty, making it a strong option where colour quality and long service life matter.

Does this product include a driver or dimming function?

No, the product data states that the driver is not included. The listed dimming control is none, so this family should be treated as a non-dimmable option unless a specific project solution is confirmed separately.

What track systems is the Grid R Mini 264C intended to pair with?

The product content indicates it is intended to pair with Archilight Mini S Surface Tracks, Mini T Trimless Tracks, and Mini O Suspended Tracks. This positions it within the Archilight mini magnetic track system range rather than as a standalone general-purpose luminaire.

What size is the Archilight Grid R Mini 264C?

The parent model dimensions are listed as 264 mm long, 100 mm wide, and 18 mm high, with a weight of 0.5 kg. These proportions support its low-profile appearance and make it suitable for projects where a discreet linear module is preferred.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	UGR
Archilight Grid R Mini 264C Track Light 8.5W - White + Gold	8.5W	90	None	19	View
Archilight Grid R Mini 264C Track Light 8.5W - White	8.5W	90	None	19	View
Archilight Grid R Mini 264C Track Light 8.5W - Black	8.5W	90	None	19	View
Archilight Grid Mini 264C Track Light 8.5W - White + Gold	8.5W	90	None	19	View
Archilight Grid Mini 264C Track Light 8.5W - White	8.5W	90	None	19	View
Archilight Grid Mini 264C Track Light 8.5W - Black + Gold	8.5W	90	None	19	View
Archilight Grid Mini 264C Track Light 8.5W - Black	8.5W	90	None	19	View
