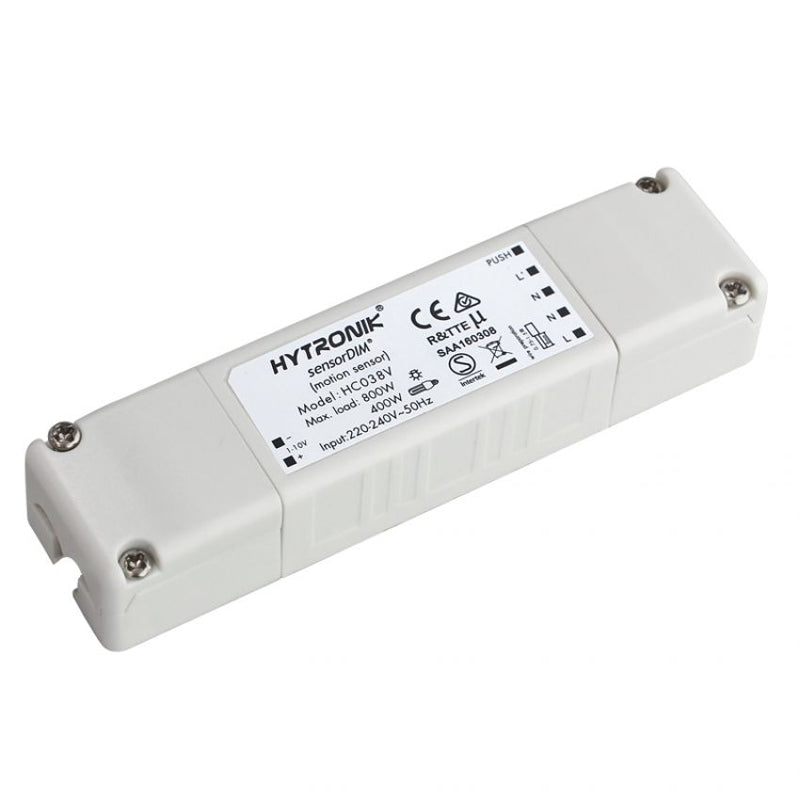

Hytronik Daylight Harvest PIR Sensor

400W, Microwave

SKU:

HC038V

Notify me when it's back in stock

Description

HC038V is a 1-10V control base whereas HCD038 and HCD038/P are DALI control bases with 30mA DALI power supply built in. They work with a wide range of microwave and PIR sensor heads. They are ideal for metal luminaire designs because the Bluetooth module is placed inside the sensor heads instead of control base, so that the Bluetooth signal transmission is viable. They are suitable for any typical indoor applications such as ofce, classroom, car park, warehouse and other commercial/industrial areas. With Bluetooth wireless mesh networking, it makes communication much easier without any hardwiring, which eventually adds values to luminaires and saves costs for projects. Meanwhile, simple device setup and commissioning can be done via Koolmesh app.

Specifications

Brand

Hytronik
Series

Hytronik
Power Rating

400 Watt
Standards Met

CB,CE,EMC,RCM,RED,SEMKO
Operating Temperature

-35°C~70°C
Warranty

5 Year
Length

12 cm
Width

3 cm
Height

2.1 cm
Weight

1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Hytronik HC038V designed for?

The HC038V is a daylight harvest PIR sensor control base intended for indoor commercial and industrial lighting applications. Hytronik positions it for spaces such as offices, classrooms, car parks, warehouses, and similar environments where smart lighting control is needed.

How does the HC038V differ from the HCD038 and HCD038/P?

The HC038V is a 1-10V control base. By comparison, the HCD038 and HCD038/P are DALI control bases with a built-in 30mA DALI power supply.

Is the HC038V suitable for metal luminaires?

Yes. Hytronik states that this platform is ideal for metal luminaire designs because the Bluetooth module is placed inside the sensor heads rather than the control base, helping maintain viable Bluetooth signal transmission.

What type of sensor heads can the HC038V work with?

The HC038V works with a wide range of microwave and PIR sensor heads. That flexibility makes it suitable for different smart lighting control designs within the same general product family.

What control and smart lighting features does the HC038V support?

This model is described as a 1-10V control base with tri-level dimming control. It also supports Bluetooth wireless mesh networking, which helps simplify communication in smart lighting projects without hardwiring between devices.

What environments can the HC038V operate in?

The HC038V is rated for a wide operating temperature range from -35°C to 70°C. That makes it appropriate for many typical indoor commercial and industrial environments where temperature conditions may vary.

What are the key durability and ownership specs for the HC038V?

The listed lifetime is 50,000 hours, and the warranty period is 5 years. The product finish is white, the rated power is 400 W, and the listed weight is 1 kg.
