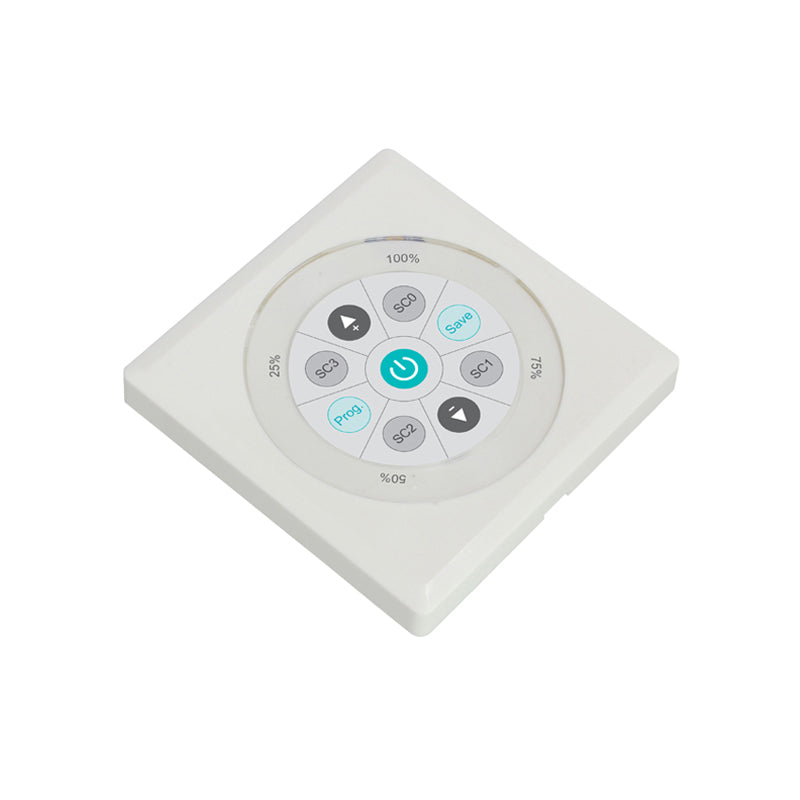

Hytronik System DALI Control Panel (Wall Switch)

DALI System Switch

SKU:

HDP03

Please for Pricing

Notify me when it's back in stock

Description

Wall switch for use in DALI system, 4 scene selection, with rotary switch for grouping

Specifications

Brand

Hytronik
Series

Hytronik
Rated Current

6 Ampere
Standards Met

CB,CE,EMC,RCM,RED,SEMKO
Operating Temperature

-20°C~55°C
Warranty

5 Year
Length

8.6 cm
Width

1.15 cm
Height

3.5 cm
Weight

1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Hytronik System DALI Control Panel (Wall Switch) used for?

This model is a wall switch designed for use in a DALI lighting system. It provides 4 scene selections and includes a rotary switch for grouping, making it suitable for commercial or smart lighting control setups.

How does this control panel help manage lighting zones or groups?

The HDP03 includes a rotary switch for grouping, which supports grouped control within a DALI system. That makes it useful where different lighting areas or scenes need to be selected from a wall-mounted control point.

Does this wall switch provide dimming control?

No. The listed dimming control for this model is none, so its specified function is scene selection and grouping within a DALI system rather than direct dimming adjustment.

Is the HDP03 suitable for demanding indoor environments?

It is rated for operation from -20 deg C to 55 deg C, which supports use across a wide range of indoor commercial conditions. Buyers should still confirm that the project environment stays within that stated temperature range.

What are the key physical and durability specs of this DALI control panel?

This model has a white finish, a listed weight of 1.0000 kg, and a rated lifetime of 50000.0000 hours. It also comes with a 5.0000 year warranty period, which is relevant for long-term commercial installations.

Is this control panel compatible with standard DALI lighting systems?

Yes. The product description specifically states that it is for use in a DALI system, so it is intended for applications built around DALI lighting control. Compatibility beyond that should be checked against the exact system design and components being specified.
