Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

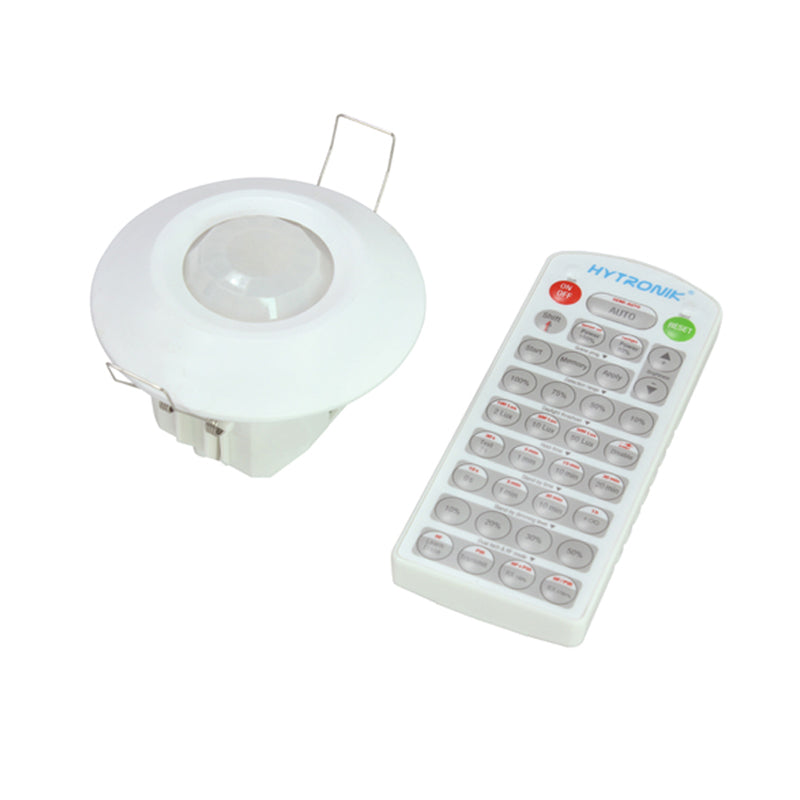

Hytronik PIR System DALI Sensor

8mA, PIR

SKU:

HIR23

Please for Pricing

Notify me when it's back in stock

Description

for use in DALI system, tri-level control PIR sensor, compact flush mounting design

Specifications

Brand

Hytronik
Series

Hytronik
Rated Current

8 Ampere
Standards Met

CB,CE,EMC,RCM,RED,SEMKO
Operating Temperature

-20°C~50°C
Warranty

5 Year
Length

6.47 cm
Width

5.6 cm
Height

7.33 cm
Weight

1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Hytronik PIR System DALI Sensor used for?

The Hytronik PIR System DALI Sensor is designed for use in DALI lighting systems where PIR-based occupancy sensing and tri-level dimming control are needed. Its compact flush mounting design makes it suited to commercial and professional indoor lighting applications that need automated lighting response.

Does this sensor support dimming control?

Yes. This model is specified with tri-level dimming control, which makes it suitable for lighting strategies that step between defined light levels rather than simple on/off operation. That can be useful in spaces where energy saving and controlled lighting behavior are both important.

Is the HIR23 compatible with DALI systems?

Yes. This sensor is specifically described as being for use in a DALI system. Buyers looking for a sensor intended for non-DALI control environments should compare it against models built for those other control types.

What operating temperature range does this sensor support?

The stated operating temperature range for this model is -20°C to 50°C. That range supports use in a broad set of indoor or protected commercial environments where temperature conditions may vary.

What are the key durability and service-life specifications of this model?

This sensor has a stated lifetime of 50,000 hours and a 5-year warranty period. Those specifications make it a practical option for buyers who want a long-service-life sensor for professional lighting control projects.

How does this model differ from a basic PIR sensor?

This model is differentiated by its intended use in DALI systems and its tri-level dimming control capability. Compared with a basic PIR sensor used only for simple switching, the HIR23 is aimed at more advanced lighting control applications.

Model	IP Rating	Dimming	Lifetime
Hytronik Sensor Antenna (SAM) Options	—	Tri-level	50000h	View
Hytronik Stand Alone Sensor Antenna (SAM) Options	IP20	Tri-level	50000h	View
Hytronik Stand Alone Sensor Antenna (SAM) Options	IP20	Tri-level	50000h	View
Hytronik Stand Alone Sensor Modules	IP20	Tri-level	50000h	View
Hytronik HRC-11 Remote Control	—	None	50000h	View
Hytronik HRC-09 Remote Control	—	None	50000h	View
Hytronik High Bay Sensor with RF Transmission IP65	IP65	Tri-level	50000h	View
Hytronik High Bay HF Motion Sensor IP65	IP65	Tri-level	50000h	View
Hytronik Stand Alone High Bay DALI Sensor	IP65	DALI	50000h	View
Hytronik Stand Alone High Bay HF Sensor	IP65	DALI	50000h	View
Hytronik High Bay HF Motion Sensor IP65	IP65	Tri-level	50000h	View
Hytronik Stand Alone HF Motion Sensor	IP20	Tri-level	50000h	View
Hytronik Stand Alone HF Motion Sensor	IP20	Tri-level	50000h	View
Hytronik Stand Alone HF Sensor with Daylight Harvest	IP20	Push Dimming	50000h	View
Hytronik HF Sensor With Tri-Level Control	IP20	Tri-level	50000h	View
Hytronik Stand Alone HF Motion Sensor	IP20	On-off	50000h	View
Hytronik Stand Alone High Bay DALI Sensor	IP42	Push Dimming	50000h	View
Hytronik Stand Alone High Bay HF Sensor	IP42	Push Dimming	50000h	View
Hytronik High Bay HF Motion Sensor IP42	IP42	Tri-level	50000h	View
Hytronik PIR Independent DALI Sensor	IP20	DALI	50000h	View
Hytronik Stand Alone PIR Sensor with Daylight Harvest Function	IP20	Push Dimming	50000h	View
Hytronik Flush Mount PIR Motion Sensor	IP20	Tri-level	50000h	View
Hytronik PIR Detached Daylight, Motion Sensor	IP20	Tri-level	50000h	View
Hytronik Photocell Advance™Daylight Harvesting PIR Sensor	—	—	50000h	View
Hytronik PIR Detached Daylight, Motion Sensor	IP20	Tri-level	50000h	View
Hytronik FM Flush Mount Daylight Harvesting PIR Sensor	IP20	None	50000h	View
Hytronik Detached Daylight Harvesting PIR Sensor	IP20	None	50000h	View
Hytronik Stand Alone Dual Independent DALI Sensor	IP65	Tri-level	50000h	View
Hytronik Dual Sense Trailing Edge Sensor	IP20	On-off	50000h	View
Hytronik Stand Alone Dual Independent DALI Sensor	IP20	Tri-level	50000h	View
Hytronik Stand Alone Dual Sense Motion Sensor	IP20	Tri-level	50000h	View
Hytronik PIR Circadian Rhythm sensor with Tunable white LED driver	—	DALI	50000h	View
Hytronik PIR Circadian Rhythm sensor with Tunable white LED driver	—	DALI	50000h	View
Hytronik Tunable white driver + Sensor head	IP20	DALI	50000h	View
Hytronik Hex-drive + sensor head	IP20	Tri-level	50000h	View
Hytronik Hex-drive + sensor head	IP20	Tri-level	50000h	View
Hytronik Hex-drive + sensor head	IP20	Tri-level	50000h	View
Hytronik System DALI Control Panel (Scene Controller)	IP20	None	50000h	View
Hytronik System DALI Control Panel (Wall Switch)	IP20	None	50000h	View
Hytronik DALI Control Panel (Scene Controller)	IP20	None	50000h	View
Hytronik Push-type Trailing Edge Dimmer Switch-Dim	IP20	Push Dimming	50000h	View
Hytronik Microwave Tri-level Control for System DALI	IP20	Tri-level	50000h	View
Hytronik Daylight Harvest PIR Sensor	IP20	Tri-level	50000h	View
Hytronik Daylight Harvest PIR Sensor	IP20	Tri-level	50000h	View
Hytronik Corridor Control Motion Sensor	IP20	Tri-level	50000h	View
Hytronik False Ceiling Version On Off Control	IP20	On-off	50000h	View
Hytronik HC-IP65 Sensor Box	IP65	None	50000h	View
Hytronik Bluetooth 1-10V Wireless Dimming Module	IP20	Push Dimming	50000h	View
Hytronik Bluetooth Wireless TRIAC Dimming Module	IP20	Push Dimming	50000h	View
