Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

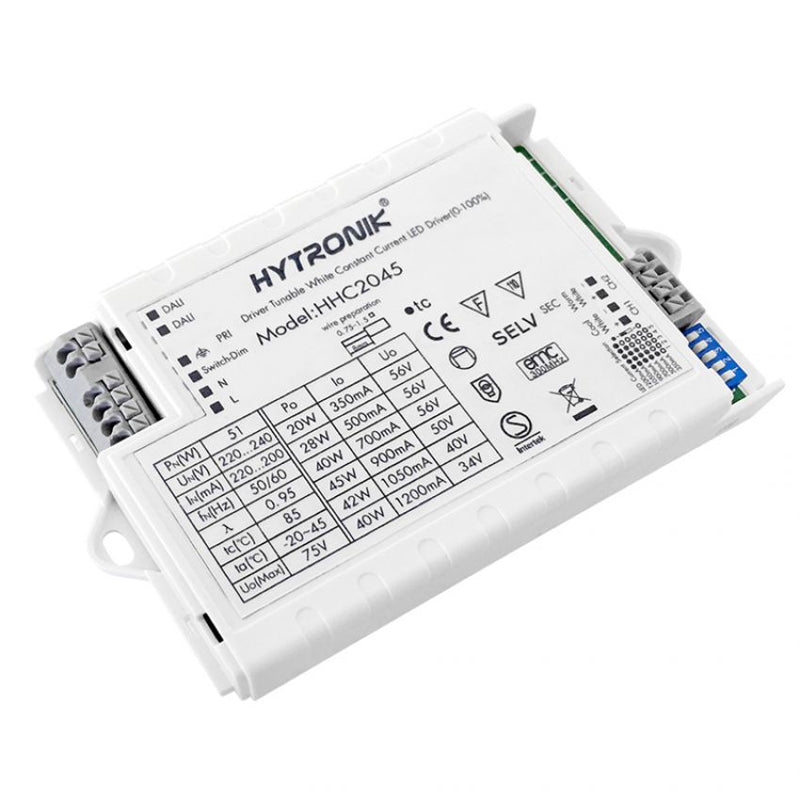

Hytronik Tunable white driver + Sensor head

45W, Dual Sensor

SKU:

HHC2045

Please for Pricing

Notify me when it's back in stock

Description

45W Tunable white driver + constant current + seperate Bluetooth sensor head + Switch-Dim + Sensor-Dim

Specifications

Brand

Hytronik
Series

Hytronik
Power Rating

45 Watt
Standards Met

CB,CE,EMC,RCM,RED,SEMKO
Operating Temperature

-20°C~45°C
Warranty

5 Year
Length

14.07 cm
Width

7.92 cm
Height

2.3 cm
Weight

1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Hytronik HHC2045 designed for?

The HHC2045 is a 45W tunable white driver with a separate Bluetooth sensor head for lighting control applications. It combines constant current operation with tunable white capability, making it relevant where both light output control and sensor-based automation are needed.

What makes the HHC2045 different from a standard LED driver?

This model combines several functions in one product: tunable white control, constant current output, a separate Bluetooth sensor head, Switch-Dim, and Sensor-Dim. That makes it more feature-rich than a basic driver that only powers LEDs without integrated dimming and sensor-related control features.

Does the HHC2045 support dimming control?

Yes. The product data lists DALI as the dimming control type, and the description also includes Switch-Dim and Sensor-Dim functionality. This makes the HHC2045 suited to projects that need more than one control approach in a single model.

Is the sensor built into the driver on the HHC2045?

No. The product description specifies a separate Bluetooth sensor head rather than an integrated sensor inside the driver body. That distinguishes this model from combined single-body driver and sensor products.

What are the main performance specifications of the HHC2045?

The HHC2045 is rated at 45W and has a stated lifetime of 50,000 hours. It also carries a 5-year warranty, which supports its use in longer-term commercial lighting projects.

What operating temperature range is listed for the HHC2045?

The specified operating temperature range is -20°C to 45°C. Buyers should check that the intended project environment stays within that range for normal product operation.

Model	IP Rating	Dimming	Lifetime
Hytronik Sensor Antenna (SAM) Options	—	Tri-level	50000h	View
Hytronik Stand Alone Sensor Antenna (SAM) Options	IP20	Tri-level	50000h	View
Hytronik Stand Alone Sensor Antenna (SAM) Options	IP20	Tri-level	50000h	View
Hytronik Stand Alone Sensor Modules	IP20	Tri-level	50000h	View
Hytronik HRC-11 Remote Control	—	None	50000h	View
Hytronik HRC-09 Remote Control	—	None	50000h	View
Hytronik High Bay Sensor with RF Transmission IP65	IP65	Tri-level	50000h	View
Hytronik High Bay HF Motion Sensor IP65	IP65	Tri-level	50000h	View
Hytronik Stand Alone High Bay DALI Sensor	IP65	DALI	50000h	View
Hytronik Stand Alone High Bay HF Sensor	IP65	DALI	50000h	View
Hytronik High Bay HF Motion Sensor IP65	IP65	Tri-level	50000h	View
Hytronik Stand Alone HF Motion Sensor	IP20	Tri-level	50000h	View
Hytronik Stand Alone HF Motion Sensor	IP20	Tri-level	50000h	View
Hytronik Stand Alone HF Sensor with Daylight Harvest	IP20	Push Dimming	50000h	View
Hytronik HF Sensor With Tri-Level Control	IP20	Tri-level	50000h	View
Hytronik Stand Alone HF Motion Sensor	IP20	On-off	50000h	View
Hytronik Stand Alone High Bay DALI Sensor	IP42	Push Dimming	50000h	View
Hytronik Stand Alone High Bay HF Sensor	IP42	Push Dimming	50000h	View
Hytronik High Bay HF Motion Sensor IP42	IP42	Tri-level	50000h	View
Hytronik PIR Independent DALI Sensor	IP20	DALI	50000h	View
Hytronik PIR System DALI Sensor	IP20	Tri-level	50000h	View
Hytronik Stand Alone PIR Sensor with Daylight Harvest Function	IP20	Push Dimming	50000h	View
Hytronik Flush Mount PIR Motion Sensor	IP20	Tri-level	50000h	View
Hytronik PIR Detached Daylight, Motion Sensor	IP20	Tri-level	50000h	View
Hytronik Photocell Advance™Daylight Harvesting PIR Sensor	—	—	50000h	View
Hytronik PIR Detached Daylight, Motion Sensor	IP20	Tri-level	50000h	View
Hytronik FM Flush Mount Daylight Harvesting PIR Sensor	IP20	None	50000h	View
Hytronik Detached Daylight Harvesting PIR Sensor	IP20	None	50000h	View
Hytronik Stand Alone Dual Independent DALI Sensor	IP65	Tri-level	50000h	View
Hytronik Dual Sense Trailing Edge Sensor	IP20	On-off	50000h	View
Hytronik Stand Alone Dual Independent DALI Sensor	IP20	Tri-level	50000h	View
Hytronik Stand Alone Dual Sense Motion Sensor	IP20	Tri-level	50000h	View
Hytronik PIR Circadian Rhythm sensor with Tunable white LED driver	—	DALI	50000h	View
Hytronik PIR Circadian Rhythm sensor with Tunable white LED driver	—	DALI	50000h	View
Hytronik Hex-drive + sensor head	IP20	Tri-level	50000h	View
Hytronik Hex-drive + sensor head	IP20	Tri-level	50000h	View
Hytronik Hex-drive + sensor head	IP20	Tri-level	50000h	View
Hytronik System DALI Control Panel (Scene Controller)	IP20	None	50000h	View
Hytronik System DALI Control Panel (Wall Switch)	IP20	None	50000h	View
Hytronik DALI Control Panel (Scene Controller)	IP20	None	50000h	View
Hytronik Push-type Trailing Edge Dimmer Switch-Dim	IP20	Push Dimming	50000h	View
Hytronik Microwave Tri-level Control for System DALI	IP20	Tri-level	50000h	View
Hytronik Daylight Harvest PIR Sensor	IP20	Tri-level	50000h	View
Hytronik Daylight Harvest PIR Sensor	IP20	Tri-level	50000h	View
Hytronik Corridor Control Motion Sensor	IP20	Tri-level	50000h	View
Hytronik False Ceiling Version On Off Control	IP20	On-off	50000h	View
Hytronik HC-IP65 Sensor Box	IP65	None	50000h	View
Hytronik Bluetooth 1-10V Wireless Dimming Module	IP20	Push Dimming	50000h	View
Hytronik Bluetooth Wireless TRIAC Dimming Module	IP20	Push Dimming	50000h	View
