Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

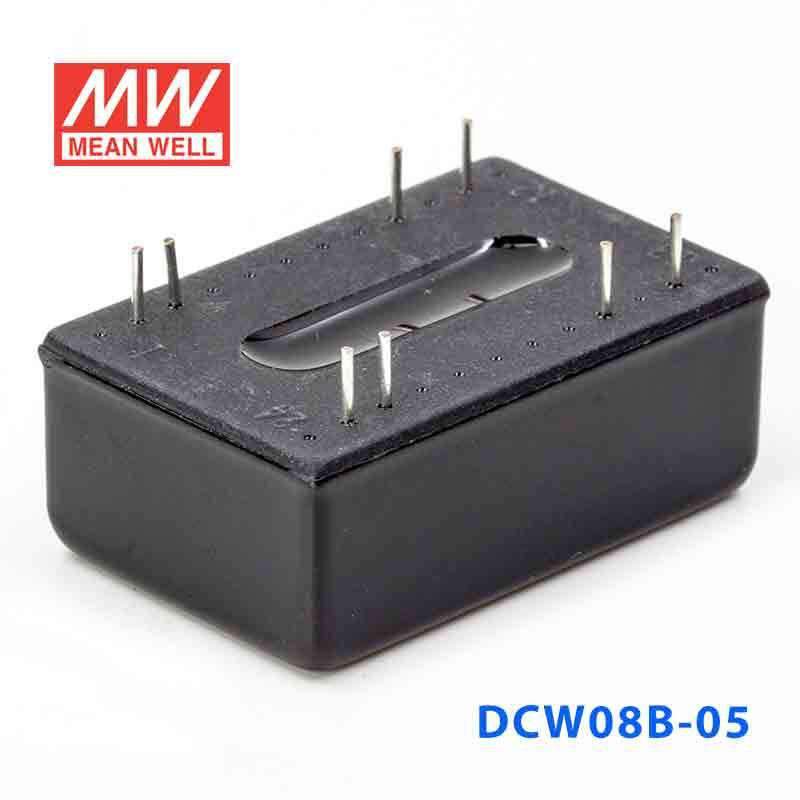

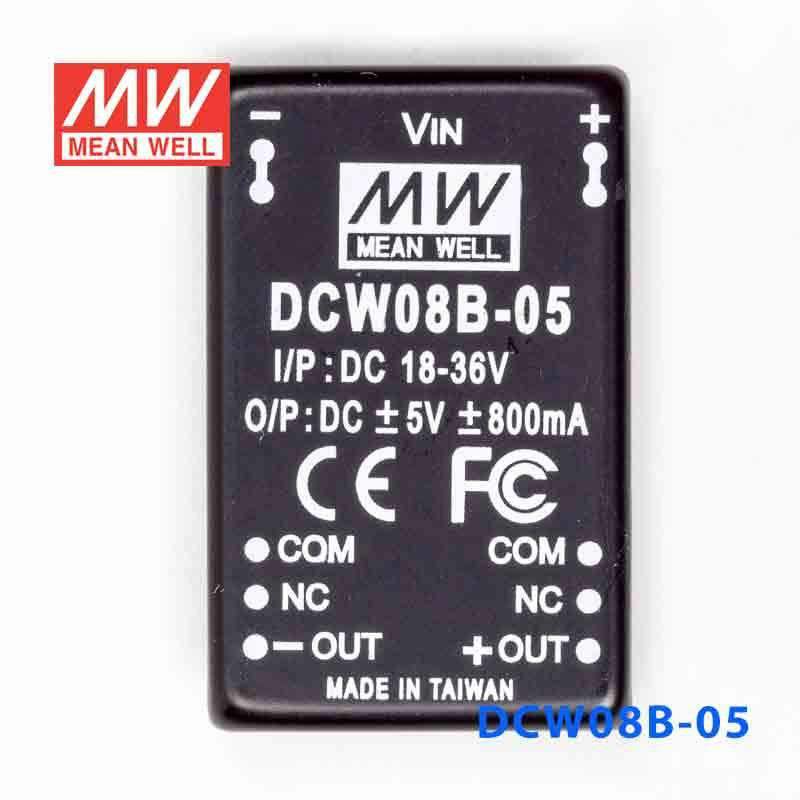

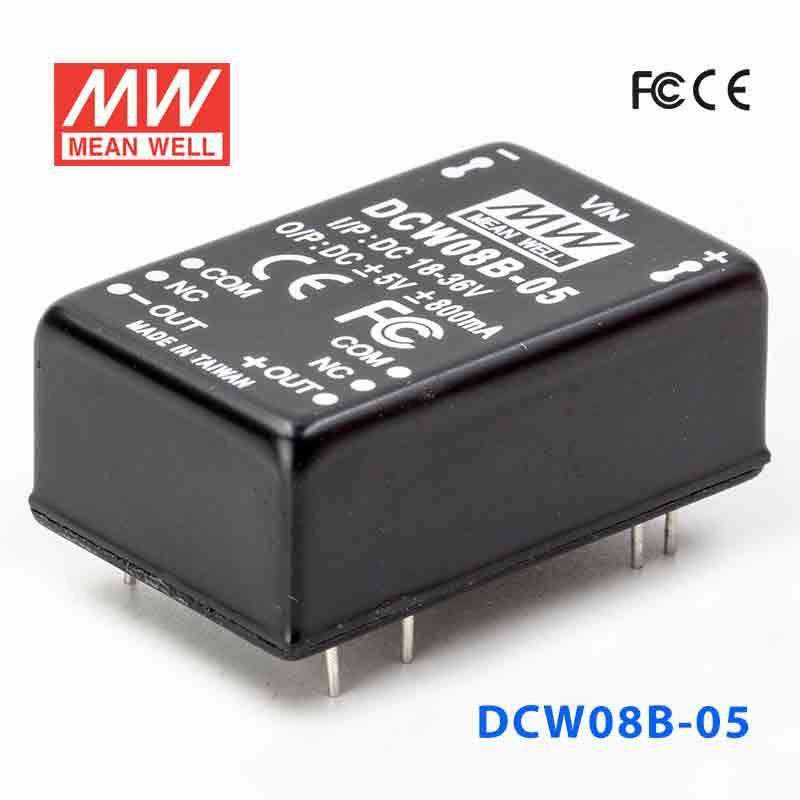

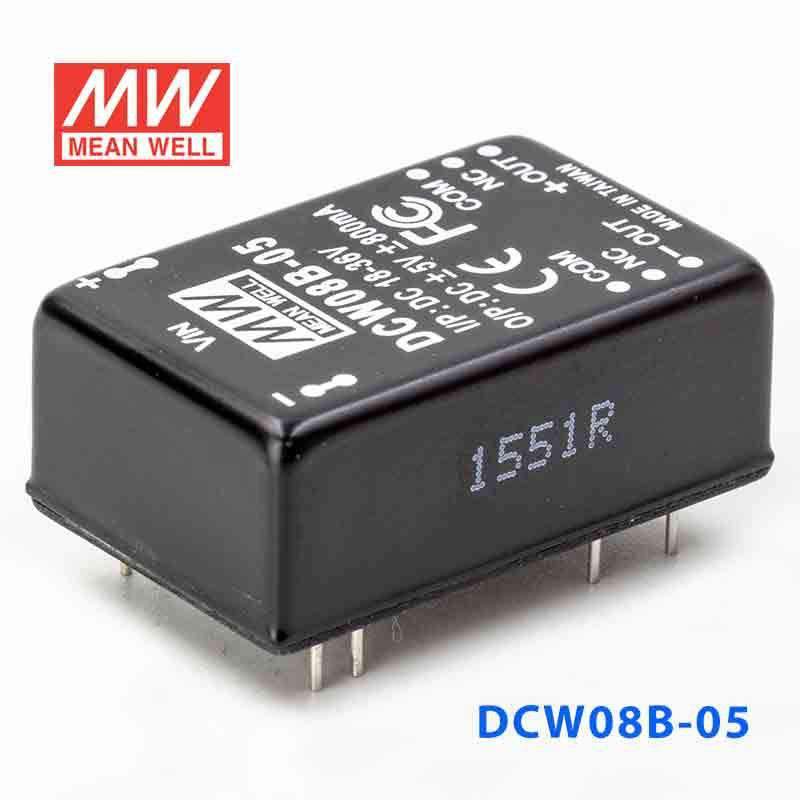

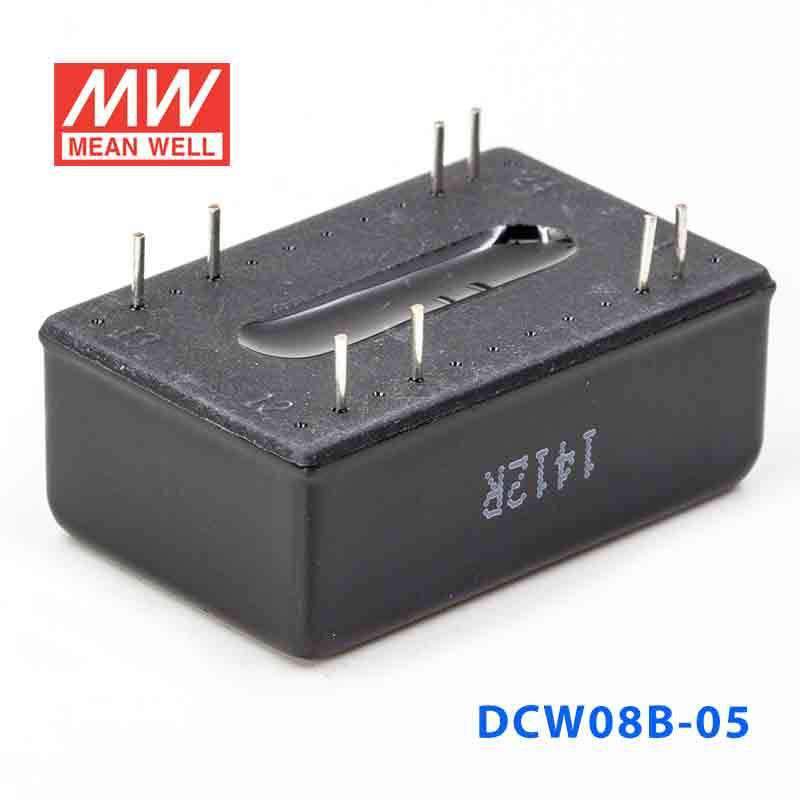

Mean Well DCW08B-05 DC-DC Converter - 8W - 18~36V in ±5V out

SKU:

DCW08B-05

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

1500VDC I / O isolation

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Five-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.5% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	150% ~ 250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Isolation capacitance	80pF (max.)
Working temperature	-40 ~ + 71°C (refer to output derating curve)
Storage temperature	-40°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / ° C (max.)
Dimension (LxWxH) (mm)	31.8 x 20.3 x 12.2mm or 1.25" x 0.80" x 0.48" inch
Case material	Five-sided shield metal case

Specifications

Brand

Mean Well
Series

DCW Series
Power Rating

8 Watt
Output Voltage

5 Volt
Rated Current

0.8 Ampere
Input Voltage

18V~36V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~71°C
Warranty

2 Year
Length

3.18 cm
Width

2.03 cm
Height

1.22 cm
Weight

0.02 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the main electrical ratings of the Mean Well DCW08B-05?

The DCW08B-05 is an 8W DC-DC converter with an 18 to 36V DC input range and a ±5V DC output. It is rated for 800mA output current and has a typical efficiency of 85%.

What kinds of applications is the DCW08B-05 suited for?

This model is suited for industrial and OEM applications that need compact 8W DC-DC conversion from a 24V-class DC input range. Its isolated design, built-in EMI filter, and shielded metal case make it a practical fit for embedded power systems and control equipment.

Can the DCW08B-05 be used in demanding temperature conditions?

Yes, the DCW08B-05 is rated for operation from -40°C to +71°C when used within its derating limits. Its storage temperature range is broader, from -40°C to +105°C, which supports use in harsh storage and transport environments.

What protection features does the DCW08B-05 include?

The unit includes short circuit protection with continuous auto-recovery and overload protection with auto-recovery. Overload protection is specified at 150% to 250%, helping protect the converter during abnormal load conditions.

How compact is the Mean Well DCW08B-05?

The DCW08B-05 measures 31.8 x 20.3 x 12.2mm, making it a very compact board-level power module. It also weighs about 0.015kg and uses a five-sided shield metal case for a small but durable form factor.

What compliance and reliability details are listed for this model?

The DCW08B-05 is listed as compliant with EN55022 Class B, FCC Part 15 Class B, and several EN61000-4 immunity standards. It is also described as having 100% full load burn-in testing and comes with a 2-year warranty.
