Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

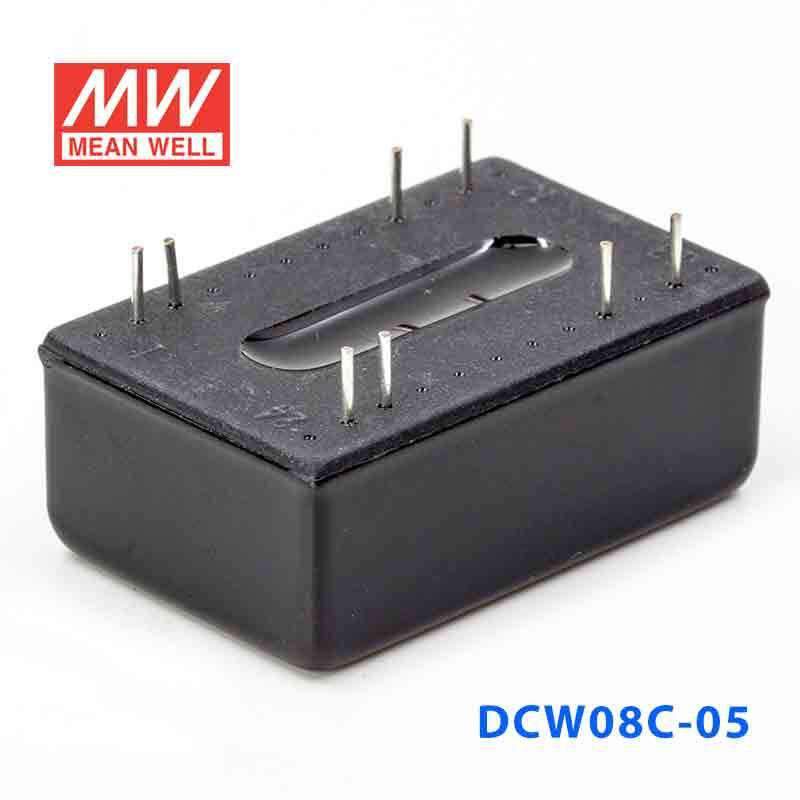

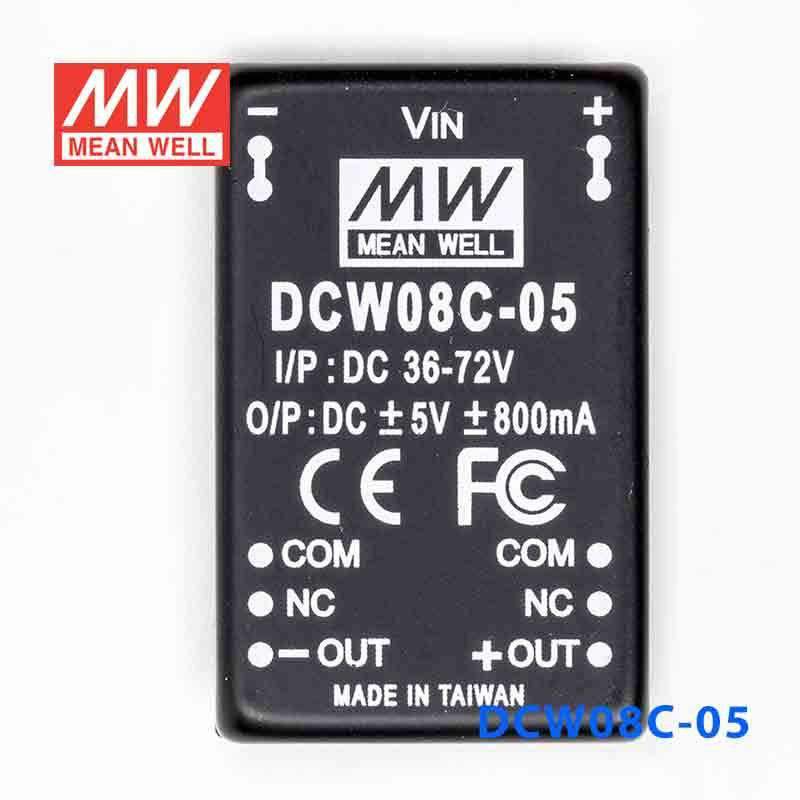

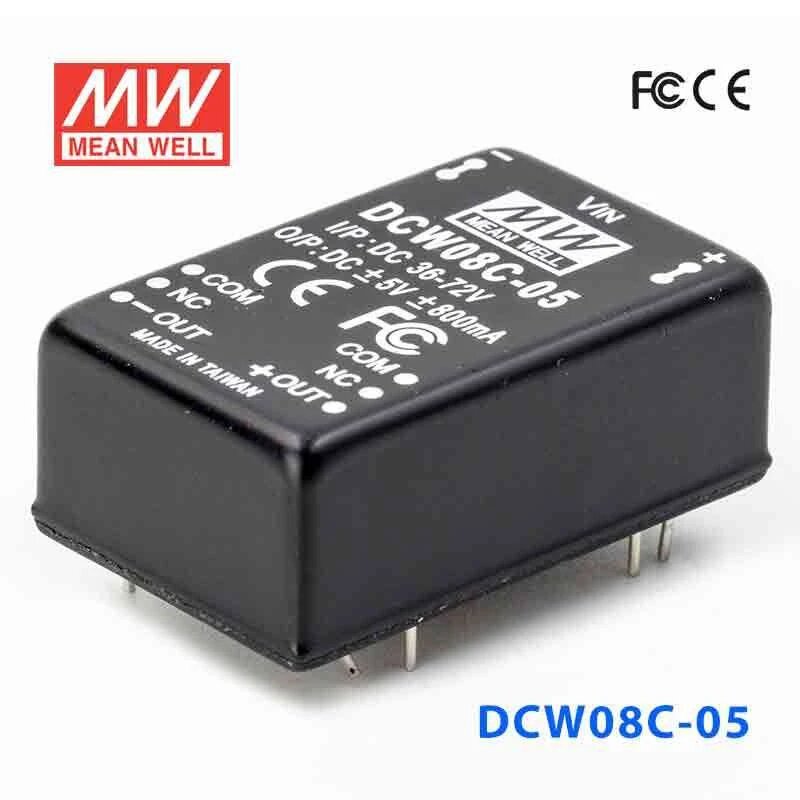

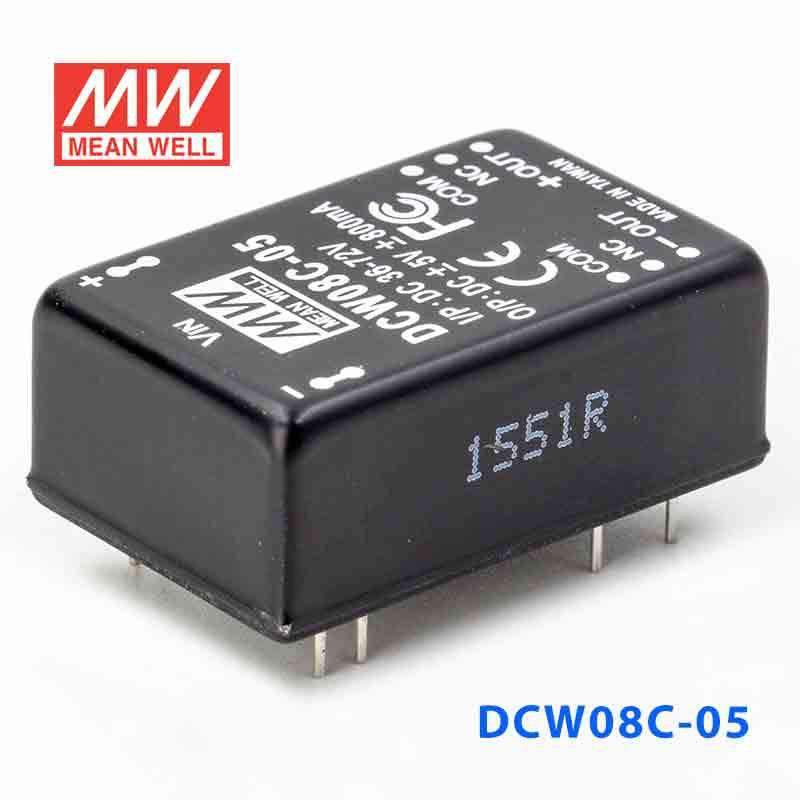

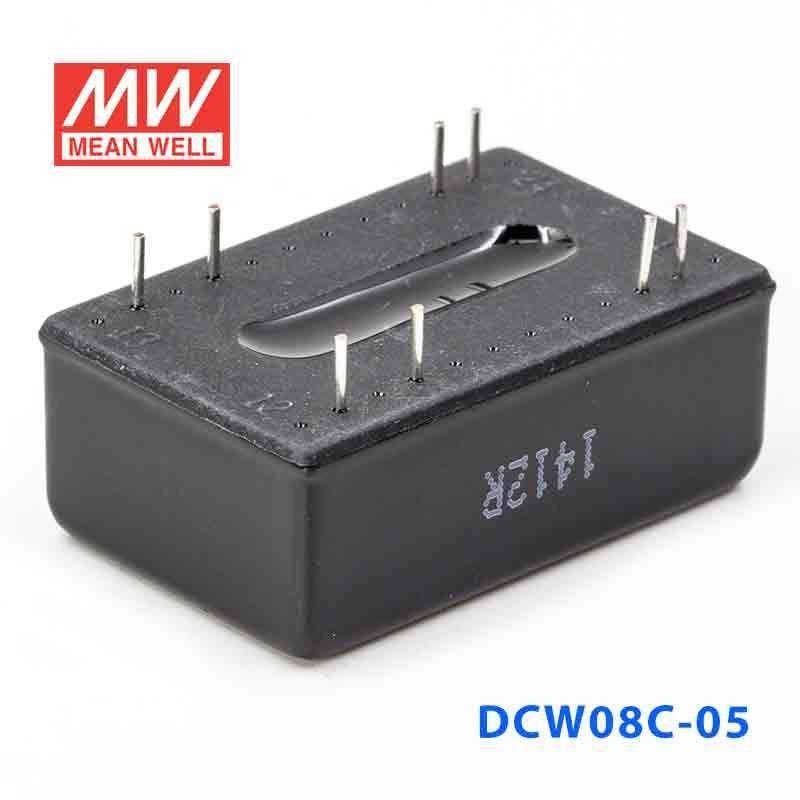

Mean Well DCW08C-05 DC-DC Converter - 8W - 36~72V in ±5V out

SKU:

DCW08C-05

Please for Pricing

Notify me when it's back in stock

Description

Features

2: 1 wide input range

1500VDC I / O isolation

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Five-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.5% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	150% ~ 250%, auto-recovery
Efficiency	85% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Isolation capacitance	80pF (max.)
Working temperature	-40 ~ + 71°C (refer to output derating curve)
Storage temperature	-40°C to + 105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / ° C (max.)
Dimension (LxWxH) (mm)	31.8 x 20.3 x 12.2mm or 1.25" x 0.80" x 0.48" inch
Case material	Five-sided shield metal case

Specifications

Brand

Mean Well
Series

DCW Series
Power Rating

8 Watt
Output Voltage

5 Volt
Rated Current

0.8 Ampere
Input Voltage

36V~72V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~71°C
Warranty

2 Year
Length

3.18 cm
Width

2.03 cm
Height

1.22 cm
Weight

0.02 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the key electrical specs of the Mean Well DCW08C-05?

The DCW08C-05 is an 8W DC-DC converter with a 36 to 72V DC input range and a ±5V output. It is rated for 800mA output current, with typical efficiency of 85%. The listing also states voltage set point accuracy up to ±2% max.

What kinds of applications is the DCW08C-05 suited for?

This model is suited for low-power DC-DC conversion in systems that need a wide 2:1 input range and isolated output. Its compact metal case, built-in EMI filter, and industrial temperature range make it a practical option for embedded, control, and distributed power applications. It is best matched to applications that fit within its 8W power rating.

How does the DCW08C-05 compare with non-isolated DC-DC converters?

The DCW08C-05 is designed as an isolated converter, unlike simpler non-isolated modules used only for basic voltage conversion. This model also includes a built-in EMI filter and a five-sided shield metal case, which can be beneficial in noise-sensitive equipment. Buyers choosing between models should weigh those protections against the relatively modest 8W output rating.

Can the DCW08C-05 be used in harsh temperature environments?

Yes, the converter is specified for operation from -40°C to +71°C, subject to the output derating curve. Its storage temperature range extends from -40°C to +105°C. That makes it better suited to demanding industrial environments than products limited to room-temperature use.

What protection and compliance features does the DCW08C-05 include?

The DCW08C-05 includes short circuit protection with continuous auto-recovery and overload protection with auto-recovery in the 150% to 250% range. It also includes a built-in EMI filter and is listed as compliant with EN55022 Class B, FCC Part 15 Class B, and multiple EN61000-4 immunity standards. These features support reliable use in electronically noisy environments.

What should I verify to confirm compatibility with my system?

The main checks are whether your system provides a 36 to 72V DC input and whether the load fits within the converter's ±5V output, 800mA current rating, and 8W total power limit. You should also confirm that the operating temperature range and compact 31.8 x 20.3 x 12.2mm size fit your design requirements. If isolation, EMC performance, or shielding matter for your application, this model includes those features.
