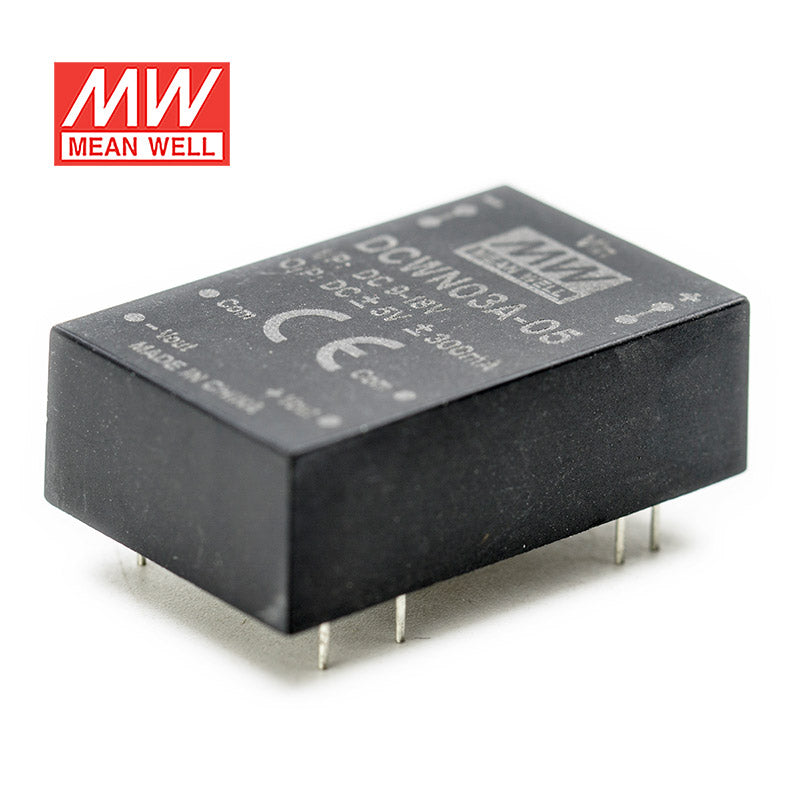

Mean Well DCWN03A-05 DC-DC Converter - 3W 9~18V DC in 5V out 300mA
Please Login for Pricing
Description
Description
The DCWN03A is a 3W Mean Well. power converter. and an input range of 4.5~9Vdc.
Key Features
- ✓ Input voltage range: 4.5~9Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Under voltage
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating3 Watt
-
Output Voltage5 Volt
-
Rated Current0.3 Ampere
-
Input Voltage9V~18V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.02 cm
-
Weight0.01 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the DCWN03A-05 typically used for?
The Mean Well DCWN03A-05 is typically used for isolated low-power DC-DC conversion where a 9-18V DC input needs to be converted to a regulated 5V output. With 3W rated power and 0.3A output current, it is suited to compact embedded, control, and auxiliary power applications.
Is the DCWN03A-05 a good fit when the source DC input is 9-18V and the load needs 5V?
Yes. The DCWN03A-05 is specifically built for 9-18V DC input and 5V output service, so it is a fit when your system uses that input range and needs a regulated 5V rail within the unit's 3W and 0.3A rating.
Can the DCWN03A-05 be used in compact isolated power designs?
Yes. The published features include a DIP24 package, 3KVDC I/O isolation, and no minimum load requirement, which makes the DCWN03A-05 suitable for compact isolated auxiliary power designs.
Is the DCWN03A-05 suitable for harsh temperature environments?
It is rated for a working temperature range of -40°C to +90°C, which is broader than many basic low-power converters. It should still be used in a protected electronic environment rather than exposed outdoor conditions.
How does the DCWN03A-05 compare with other DCWN03 input-range variants?
The DCWN03A-05 provides 3W at 5V from a 9-18V input range. Other DCWN03 variants keep the same 3W class but change the input window, such as B versions at 18-36V, C versions at 36-72V, and E versions at 4.5-9V. The main choice is the source voltage available in your system.
