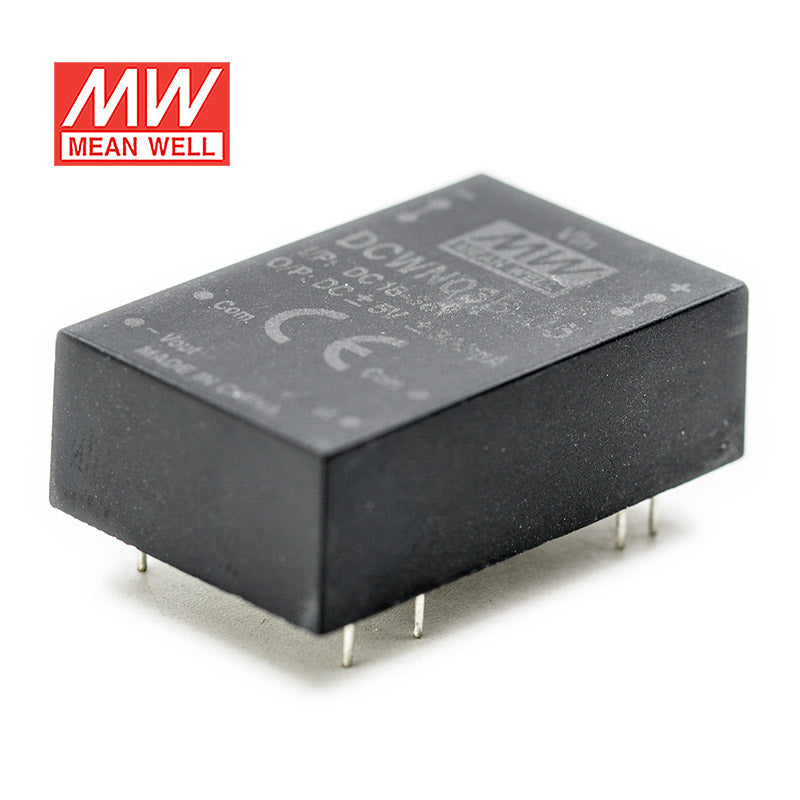

Mean Well DCWN03B-05 DC-DC Converter - 3W 18~36V DC in 5V out
Please Login for Pricing
Description
Description
Features
| DIP24 package with industry-standard pinout |
| 2:1 wide input range |
| Operating temperature range -40~+90°C |
| No minimum load required |
| Comply to BS EN/EN55032 radiated Class A without additional components |
| High efficiency up to 87% |
| Protections: Short circuit(Continuous)/Overload/Input under voltage |
| 3KVDC I/O isolation |
| 3 years warranty |
General Specification
| Voltage set point accuracy | ±1.5% (max.) |
| Line regulation | ±0.5% (max.) |
| Load regulation | Single output models:±0.5%, Dual output models:±1% |
| Overload protection | 120%~250%, auto-recovery |
| Efficiency | 87% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I/O isolation voltage | I/P-O/P:3KVDC |
| I/O isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH |
| Isolation capacitance | 250pF (max.) |
| Working temperature | -40~+90°C |
| Storage temperature | -40°C to +105°C |
| EMC | Compliance to EN55032 class A, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 85℃) |
| Dimension (LxWxH) (mm) | 31.8*20.3*10.2mm (1.25*0.8*0.4 inch) |
| Case material | Non-conductive black plastic(UL 94V-0 rated) |
Specifications
Specifications
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating3 Watt
-
Output Voltage5 Volt
-
Rated Current0.3 Ampere
-
Input Voltage18V~36V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.02 cm
-
Weight0.01 kg
