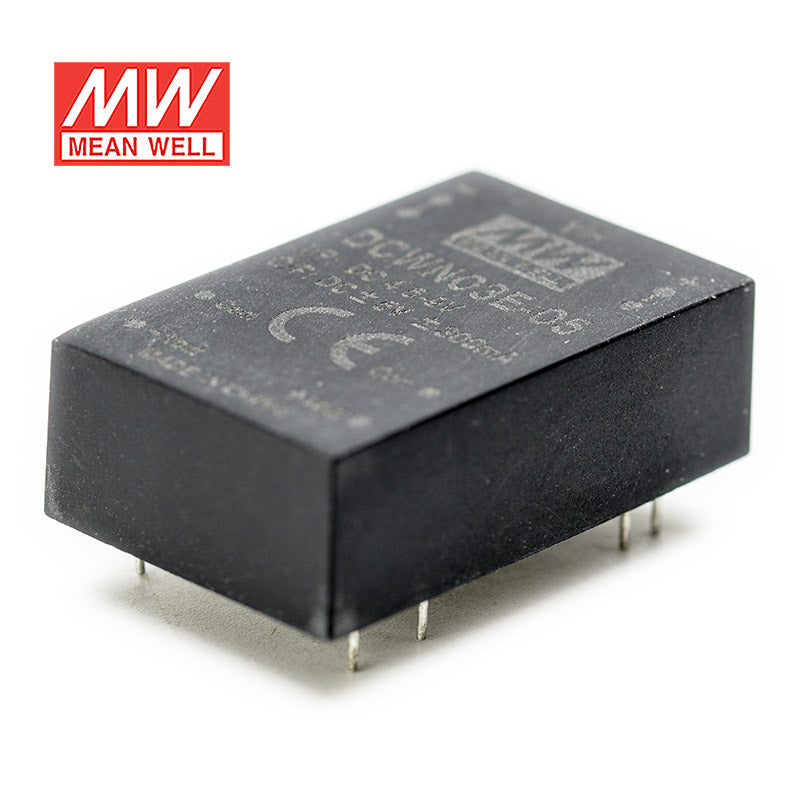

Mean Well DCWN03E-05 DC-DC Converter - 3W 4.5~9V DC in 5V out 300mA
Please Login for Pricing
Description
Description
The DCWN03E is a 3W Mean Well. power converter. and an input range of 4.5~9Vdc.
Key Features
- ✓ Input voltage range: 4.5~9Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Under voltage
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating3 Watt
-
Output Voltage5 Volt
-
Rated Current0.3 Ampere
-
Input Voltage4.5V~9V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.02 cm
-
Weight0.01 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the DCWN03E-05 typically used for?
The Mean Well DCWN03E-05 is typically used as a compact isolated DC-DC converter when a 4.5-9V DC input needs to be converted to a regulated 5V output. With 3W of rated power and 0.3A output current, it is suited to low-power control, interface, sensing, and embedded electronics applications.
Is the DCWN03E-05 a good fit for low-power 5V electronics from a low-voltage DC source?
Yes. The DCWN03E-05 provides a regulated 5V output at up to 0.3A from a 4.5-9V DC input range, making it appropriate for low-power 5V circuits when the load stays within its 3W rating.
What makes the DCWN03E-05 useful in compact embedded systems?
The DCWN03E-05 uses a DIP24 package with industry-standard pinout, requires no minimum load, and provides 3KVDC input-to-output isolation. Those features make it useful in compact, isolated, low-power embedded designs.
Is the DCWN03E-05 suitable for harsh temperature environments?
It can be used across a wide temperature range, with a published operating range of -40°C to +90°C. That makes it more flexible than many low-power converters in demanding industrial environments, provided the overall application stays within specification.
How does the DCWN03E-05 compare with related DCWN models?
The DCWN03E-05 is the 5V output version in the low-input-voltage 03E group, while the DCWN03E-12 and DCWN03E-15 provide 12V and 15V outputs at the same 3W power class. Compared with DCWN06 models, the main difference is output power, since those move up to 6W.
