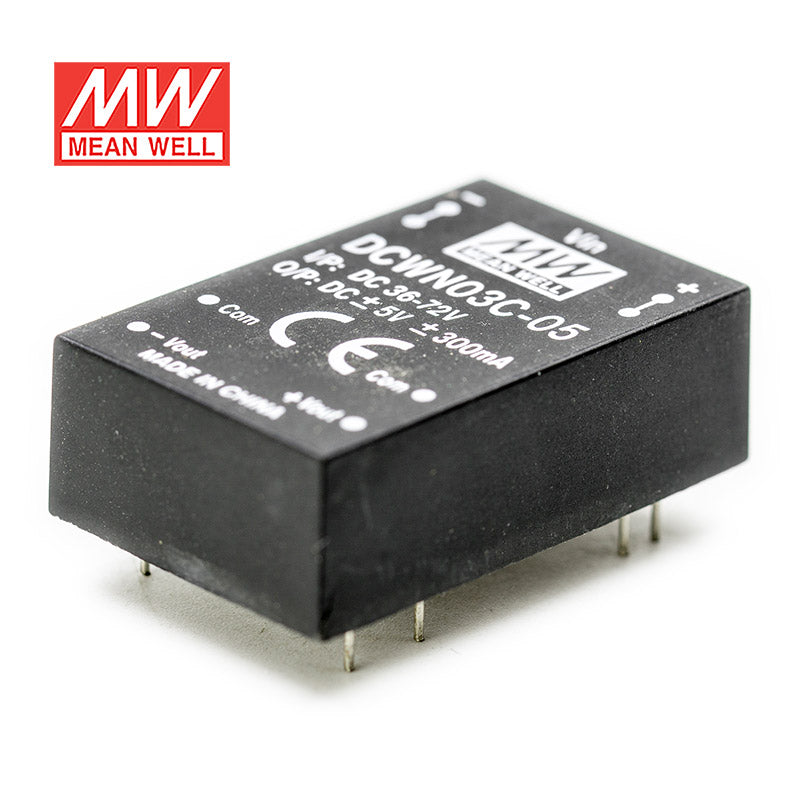

Mean Well DCWN03C-05 DC-DC Converter - 3W 36~72V DC in 5V out 300mA
Please Login for Pricing
Description
Description
The DCWN03C is a 3W Mean Well. power converter. and an input range of 4.5~9Vdc.
Key Features
- ✓ Input voltage range: 4.5~9Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Under voltage
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating3 Watt
-
Output Voltage5 Volt
-
Rated Current0.3 Ampere
-
Input Voltage36V~72V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.02 cm
-
Weight0.01 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the DCWN03C-05 typically used for?
The Mean Well DCWN03C-05 is typically used for isolated low-power DC-DC conversion where a 36-72V DC source needs to provide a regulated 5V output. With 3W rated power and 0.3A output current, it is suited to compact electronic systems built around higher-voltage DC source rails.
Is the DCWN03C-05 a good fit for 36-72V input systems that need 5V output?
Yes. The DCWN03C-05 is specifically designed for 36-72V input and 5V output service, provided the load remains within the 3W and 0.3A output rating.
Can the DCWN03C-05 be used in isolated compact power stages?
Yes. The converter's 3KVDC I/O isolation, no minimum load requirement, and compact DIP24 package make it suitable for isolated low-power auxiliary rails in compact high-input-voltage systems.
What kind of environmental range does the DCWN03C-05 support?
The DCWN03C-05 is rated for -40°C to +90°C working temperature, which supports use in demanding protected electronic environments. It should still be used inside equipment or similar protected installations.
How does the DCWN03C-05 compare with other 5V DCWN03 variants?
The DCWN03C-05 provides 3W at 5V from a 36-72V input range. Other 5V DCWN03 variants are available for 9-18V, 18-36V, and 4.5-9V inputs. The difference is the source voltage range the converter is designed to accept.
