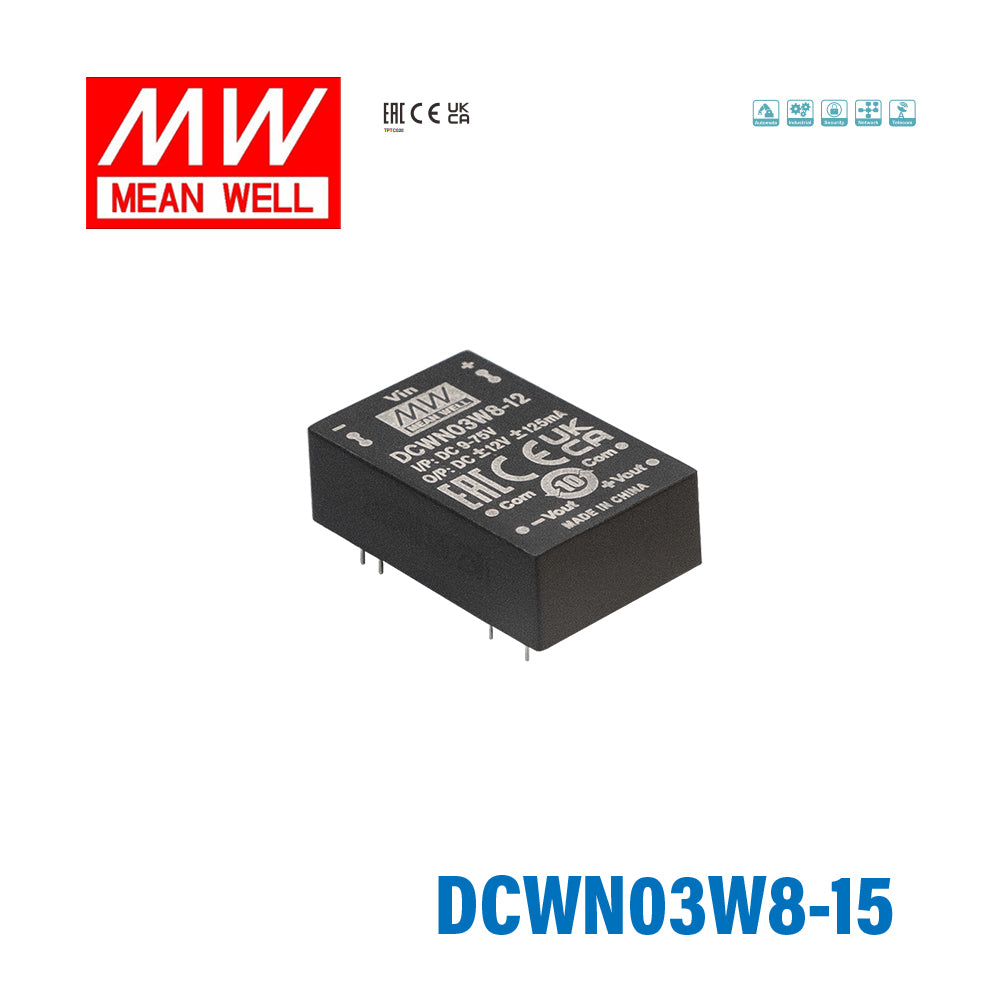

Mean Well DCWN03W8-15 DC-DC Converter - 3W 9~75V DC in ±15V out 100mA

8:1(9~75VDC) ultra-wide input rangeno minimum load required3KVdc I/O isolation

SKU DCWN03W8-15

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

DCWN03W8-15 is the ±15V output model of this series: rated power 3W, typical efficiency 81%.

SCWN03W8 and DCWN03W8 series are 3W isolated and regulated module type DC-DC converter with DIP24 package. It features intermationaional standard pins, a high efficiency up to 84%, wide working temperature range -40~+95℃, 3KVdc I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class B without additional components, continuous-mode short circuit protection, 8:1(9~75V) ultra-wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP24 package with industry standard pinout
8:1(9~75Vdc) ultra-wide input range
Operating temperature range -40 ~ +95℃
No minimum load required
Comply to BS EN/EN55032 radiated Class B without additional components
High efficiency up to 84%
Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
Remote ON/OFF control (Optional)
3KVdc I/O isolation
3 years warranty

Specifications

DCWN03W8-15Specifications from the official datasheet (2025-07-17 edition)Download datasheet PDF

INPUT

INPUT VOLTAGE (RANGE): Nominal 12V, 24V,36V,48V,72V (9 ~ 75V)
INPUT CURRENT NO LOAD: 10mA
INPUT CURRENT FULL LOAD: 78mA
VOLTAGE RANGE: 9~75Vdc
SURGE VOLTAGE (100ms max.): 100Vdc
FILTER: Pi type
PROTECTION (Typ.): 1A Fast-Acting Type

OUTPUT

OUTPUT VOLTAGE: ±15V
OUTPUT CURRENT: ±100mA
EFFICIENCY (TYP.): 81%
CAPACITOR LOAD (MAX.): *200μF (for each output)
VOLTAGE ACCURACY: ±2% for 3.3Vo, ±1.5% for others
RATED POWER: 3W
RIPPLE & NOISE^Note.2: 100mVp-p
LINE REGULATION^Note.3: ±0.5%
LOAD REGULATION^Note.4: Single output models:±0.5% ; Dual output models:±1.0%
CROSS DEGUIATION: ±5% @ 25%~100% Load only for dual output
SWITCHING FREQUENCY (Typ.): 200KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 110 ~ 230% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: Protection type : Clamp by zener diode
UNDER VOLTAGE LOCKOUT (Typ.) Start-up voltage: 8.8Vdc
UNDER VOLTAGE LOCKOUT (Typ.) Shutdown voltage: 8Vdc

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +95℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +115℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05% / ℃ max. (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVdc
ISOLATION RESISTANCE: I/P-O/P:1000M Ohms / 500Vdc / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 1000pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A without additional components Class B with additional components
Radiated BS EN/EN55032 Class B without additional components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 2, 0.5KV
Surge BS EN/EN61000-4-5 Level 2, 1KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class A without additional components Class B with additional components
Radiated	BS EN/EN55032	Class B without additional components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 2, 0.5KV
Surge	BS EN/EN61000-4-5	Level 2, 1KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)

OTHERS

MTBF (Typ.): 2500Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 31.8*20.3*10.2mm (1.25*0.8*0.4 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 12.5g ; 10pcs/per tube, 600pcs/60 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input (48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 0% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies."(as available on http://www.meanwell.com)

Technical drawings

DCWN03W8-15 DIMENSION (L*W*H) 31.8*20.3*10.2mm — DIMENSION (L*W*H) 31.8*20.3*10.2mm

DCWN03W8-15 Derating Curve — Derating Curve

DCWN03W8-15 Pin Assignment — Pin Assignment

Typical applications

Downloads

Datasheet1

DCWN03W8-15 datasheetSCWN03W8_DCWN03W8_Spec_Sheet.pdf · 2025-07-17 edition PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the main use case for the Mean Well DCWN03W8-15?

The DCWN03W8-15 is a 3W isolated DC-DC converter designed for systems that need a very wide DC input range and dual output rails. It is suited to industrial, telecom, transport, and distributed power applications where input voltage can vary from 9 to 75V DC.

What input and output voltages does this converter support?

This model accepts an ultra-wide 9 to 75V DC input range, covering nominal 12V, 24V, 36V, 48V, and 72V systems. Its output is ±15V DC, making it suitable for equipment that requires positive and negative supply rails from one compact module.

How does the DCWN03W8-15 compare with narrower-input DC-DC converters?

A key differentiator of the DCWN03W8-15 is its 8:1 input range, which is much broader than many standard DC-DC converters. That wider range helps one model cover multiple common DC bus voltages instead of requiring different versions for different nominal inputs.

Is the DCWN03W8-15 suitable for harsh temperature environments?

Yes. This model is rated for operation from -40 to +95 degrees C, which makes it appropriate for demanding environments with wide temperature variation. Buyers should still consider derating requirements at higher temperatures, as noted in the product specification.

What protection features are built into this DC-DC converter?

The DCWN03W8-15 includes short circuit protection with automatic recovery, overload protection, over-voltage protection, and under-voltage lockout. Overload protection works in hiccup mode and recovers automatically once the fault condition is removed.

Does this module offer isolation and EMI-related compliance features?

Yes. The DCWN03W8-15 provides 3KV DC input-to-output isolation, which is useful where galvanic isolation is required in the power architecture. It also complies with BS EN/EN55032 radiated Class B without additional components, which is a helpful consideration for equipment designers evaluating EMC performance.
