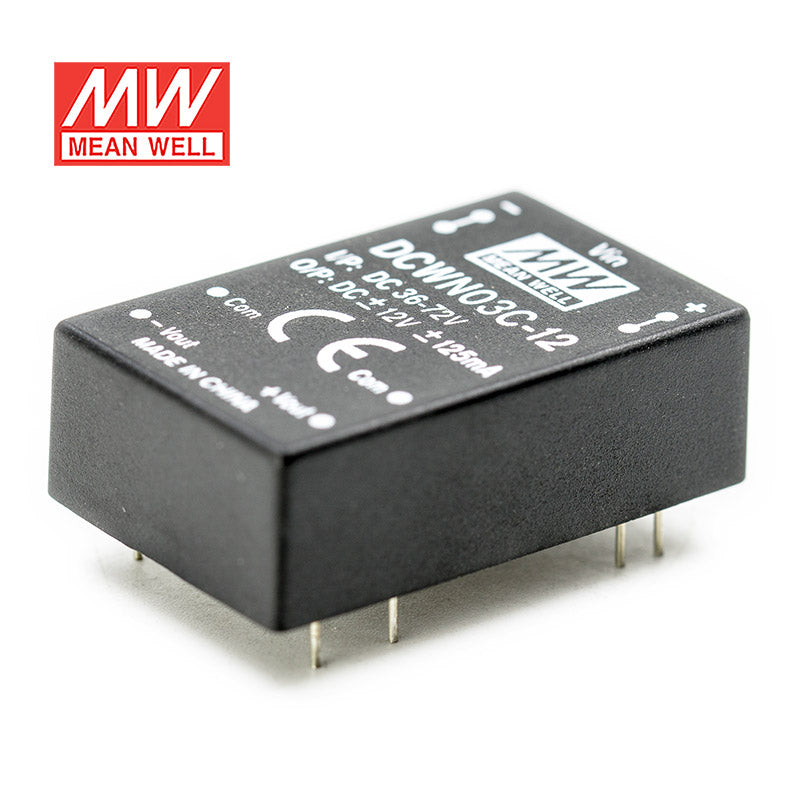

Mean Well DCWN03C-12 DC-DC Converter - 3W 36~72V DC in 12V out
Please Login for Pricing
Description
Description
Features
| DIP24 package with industry-standard pinout |
| 2:1 wide input range |
| Operating temperature range -40~+90°C |
| No minimum load required |
| Comply to BS EN/EN55032 radiated Class A without additional components |
| High efficiency up to 87% |
| Protections: Short circuit(Continuous)/Overload/Input under voltage |
| 3KVDC I/O isolation |
| 3 years warranty |
General Specification
| Voltage set point accuracy | ±1.5% (max.) |
| Line regulation | ±0.5% (max.) |
| Load regulation | Single output models:±0.5%, Dual output models:±1% |
| Overload protection | 120%~250%, auto-recovery |
| Efficiency | 87% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I/O isolation voltage | I/P-O/P:3KVDC |
| I/O isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH |
| Isolation capacitance | 250pF (max.) |
| Working temperature | -40~+90°C |
| Storage temperature | -40°C to +105°C |
| EMC | Compliance to EN55032 class A, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 85℃) |
| Dimension (LxWxH) (mm) | 31.8*20.3*10.2mm (1.25*0.8*0.4 inch) |
| Case material | Non-conductive black plastic(UL 94V-0 rated) |
Specifications
Specifications
-
BrandMean Well
-
SeriesDCWN Series
-
Power Rating3 Watt
-
Output Voltage12 Volt
-
Rated Current0.12 Ampere
-
Input Voltage36V~72V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.02 cm
-
Weight0.01 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the DCWN03C-12 typically used for?
The Mean Well DCWN03C-12 is typically used for isolated low-power DC-DC conversion from a 36-72V DC source to a 12V output. With 3W rated power and 0.125A output current, it is suited to compact systems that need an isolated 12V rail from a higher-voltage DC source.
Is the DCWN03C-12 a good fit when the source voltage is 36-72V and the load needs 12V?
Yes. The DCWN03C-12 is designed for exactly that conversion profile, provided the output demand remains within its 3W and 0.125A rating.
Can the DCWN03C-12 be used for compact isolated 12V support power?
Yes. Its published features include 3KVDC I/O isolation, a DIP24 package, and no minimum load requirement, which make it suitable for isolated low-power 12V auxiliary rails in compact designs.
Is the DCWN03C-12 suitable for broad temperature conditions?
It is rated for -40°C to +90°C working temperature, which supports use in demanding protected electronic environments. It should still be used inside equipment or similar protected installations rather than exposed outdoor use.
How does the DCWN03C-12 compare with the other DCWN03 12V options?
The DCWN03C-12 provides 3W at 12V from a 36-72V input range. Other 12V DCWN03 variants serve 9-18V, 18-36V, and 4.5-9V inputs. The choice mainly depends on the source-side voltage range available in your system.
