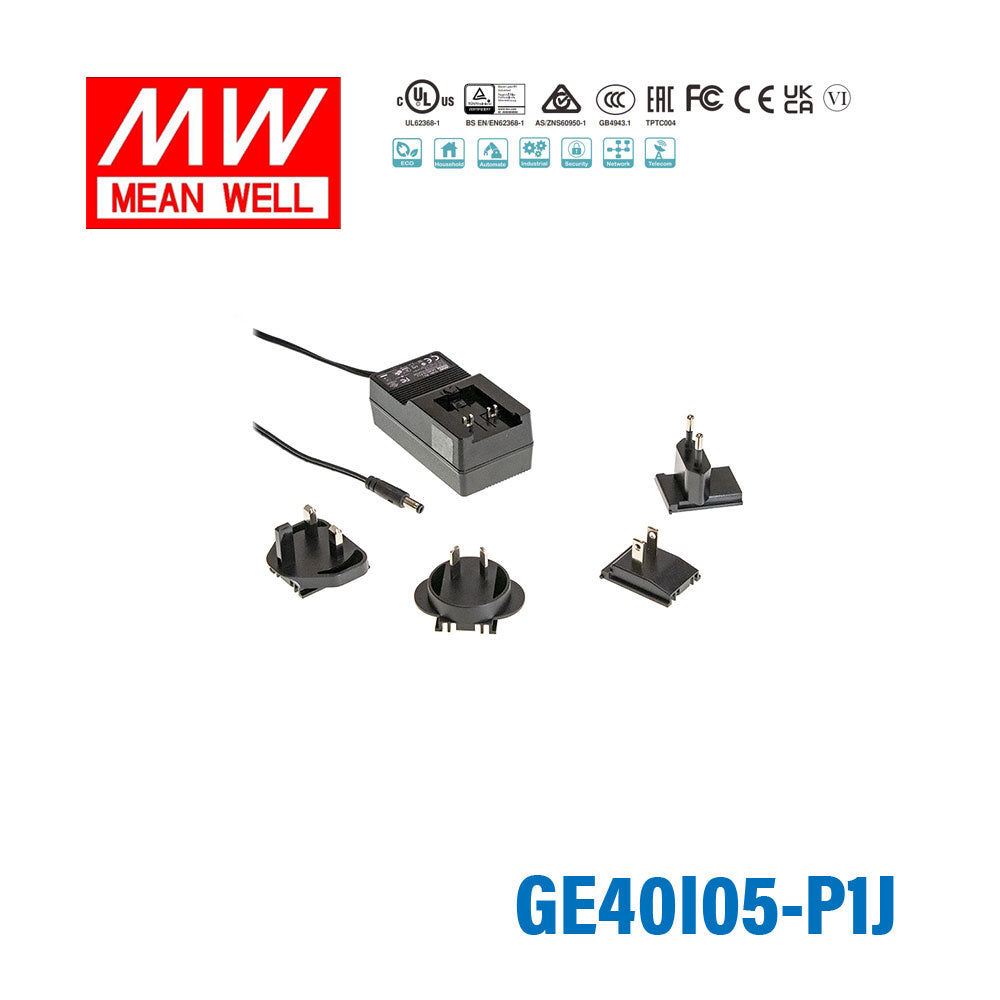

Mean Well GE40I05-P1J Power Supply 20W 5V
Please Login for Pricing
Description
Description
The GE40I05 is a 40W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ℃ , 10 ~ 95% RH -20 ~ +85 ± ℃ 0.03% / 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes (0 ~ 40 ) ℃ UL62368-1, CSA C22.2, TUV EN62368-1, AS/NZS 60950.1, CCC GB4943.1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGE Series
-
Power Rating20 Watt
-
Output Voltage5 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~264V
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length9.4 cm
-
Width4.84 cm
-
Height4 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GE40I05-P1J for a 5V embedded board, SBC, or industrial controller?
Yes, if the device requires constant-voltage 5V DC and the load stays within 4A and 20W. That makes it suitable for many 5V embedded and control applications, but not for loads that exceed those limits.
Is this power supply suitable for 5V USB-powered style electronics used in industrial or IT environments?
It can be suitable for 5V electronics that need a regulated constant-voltage source and draw no more than 4A total. The available output is 5V with 20W maximum power.
Can this unit power a 5V sensor hub, gateway, or communications module?
Yes, for 5V gateways, hubs, or communications devices whose total demand remains at or below 4A and 20W. It should only be paired with equipment specified for 5V constant-voltage input.
Would this work for a compact 5V automation or monitoring device in a wide-temperature area?
It may be a good fit when the equipment needs 5V DC and the environment stays within -30°C to +70°C. That operating range is broader than the other products listed here, while output remains limited to 20W and 4A.
Is the GE40I05-P1J better for indoor environments or exposed outdoor use?
The published operating temperature range is -30°C to +70°C, which supports use in a wider range of ambient conditions. However, no IP rating is listed, so the specs do not confirm suitability for direct outdoor exposure.
Other GE40 Models
8 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well GE40I48-P1J Power Supply 40W 48V | 40W | 48V | 0.83A | View |
| Mean Well GE40I36-P1J Power Supply 40W 36V | 40W | 36V | 1.11A | View |
| Mean Well GE40I24-P1J Power Supply 40W 24V | 40W | 24V | 1.67A | View |
| Mean Well GE40I18-P1J Power Supply 39.6W 18V | 39.6W | 18V | 2.2A | View |
| Mean Well GE40I15-P1J Power Supply 40.5W 15V | 40.5W | 15V | 2.7A | View |
| Mean Well GE40I12-P1J Power Supply 39.6W 12V | 39.6W | 12V | 3.3A | View |
| Mean Well GE40I09-P1J Power Supply 29.7W 9V | 29.7W | 9V | 3.3A | View |
| Mean Well GE40I07-P1J Power Supply 20W 7.5V | 20W | 7.5V | 2.66A | View |
