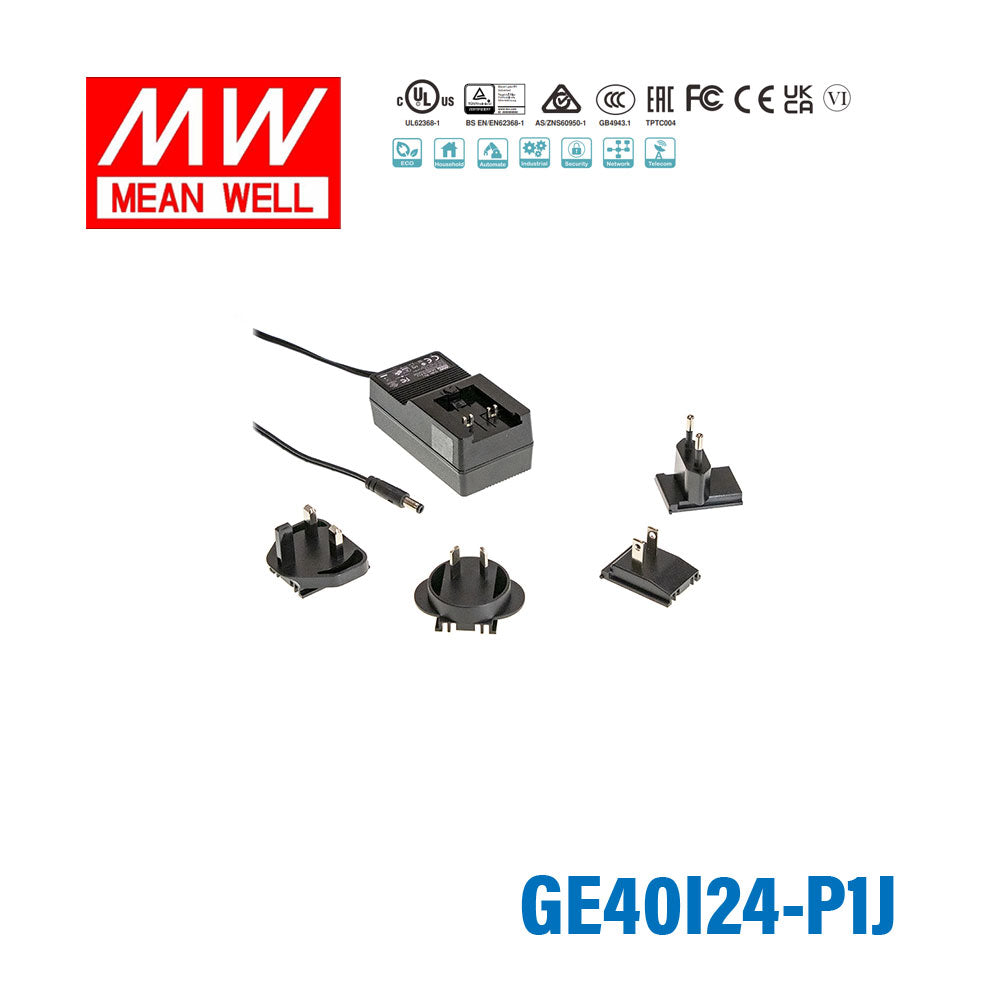

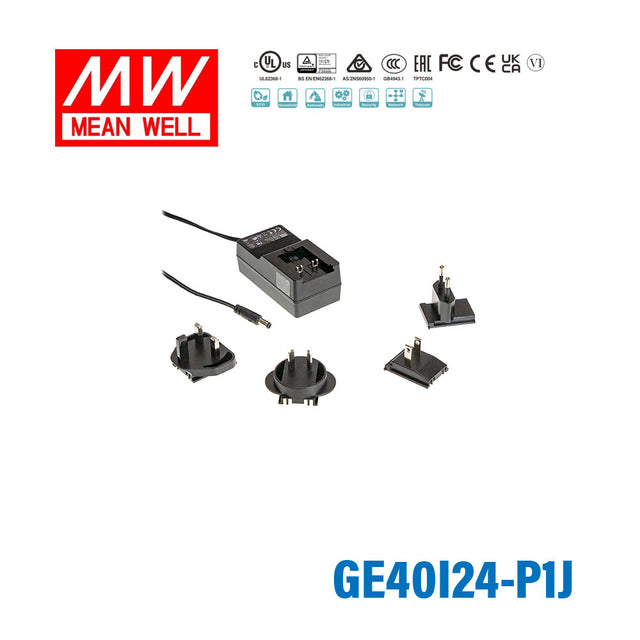

Mean Well GE40I24-P1J Power Supply 40W 24V
Please Login for Pricing
Description
Description
The GE40I24 is a 40W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ℃ , 10 ~ 95% RH -20 ~ +85 ± ℃ 0.03% / 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes (0 ~ 40 ) ℃ UL62368-1, CSA C22.2, TUV EN62368-1, AS/NZS 60950.1, CCC GB4943.1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGE Series
-
Power Rating40 Watt
-
Output Voltage24 Volt
-
Rated Current1.67 Ampere
-
Input Voltage90V~264V
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length9.4 cm
-
Width4.84 cm
-
Height4 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GE40I24-P1J to power a 24V PLC, HMI, or small automation controller?
Yes, this is a 24V constant-voltage power supply rated for 40W and up to 1.67A. It fits compact industrial or automation electronics that require 24V DC and stay within that power and current limit.
Is the GE40I24-P1J suitable for a 24V sensor hub or embedded control box?
It can be used for a 24V sensor or embedded control assembly when the total load does not exceed 40W or 1.67A. The wide 90-264VAC input also makes it practical where AC input conditions vary across sites.
Can this 24V 40W supply run a small 24V networking or IT device?
It is suitable for 24V IT or communications equipment that expects constant-voltage DC input and draws no more than 1.67A. Buyers should match the device's required output voltage to 24V and keep total demand within 40W.
Would the GE40I24-P1J work for a compact 24V industrial display or operator panel?
Yes, it is appropriate for compact 24V operator interfaces or control panels if their DC input requirement is 24V and their load stays under 40W. Its constant-voltage output is intended for equipment designed around a fixed 24V supply.
Is the GE40I24-P1J intended for indoor or outdoor environments?
No IP rating is listed in the provided specifications, so this model is best treated as a power supply for protected indoor use rather than exposed outdoor locations. Its operating temperature range is -30°C to +70°C, but temperature capability does not by itself indicate weather resistance.
Other GE40 Models
8 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well GE40I05-P1J Power Supply 20W 5V | 20W | 5V | 4A | View |
| Mean Well GE40I48-P1J Power Supply 40W 48V | 40W | 48V | 0.83A | View |
| Mean Well GE40I36-P1J Power Supply 40W 36V | 40W | 36V | 1.11A | View |
| Mean Well GE40I18-P1J Power Supply 39.6W 18V | 39.6W | 18V | 2.2A | View |
| Mean Well GE40I15-P1J Power Supply 40.5W 15V | 40.5W | 15V | 2.7A | View |
| Mean Well GE40I12-P1J Power Supply 39.6W 12V | 39.6W | 12V | 3.3A | View |
| Mean Well GE40I09-P1J Power Supply 29.7W 9V | 29.7W | 9V | 3.3A | View |
| Mean Well GE40I07-P1J Power Supply 20W 7.5V | 20W | 7.5V | 2.66A | View |
