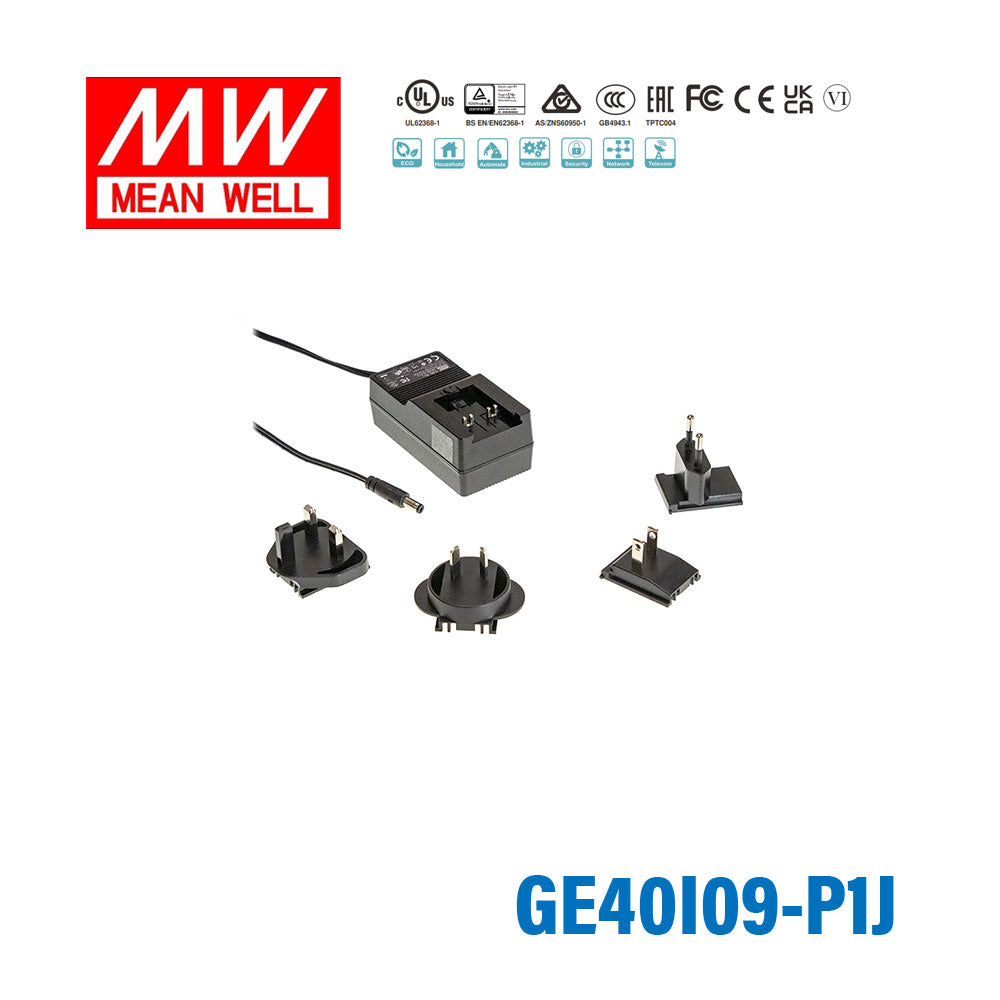

Mean Well GE40I09-P1J Power Supply 29.7W 9V
Please Login for Pricing
Description
Description
The GE40I09 is a 40W Mean Well power converter.
Key Features
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: ℃ , 10 ~ 95% RH -20 ~ +85 ± ℃ 0.03% / 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes (0 ~ 40 ) ℃ UL62368-1, CSA C22.2, TUV EN62368-1, AS/NZS 60950.1, CCC GB4943.1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGE Series
-
Power Rating29.7 Watt
-
Output Voltage9 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~264V
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length9.4 cm
-
Width4.84 cm
-
Height4 cm
-
Weight0.2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GE40I09-P1J for a 9V embedded system or control board?
Yes, if the equipment is designed for a 9V constant voltage input. This power supply delivers 9V with up to 29.7W and 3.3A, which suits many compact embedded systems and control boards in that range.
Is this power supply a good fit for 9V industrial electronics?
It is intended for 9V constant voltage loads, so it can support industrial electronics that call for 9V DC. With 29.7W and 3.3A available, it fits moderate-power devices rather than larger industrial assemblies.
Can the GE40I09-P1J power a small IT or telecom accessory that needs 9V DC?
It can be suitable for small IT or telecom accessories that require a regulated 9V supply. The main checks are that the device matches the 9V output and stays within the 29.7W and 3.3A limits.
Would this model work for bench or test equipment that runs on 9V?
For bench or test equipment designed for 9V constant voltage input, this unit can be a practical option. Its output capacity is 29.7W at 3.3A, so it is appropriate for lighter-duty 9V loads within that rating.
Is the GE40I09-P1J appropriate for indoor or exposed environments?
The operating temperature range of -30°C to +70°C supports use in both cold and warm conditions. The product data provided does not include an IP rating, so exposed outdoor suitability should not be assumed from these specs alone.
Other GE40 Models
8 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well GE40I05-P1J Power Supply 20W 5V | 20W | 5V | 4A | View |
| Mean Well GE40I48-P1J Power Supply 40W 48V | 40W | 48V | 0.83A | View |
| Mean Well GE40I36-P1J Power Supply 40W 36V | 40W | 36V | 1.11A | View |
| Mean Well GE40I24-P1J Power Supply 40W 24V | 40W | 24V | 1.67A | View |
| Mean Well GE40I18-P1J Power Supply 39.6W 18V | 39.6W | 18V | 2.2A | View |
| Mean Well GE40I15-P1J Power Supply 40.5W 15V | 40.5W | 15V | 2.7A | View |
| Mean Well GE40I12-P1J Power Supply 39.6W 12V | 39.6W | 12V | 3.3A | View |
| Mean Well GE40I07-P1J Power Supply 20W 7.5V | 20W | 7.5V | 2.66A | View |
