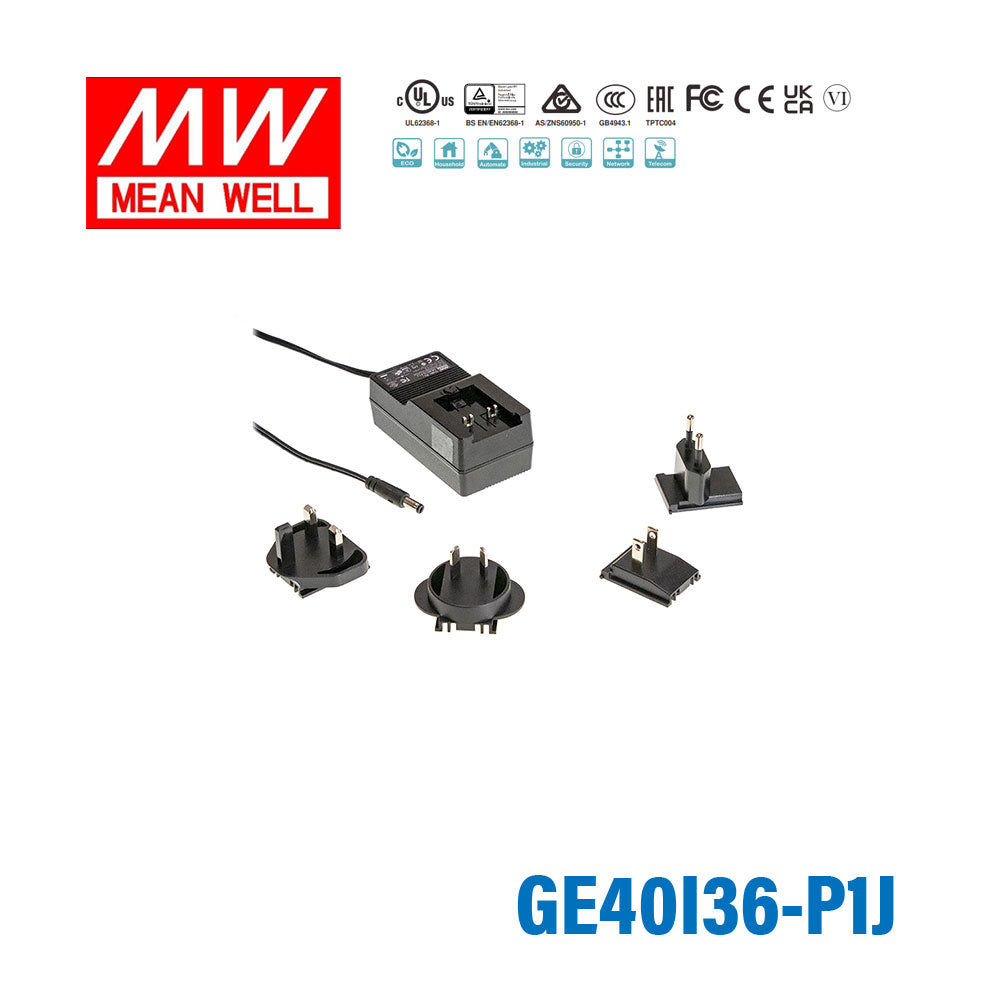

Mean Well GE40I36-P1J Power Supply 40W 36V

SKU:

GE40I36-P1J

Please for Pricing

Notify me when it's back in stock

Description

The GE40I36 is a 40W Mean Well power converter.

Key Features

✓ Protections: Overload / Over voltage
✓ Safety approvals: ℃ , 10 ~ 95% RH -20 ~ +85 ± ℃ 0.03% / 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes (0 ~ 40 ) ℃ UL62368-1, CSA C22.2, TUV EN62368-1, AS/NZS 60950.1, CCC GB4943.1, EAC TP TC 004
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

GE Series
Power Rating

40 Watt
Output Voltage

36 Volt
Rated Current

1.11 Ampere
Input Voltage

90V~264V
Standards Met

CCC,CE,EAC,FCC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

2 Year
Length

9.4 cm
Width

4.84 cm
Height

4 cm
Weight

0.2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GE40I36-P1J with a 36V industrial controller or actuator system?

Yes, if the equipment requires 36V constant-voltage input and the total draw stays within 40W and 1.11A. It is intended for electronics designed around a fixed 36V DC supply rather than current-driven loads.

Is this 36V 40W power supply a fit for embedded equipment that runs on 36V DC?

It is suitable for embedded or industrial devices that specifically call for 36V DC and do not exceed 1.11A. The supply provides constant-voltage output, so the connected load should be designed for regulated 36V input.

Can the GE40I36-P1J power a small 36V automation module from standard AC mains?

Yes, it accepts 90-264VAC input and converts it to 36V DC at up to 40W. That makes it appropriate for small automation modules that need 36V DC and stay within 1.11A output current.

Would this model work for a compact 36V industrial instrument or monitoring device?

It can work for compact industrial instruments or monitoring electronics that specify 36V DC input. The connected load must remain at or below 40W and 1.11A for proper sizing.

Can the GE40I36-P1J be used in outdoor or washdown areas?

The provided specs do not list an IP rating, so it should be considered for protected indoor environments rather than exposed outdoor or washdown use. Its operating temperature range is -30°C to +70°C, but enclosure protection is not defined here.

Model	Power	Voltage	Current
Mean Well GE40I05-P1J Power Supply 20W 5V	20W	5V	4A	View
Mean Well GE40I48-P1J Power Supply 40W 48V	40W	48V	0.83A	View
Mean Well GE40I24-P1J Power Supply 40W 24V	40W	24V	1.67A	View
Mean Well GE40I18-P1J Power Supply 39.6W 18V	39.6W	18V	2.2A	View
Mean Well GE40I15-P1J Power Supply 40.5W 15V	40.5W	15V	2.7A	View
Mean Well GE40I12-P1J Power Supply 39.6W 12V	39.6W	12V	3.3A	View
Mean Well GE40I09-P1J Power Supply 29.7W 9V	29.7W	9V	3.3A	View
Mean Well GE40I07-P1J Power Supply 20W 7.5V	20W	7.5V	2.66A	View
