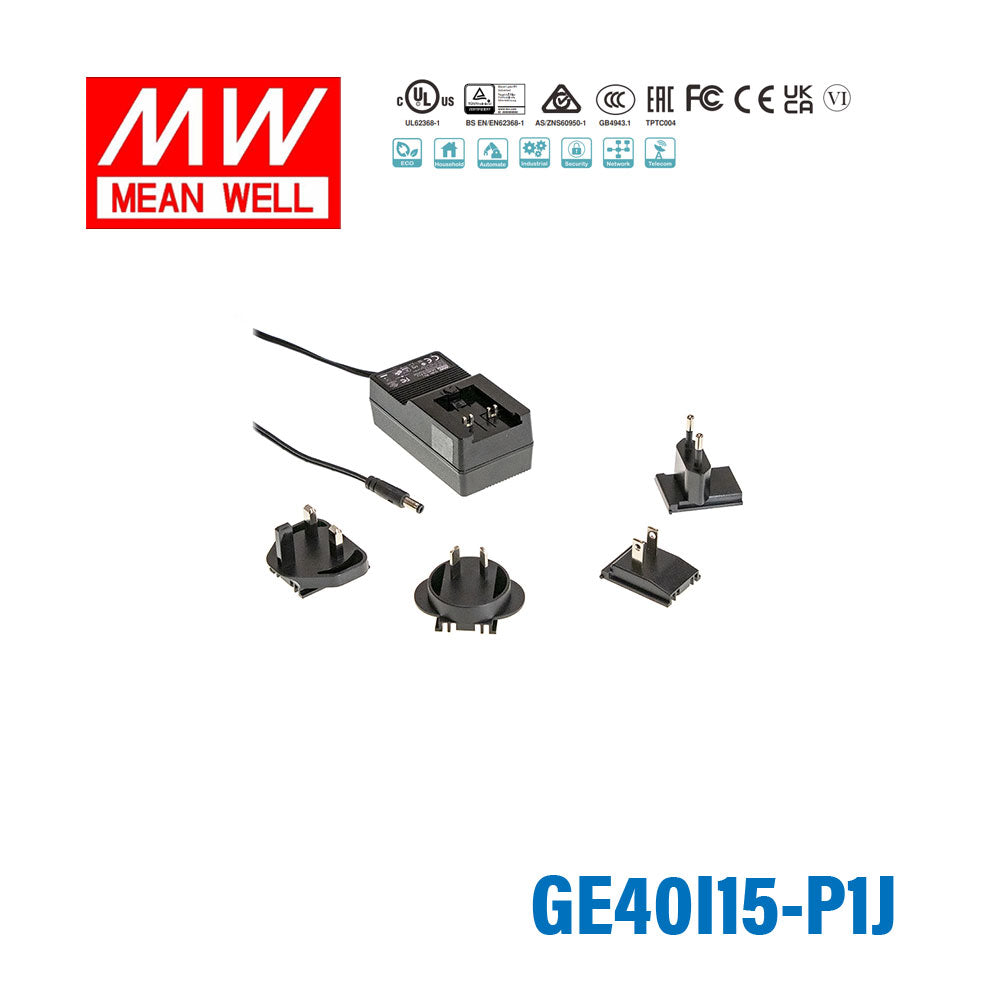

Mean Well GE40I15-P1J Power Supply 40.5W 15V


|

Description

Features

Interchangeable AC plugs (plug kit sold seperately)
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
No load power consumption < 0.075W
ErP step 2 compliant (Level VI)
Meet EISA 2007 (Energy Independence and Security Act)
Class II power (without earth pin)
Fully enclosed plastic case
LED indicator for power on
Pass LPS
Approvals: UL / CUL / TUV / CCC / RCM / CB / FCC / CE
2 years warranty


General Specification

AC input voltage range 90~264VAC / 0.5A
AC inrush current (max.) Cold start, 35A at 100VAC; 8A at 230VAC
Setup, rise, hold up time 3000ms, 40ms, 12ms at 230VAC input
Overload protection Hiccup mode, auto-recovery
Over voltage protection 115%~135% rated output voltage
Withstand voltage I/P-O/P:4242VDC, 1 minute
Working temperature -10~+50°C (refer to output derating curve)
Safety standards UL60950-1, CSA22.2, EN60950-1, GB4943, AS/NZS 60950.1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part15 class B, GB9254
Length of output cable 150cm of AWM2468, 18AWG
Dimension (LxWxH) 94x 48.4x 40mm
Standard DC plug P1J: 2.1ID x5.5OD x11L tuning fork type

Specifications

  • Brand
    Mean Well
  • Series
    GE Series
  • Power Rating
    40.5 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    2.7 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CCC,CE,EAC,FCC,RCM,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    2 Year
  • Length
    9.4 cm
  • Width
    4.84 cm
  • Height
    4 cm
  • Weight
    0.2 kg
