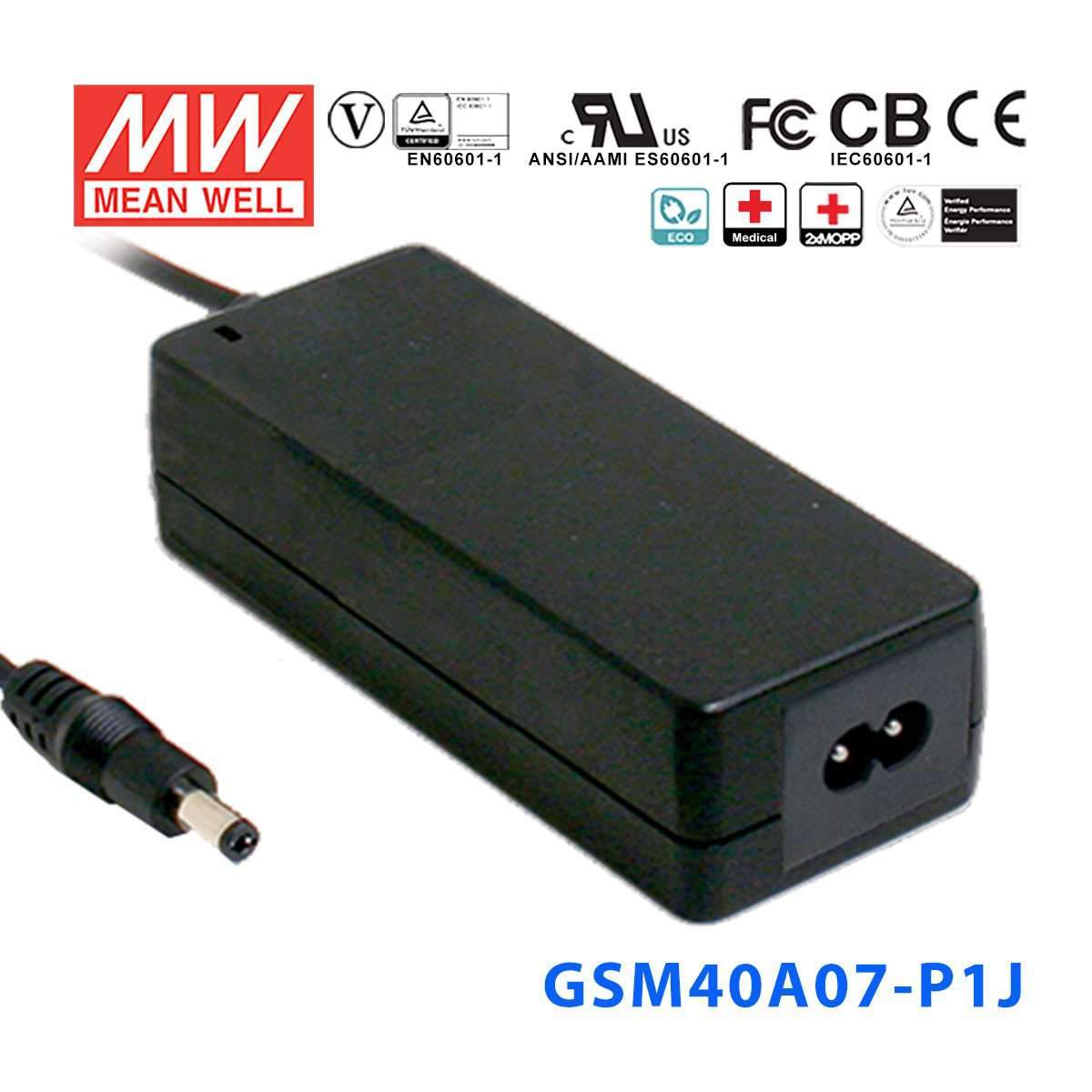

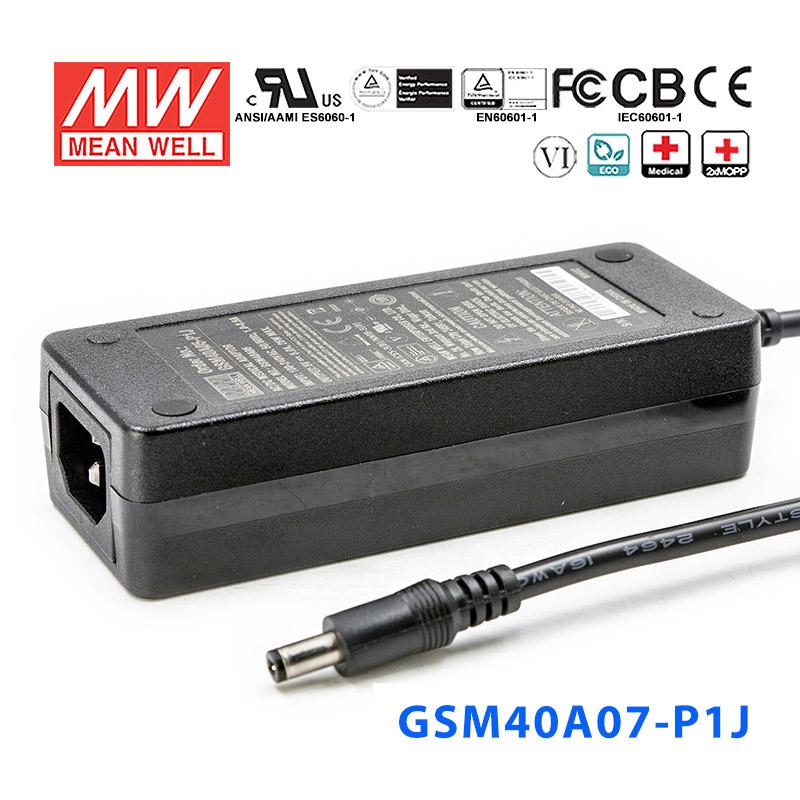

Mean Well GSM40A07-P1J Power Supply 40W 7.5V
Please Login for Pricing
Description
Description
The GSM40A07 is a 40W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating40 Watt
-
Output Voltage7.5 Volt
-
Rated Current5.34 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length12.5 cm
-
Width5 cm
-
Height3.15 cm
-
Weight0.29 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM40A07-P1J for equipment that specifically needs 7.5V DC?
Yes, if the equipment requires a constant 7.5V output and draws no more than 5.34A. This model is rated for 40W, so both the voltage match and the total load need to stay within that limit.
Is the GSM40A07-P1J suitable for 7.5V industrial display or control modules?
It can be suitable for display or control modules that are designed around a 7.5V constant voltage input. With up to 5.34A available, it supports higher-current 7.5V loads than light-duty adapters.
Can this power supply run 7.5V bench, instrumentation, or embedded test hardware?
It can, provided the hardware is rated for 7.5V DC and the load stays within 40W. The broad 80-264VAC input also makes it usable in different regions without changing the supply voltage range.
Is the GSM40A07-P1J appropriate for custom electronics that need more current at 7.5V?
It is a better fit when the design needs 7.5V constant voltage with current demand up to 5.34A. That makes it relevant for custom embedded or control electronics that sit above low-current 7.5V requirements.
Can the GSM40A07-P1J be used in outdoor or high-exposure environments?
The operating temperature range is -30°C to +70°C, which defines thermal capability, but the provided specs do not include an IP rating. Without a stated IP rating, the listing does not confirm outdoor or water-exposed use.
