Mean Well

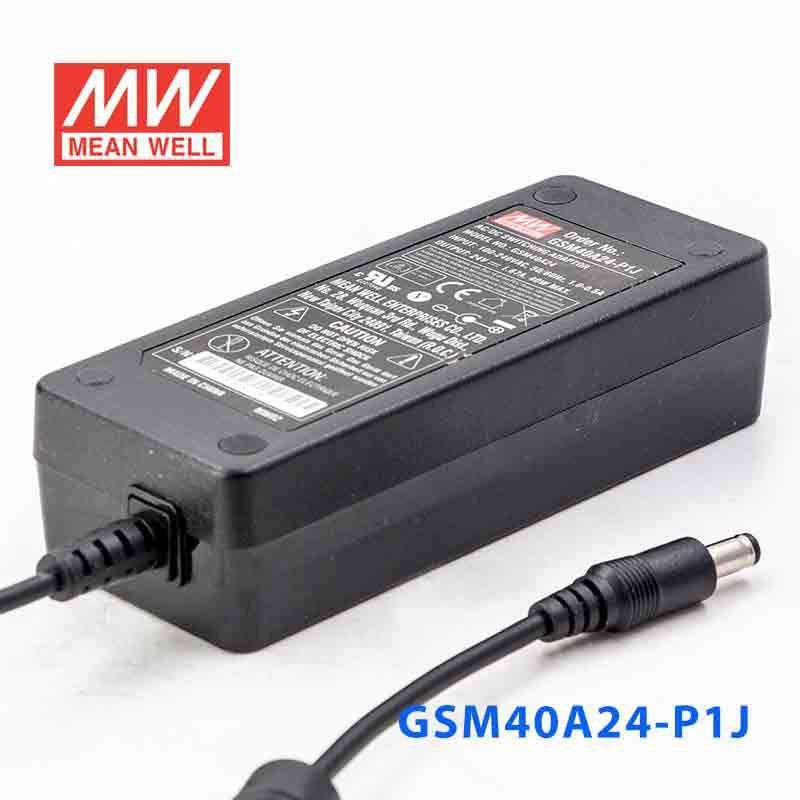

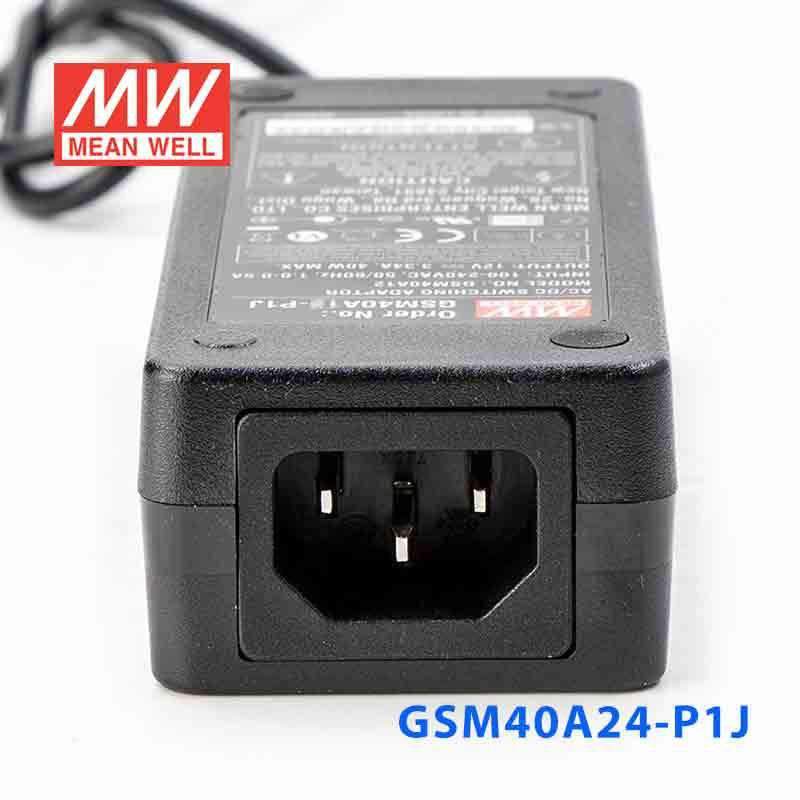

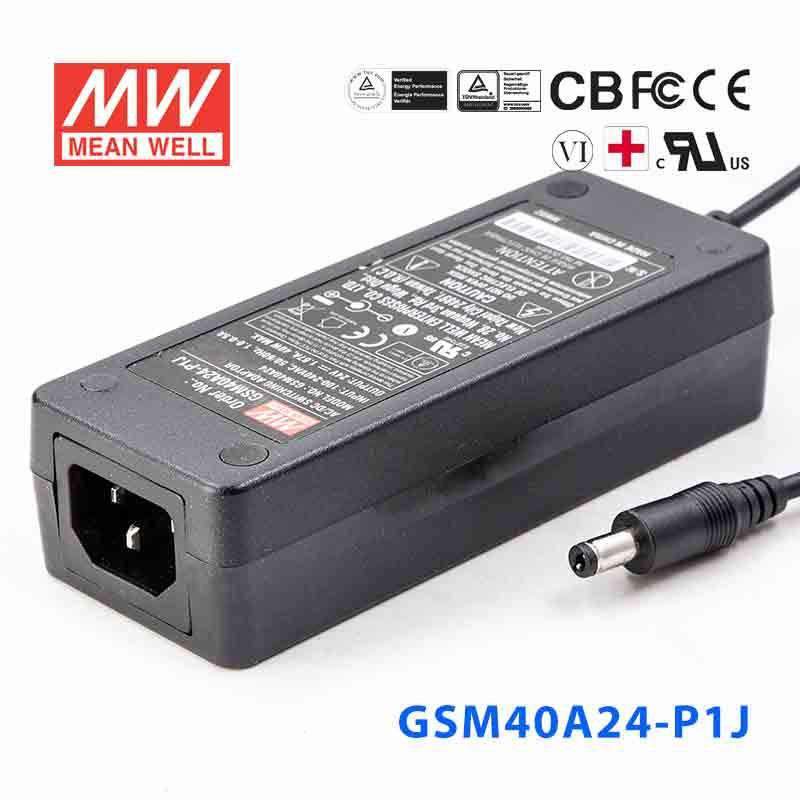

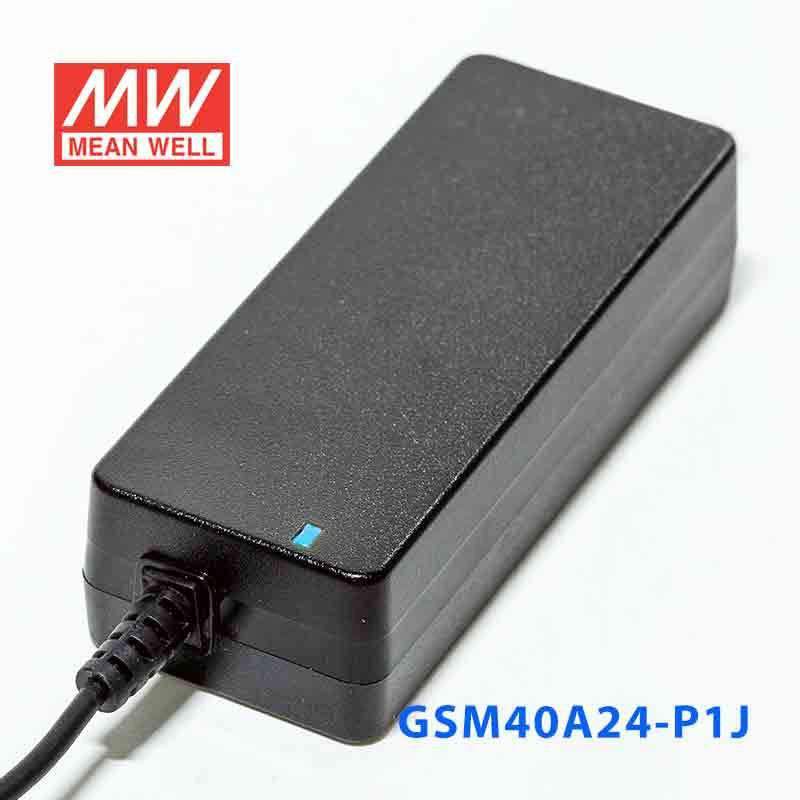

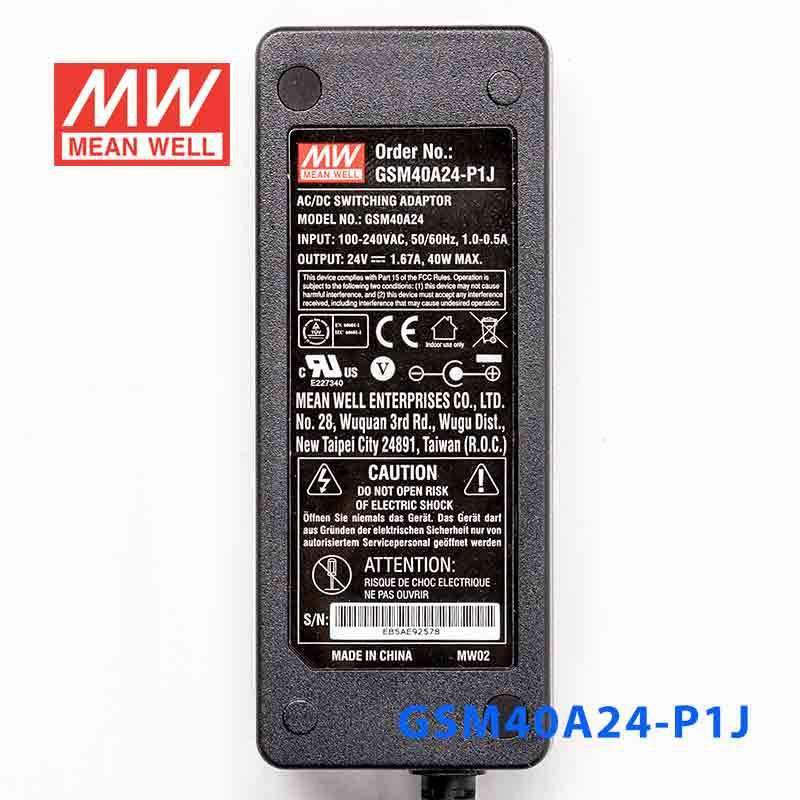

Mean Well GSM40A24-P1J Power Supply 40W 24V

SKU:
GSM40A24-P1J
Please for Pricing
|

Description

The GSM40A24 is a 40W Mean Well power converter (input range: 80~264VAC).

Key Features

  • ✓ Input voltage range: 80~264VAC
  • ✓ 4KVAC reinforced I/O isolation
  • ✓ Cooling by free air convection
  • ✓ Protections: Short circuit / Overload / Over voltage
  • ✓ Safety approvals: ISOLATION LEVEL
  • ✓ 3 years warranty

Specifications
  • Brand
    Mean Well
  • Series
    GSM Series
  • Power Rating
    40 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    1.67 Ampere
  • Input Voltage
    80V~264V
  • Standards Met
    CB,CE,EAC,FCC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    12.5 cm
  • Width
    5 cm
  • Height
    3.15 cm
  • Weight
    0.29 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GSM40A24-P1J for 24V PLC, relay, or sensor power?

It can be a fit for 24V DC automation loads that need constant voltage and stay within 1.67A. With a 40W rating, it is more appropriate for smaller 24V control loads than for larger multi-device 24V systems.

Is the GSM40A24-P1J suitable for 24V industrial control panels?

Yes, if the panel's 24V electronics remain within the supply's 40W and 1.67A limits. Its wide 80-264VAC input range also makes it practical across different facility power standards.

Can this 24V power supply run a small HMI or embedded control device?

It can support a small HMI or embedded controller that requires 24V constant voltage input and does not exceed 1.67A. The selection check is straightforward: match the 24V output and keep the total load within 40W.

Would the GSM40A24-P1J work for bench or test equipment that needs 24V DC?

It can work for 24V bench or test equipment as long as the device stays within the unit's 40W output capacity. The compact 125.0 x 50.0 x 31.5 mm dimensions can also be useful in tight enclosures or test rigs.

Can the GSM40A24-P1J be used outdoors or where water and dust are present?

The specified operating temperature range is -30°C to +70°C, but the provided specs do not state an IP rating. Because enclosure protection is not listed, outdoor or washdown suitability is not established by this product data.
