Mean Well

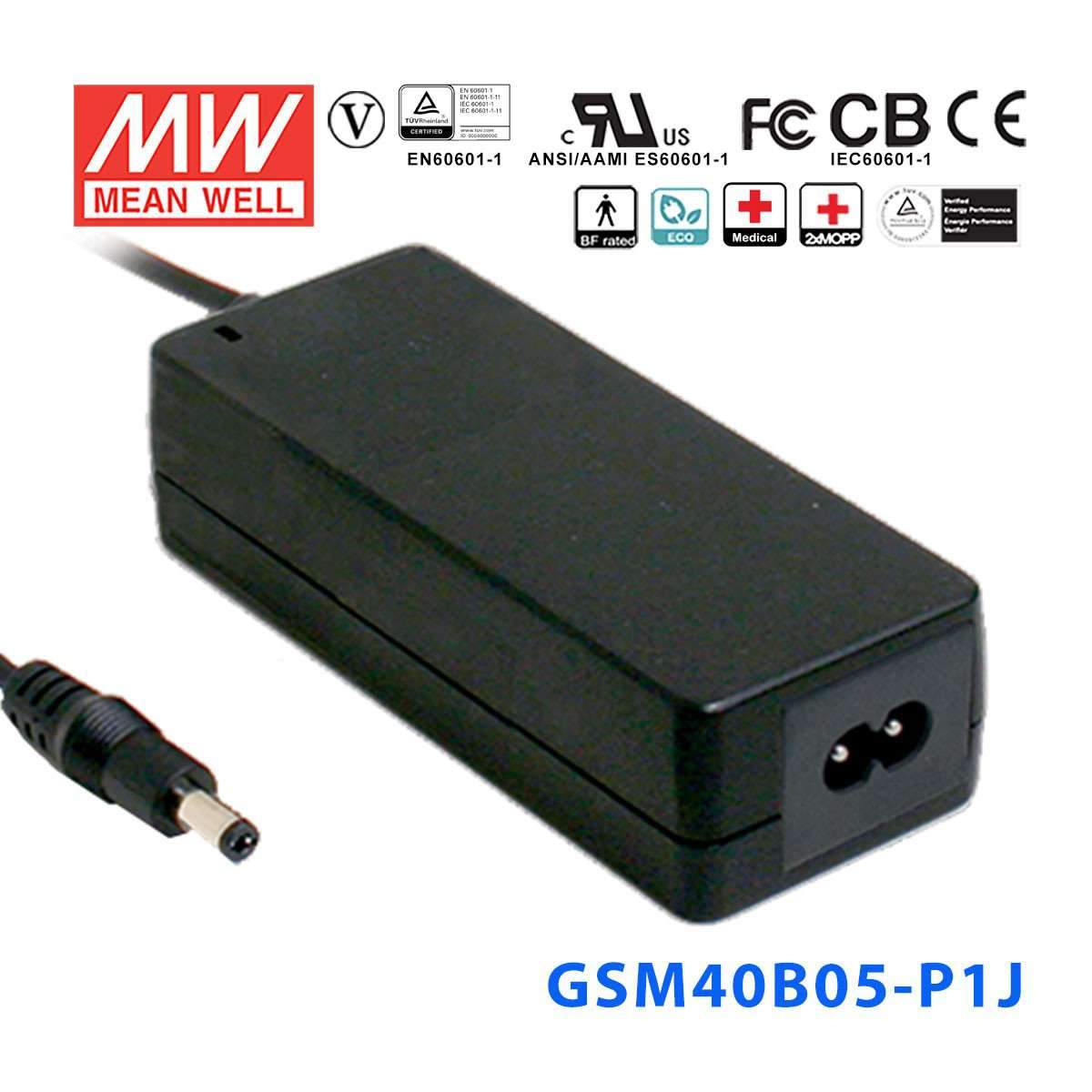

Mean Well GSM40B05-P1J Power Supply 25W 5V

SKU:
GSM40B05-P1J
Model
Please for Pricing
|

Description

The GSM40B05 is a 40W Mean Well power converter (input range: 80~264VAC).

Key Features

  • ✓ Input voltage range: 80~264VAC
  • ✓ 4KVAC reinforced I/O isolation
  • ✓ Cooling by free air convection
  • ✓ Protections: Short circuit / Overload / Over voltage
  • ✓ Safety approvals: ISOLATION LEVEL
  • ✓ 3 years warranty

Specifications
  • Brand
    Mean Well
  • Series
    GSM Series
  • Power Rating
    25 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    5 Ampere
  • Input Voltage
    80V~264V
  • Standards Met
    CB,CE,EAC,FCC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    12.5 cm
  • Width
    5 cm
  • Height
    3.15 cm
  • Weight
    0.29 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GSM40B05-P1J for a 5V embedded controller or SBC?

Yes, this is a constant-voltage 5V power supply for equipment that requires regulated 5V DC input. The total load must stay within 5A and 25W.

Is this a good fit for 5V industrial interfaces or logic devices?

It fits 5V industrial or embedded electronics that are designed for constant 5V input. Output capacity is up to 5A, with 25W maximum power.

Can this power supply run a 5V automation module or compact HMI accessory?

It can power 5V automation accessories that need a constant-voltage source. The device load needs to remain at or below 5A and 25W.

Would this work for 5V test fixtures or control peripherals in an industrial setting?

It is suitable for 5V DC peripherals where a stable constant-voltage output is required. Capacity is limited to 25W total and 5A output current.

Can I use this 5V power supply in outdoor equipment cabinets?

The operating temperature range is -30°C to +70°C, which supports a wide temperature window. The specs do not list an IP rating, so outdoor exposure protection is not established by the published data.
