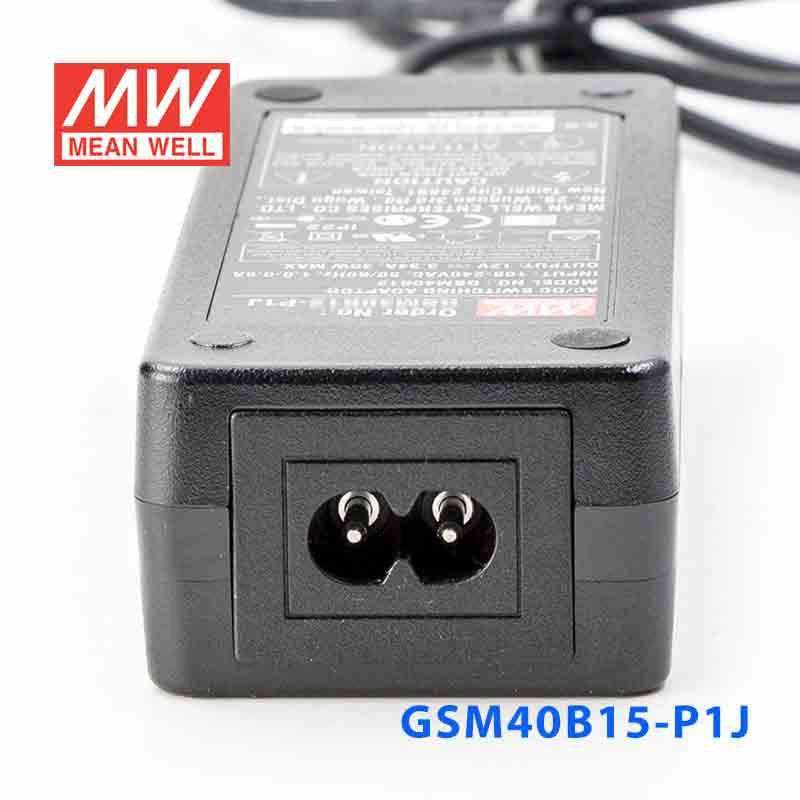

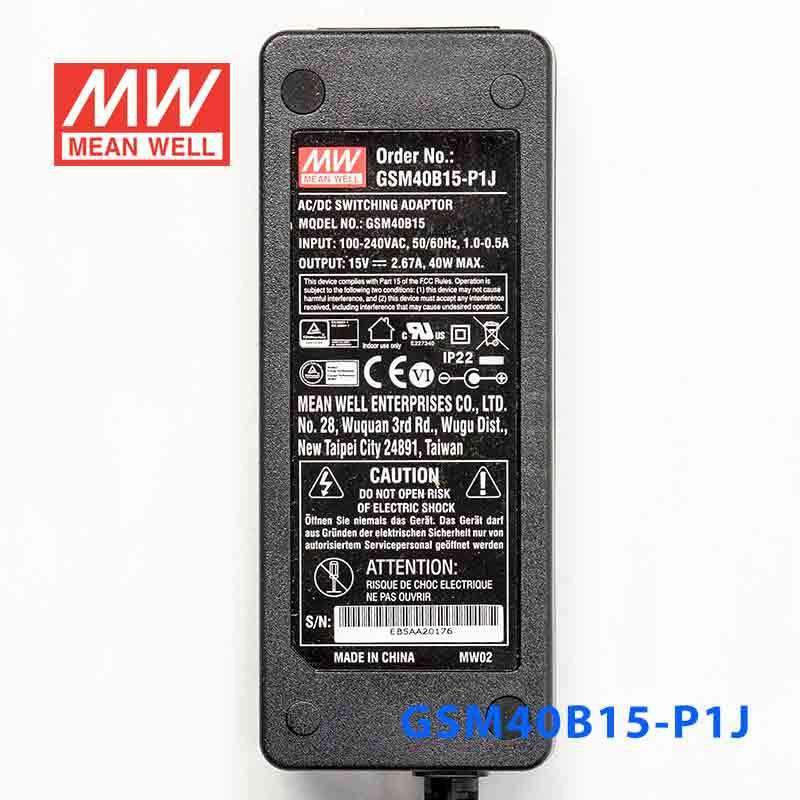

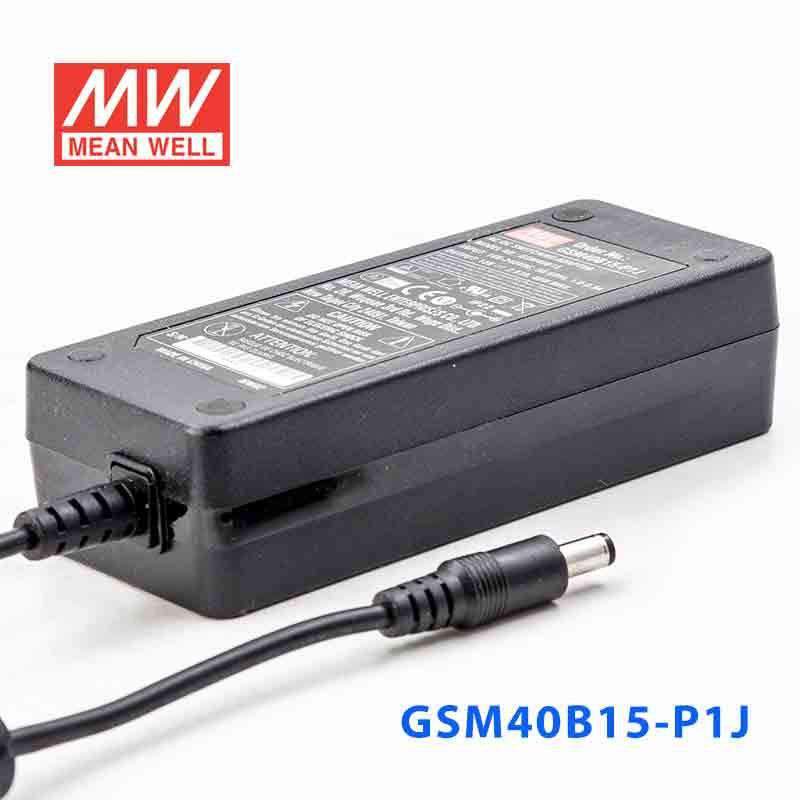

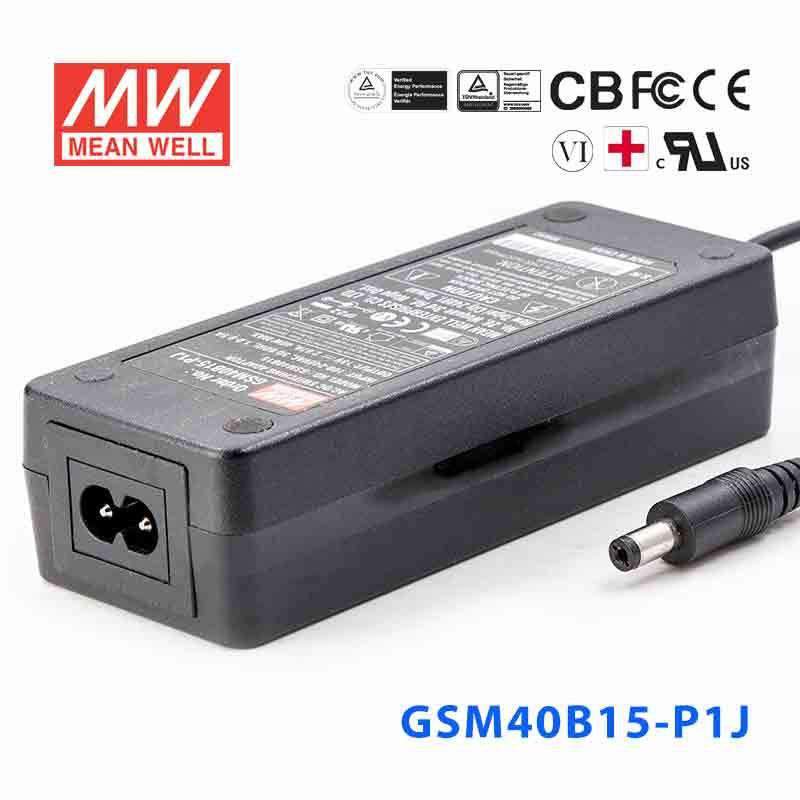

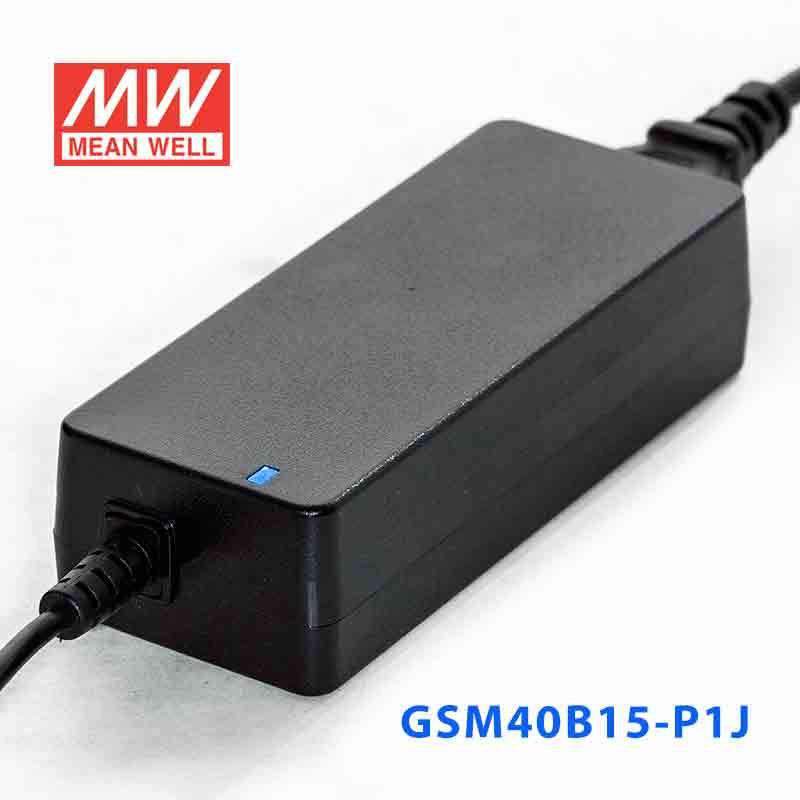

Mean Well GSM40B15-P1J Power Supply 40W 15V
Please Login for Pricing
Description
Description
The GSM40B15 is a 40W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating40 Watt
-
Output Voltage15 Volt
-
Rated Current2.67 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length12.5 cm
-
Width5 cm
-
Height3.15 cm
-
Weight0.29 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM40B15-P1J for a 15V industrial control panel accessory?
Yes, this model is a constant voltage 15V power supply rated for 40W and 2.67A. It fits control-panel devices that require 15V DC and stay within the 2.67A output limit.
Is the GSM40B15-P1J suitable for embedded 15V electronics or test equipment?
It can be a fit for embedded or bench equipment that needs a regulated 15V constant voltage output. The available output is 40W at up to 2.67A, so the total load needs to stay within those ratings.
Can this 15V power supply run a small HMI or industrial display that needs 15V DC?
It is suitable for a 15V DC display or HMI if the device's power draw does not exceed 40W or 2.67A. The wide 80-264VAC input also helps when the equipment may be used across different AC mains ranges.
Can I use the GSM40B15-P1J for automation sensors or low-power actuators that need 15V?
It is intended for constant voltage 15V loads, so it can support automation devices designed for 15V DC. The key check is whether the combined load stays within 40W and 2.67A.
Is the GSM40B15-P1J suitable for outdoor or harsh-environment use?
The listed operating temperature is -30°C to +70°C, which covers a wide temperature range. However, the provided specs do not include an IP rating, so indoor or outdoor exposure suitability is not confirmed from these specs alone.
