Mean Well

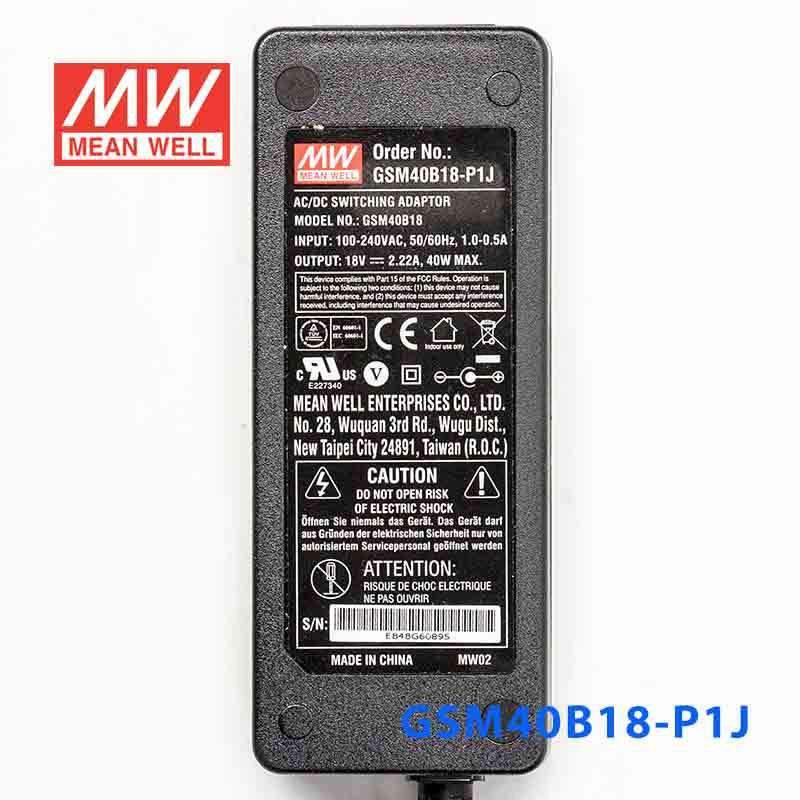

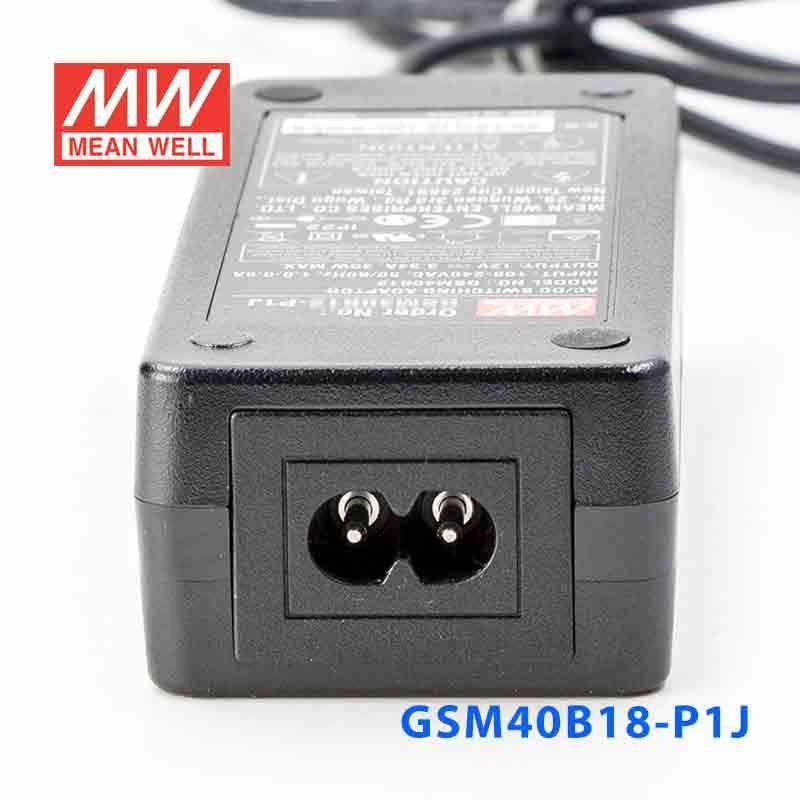

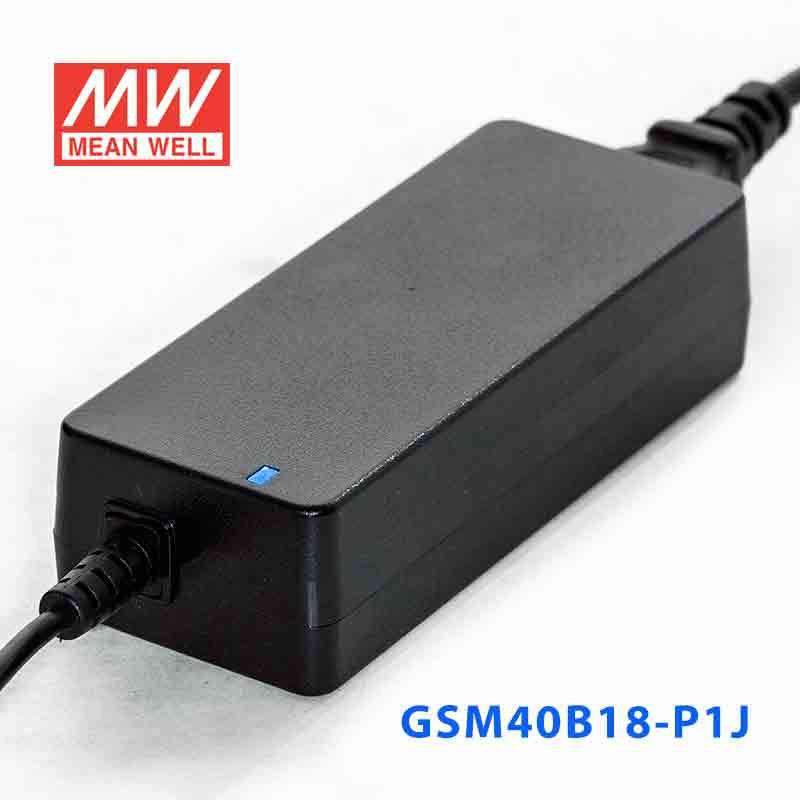

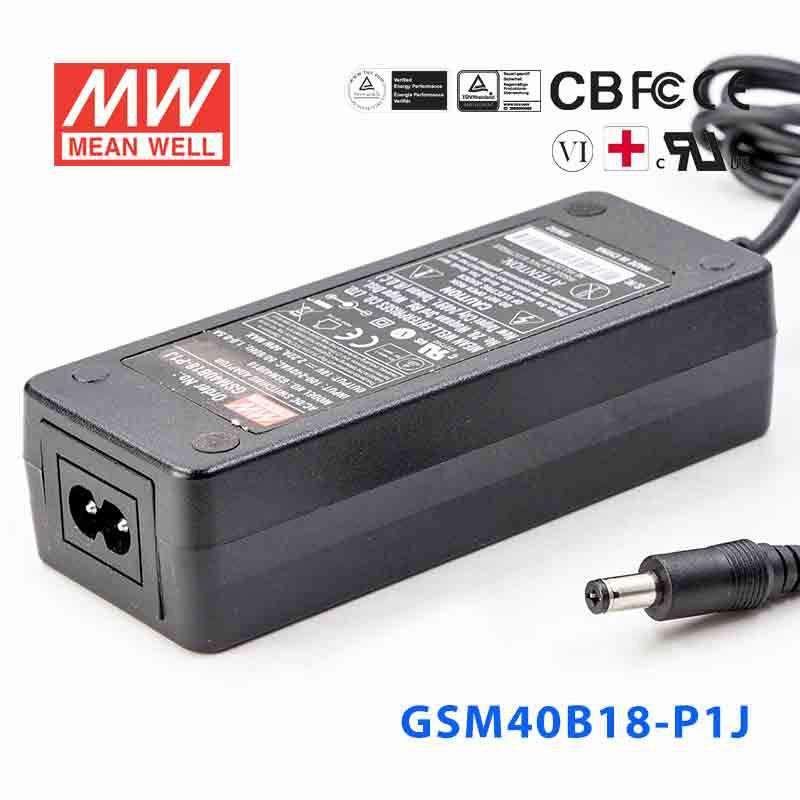

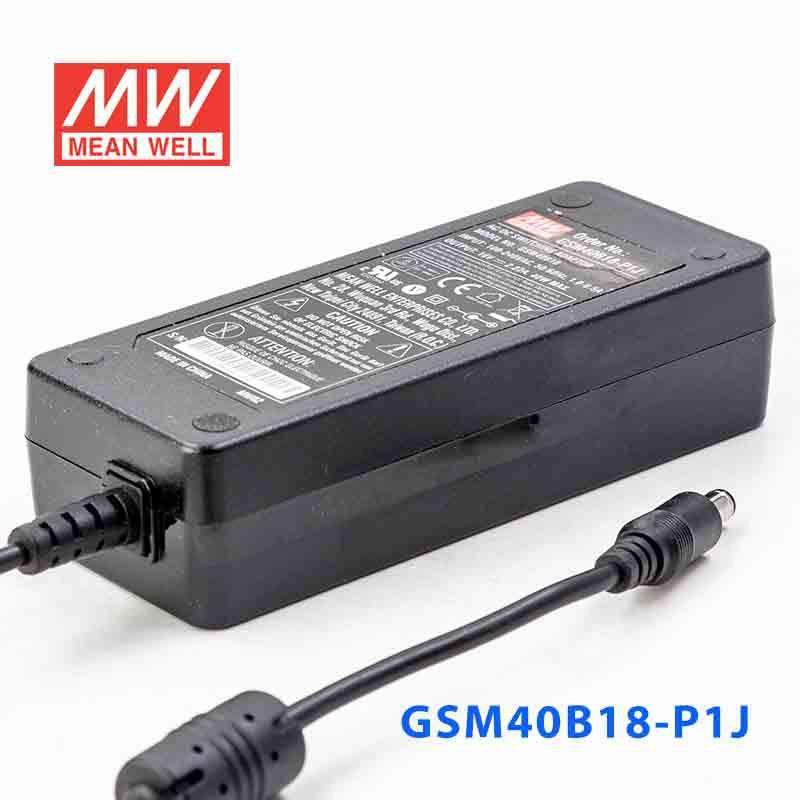

Mean Well GSM40B18-P1J Power Supply 40W 18V

SKU:
GSM40B18-P1J
Please for Pricing
|

Description

The GSM40B18 is a 40W Mean Well power converter (input range: 80~264VAC).

Key Features

  • ✓ Input voltage range: 80~264VAC
  • ✓ 4KVAC reinforced I/O isolation
  • ✓ Cooling by free air convection
  • ✓ Protections: Short circuit / Overload / Over voltage
  • ✓ Safety approvals: ISOLATION LEVEL
  • ✓ 3 years warranty

Specifications
  • Brand
    Mean Well
  • Series
    GSM Series
  • Power Rating
    40 Watt
  • Output Voltage
    18 Volt
  • Rated Current
    2.22 Ampere
  • Input Voltage
    80V~264V
  • Standards Met
    CB,CE,EAC,FCC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    12.5 cm
  • Width
    5 cm
  • Height
    3.15 cm
  • Weight
    0.29 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GSM40B18-P1J for an 18V automation controller or module?

Yes, if the controller requires constant voltage 18V DC and draws no more than 2.22A. This unit is rated for 40W total output, so both the voltage and load need to match those limits.

Is this 18V power supply suitable for industrial sensors or monitoring devices?

It can be used with industrial or monitoring equipment that is specified for 18V constant voltage input. The output capacity is 40W at 2.22A, so the connected load needs to remain within that range.

Can the GSM40B18-P1J power embedded equipment that needs 18V DC from AC mains?

It is designed for AC input from 80-264VAC and provides a constant voltage 18V output. That makes it appropriate for embedded equipment requiring 18V DC, provided the load stays at or below 40W and 2.22A.

Would this model work for a compact industrial instrument with an 18V requirement?

It can fit compact instruments that need 18V DC and do not exceed the 2.22A output rating. The housing dimensions are 125.0 × 50.0 × 31.5 mm, which can also matter where space is limited.

Can I use the GSM40B18-P1J in cold or hot operating environments?

The specified operating temperature range is -30°C to +70°C. The provided specs do not state an IP rating, so temperature capability is defined, but sealed indoor or outdoor suitability is not.
