Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

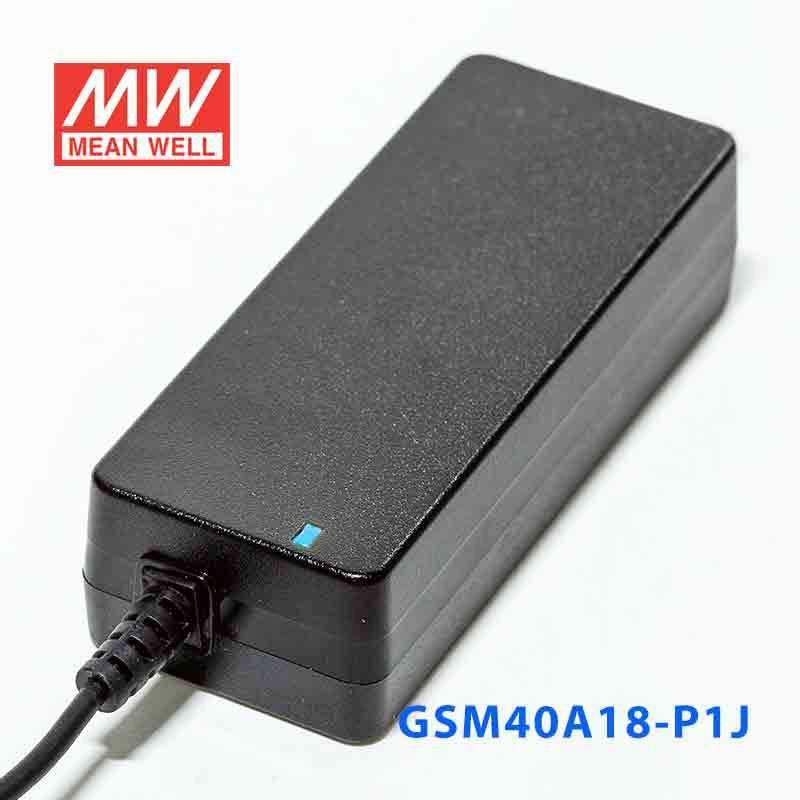

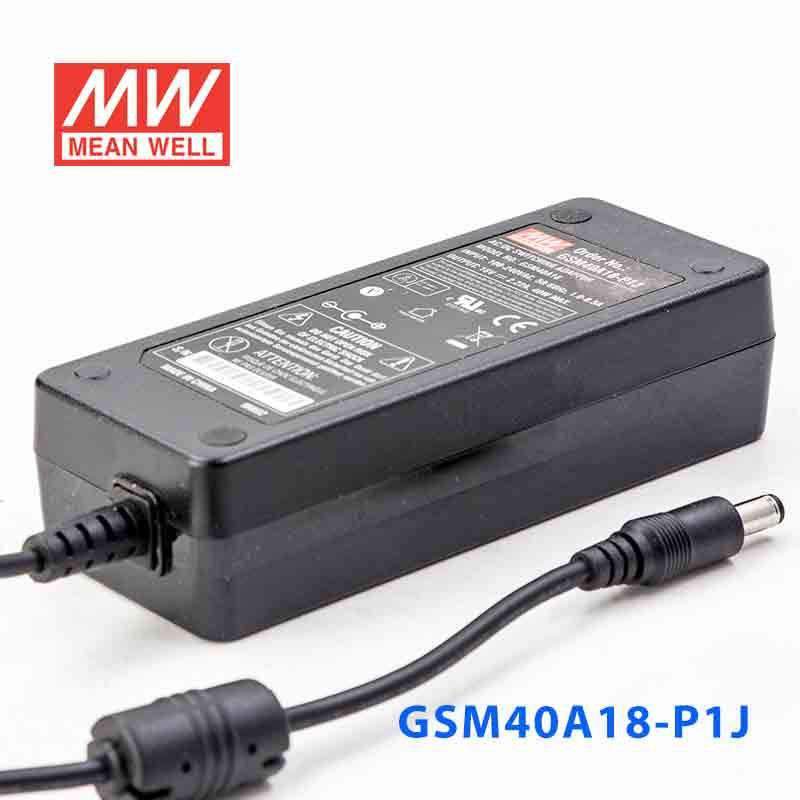

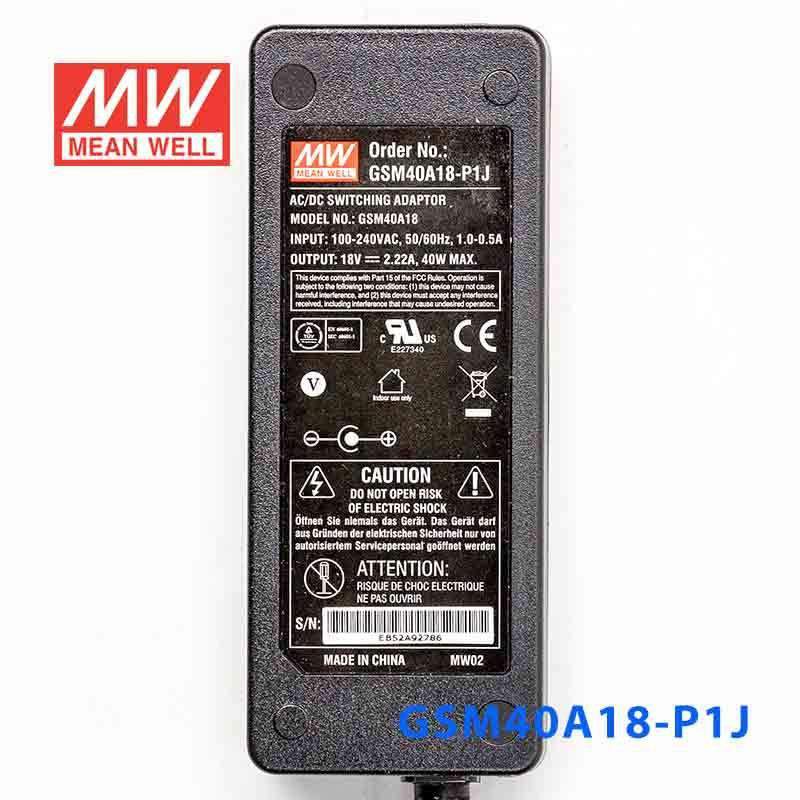

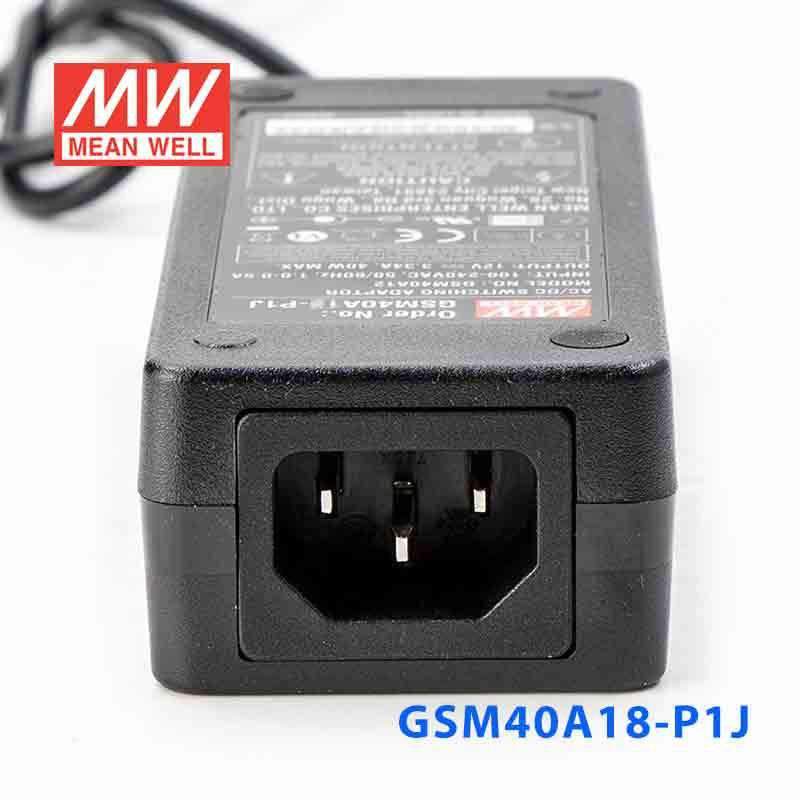

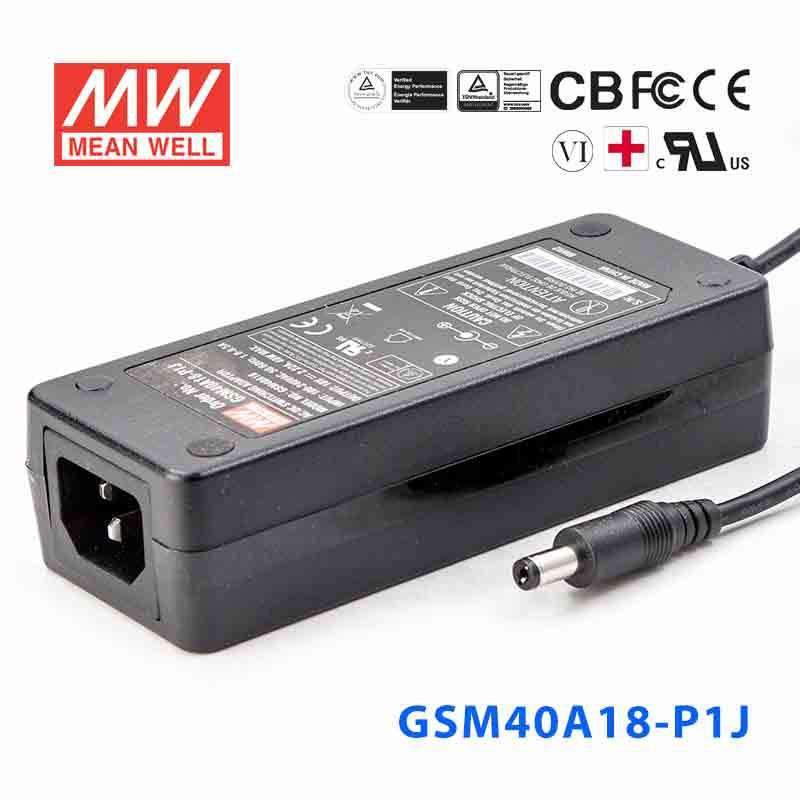

Mean Well GSM40A18-P1J Power Supply 40W 18V

SKU:
GSM40A18-P1J
Please for Pricing
|

Description

The GSM40A18 is a 40W Mean Well power converter (input range: 80~264VAC).

Key Features

  • ✓ Input voltage range: 80~264VAC
  • ✓ 4KVAC reinforced I/O isolation
  • ✓ Cooling by free air convection
  • ✓ Protections: Short circuit / Overload / Over voltage
  • ✓ Safety approvals: ISOLATION LEVEL
  • ✓ 3 years warranty

Specifications
  • Brand
    Mean Well
  • Series
    GSM Series
  • Power Rating
    40 Watt
  • Output Voltage
    18 Volt
  • Rated Current
    2.22 Ampere
  • Input Voltage
    80V~264V
  • Standards Met
    CB,CE,EAC,FCC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    12.5 cm
  • Width
    5 cm
  • Height
    3.15 cm
  • Weight
    0.29 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GSM40A18-P1J for 18V industrial or embedded equipment?

It can fit 18V DC equipment that needs constant voltage and draws up to 2.22A. The total output limit is 40W, so the connected system needs to stay within both the wattage and current rating.

Is this 18V model suitable for compact control or measurement devices?

Yes, for compact control or measurement hardware that is specified for 18V constant voltage input. It is intended for loads within 40W, which makes it more appropriate for lower-power 18V electronics than larger 18V systems.

Can the GSM40A18-P1J power 18V automation accessories in an equipment cabinet?

It can be used for 18V automation accessories when the load stays at or below 2.22A. The 80-264VAC input is also useful for cabinets installed in facilities with different AC mains standards.

Would the GSM40A18-P1J work for an 18V test fixture or specialized electronic assembly?

It can, if the assembly is designed for 18V constant voltage operation and remains within the 40W output rating. The 125.0 x 50.0 x 31.5 mm housing can also matter when fitting the supply into compact test setups.

Is the GSM40A18-P1J suitable for outdoor installations or dirty environments?

The listed operating range is -30°C to +70°C, but no IP rating is given in the provided specs. That means temperature tolerance is specified, while resistance to water or dust is not confirmed by the product data here.
