Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

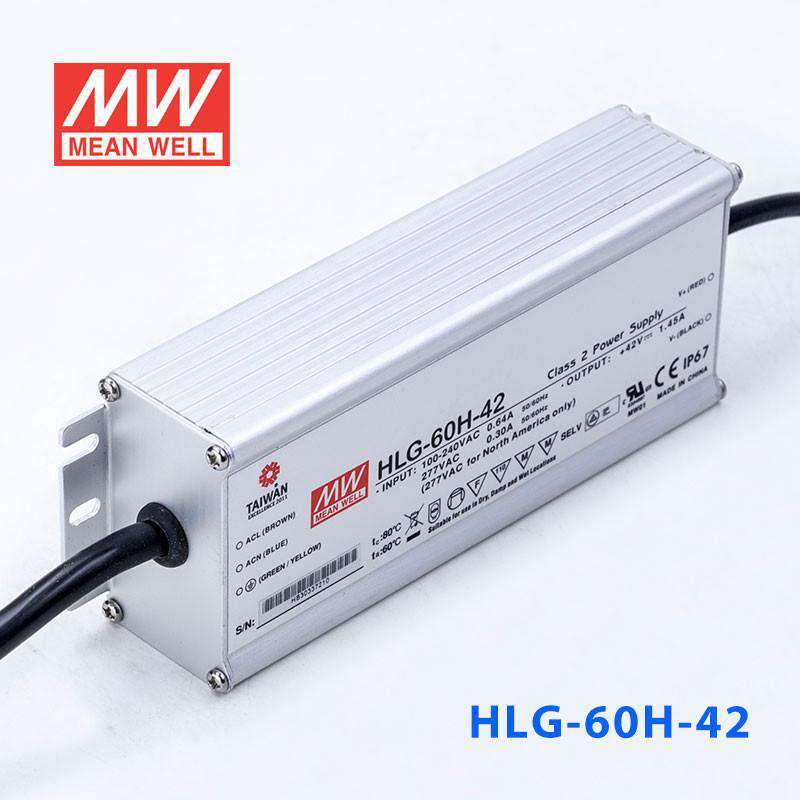

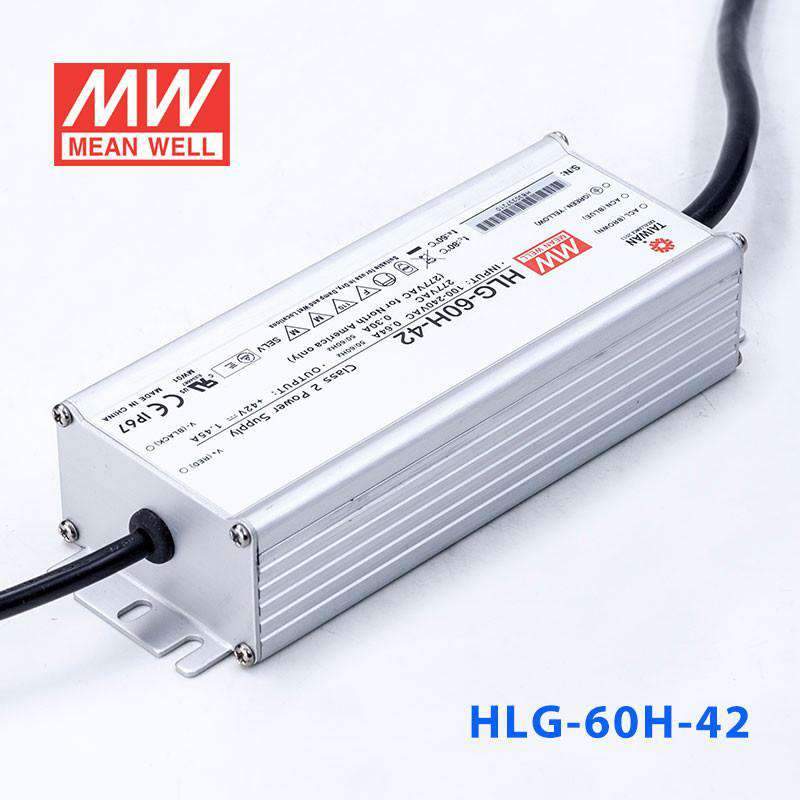

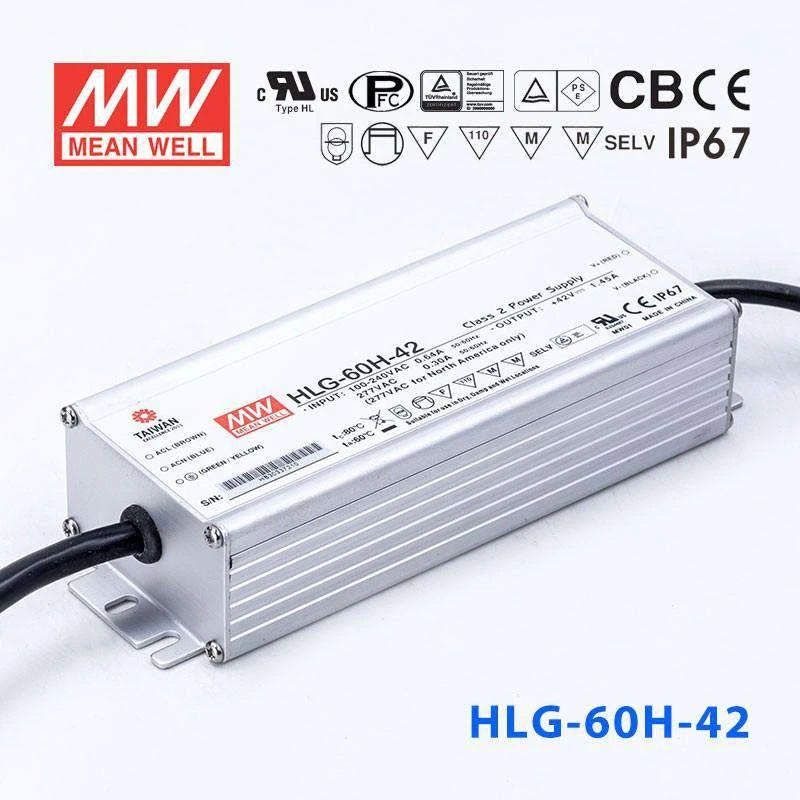

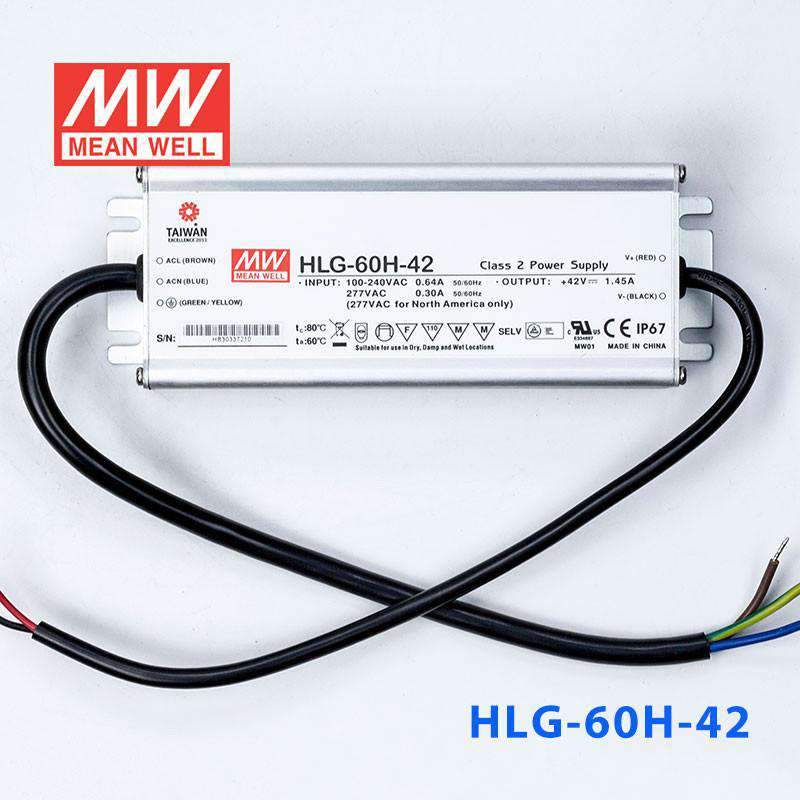

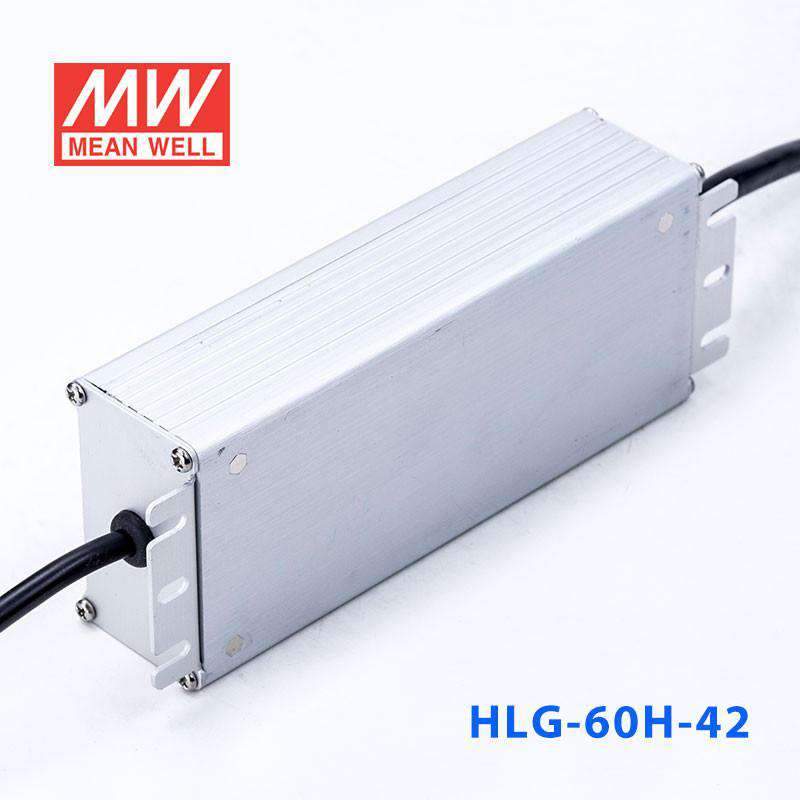

Mean Well HLG-60H-42 Power Supply 60W 42V 1.45A

4.9 (21 reviews)
premium quality7 years warrantyaluminium casinghigh efficiency
SKU HLG-60H-42
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 24 in this family

HLG-60H-42
Available to order
|

Overview

HLG-60H-42 is the 42V output model of this series: rated current 1.45A, rated power 60.9W, typical efficiency 90%. Type Blank: Io and Vo fixed (IP67).

HLG-60H series is a 60W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-60H operates from 90～305VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-60H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Built-in active PFC function
  • Class 2 power unit
  • IP67 rating for indoor or outdoor installations
  • Typical lifetime > 62000 hours
  • 7 years warranty

Specifications

HLG-60H-42Specifications from the official datasheet (2025-02-04 edition)

OUTPUT

DC VOLTAGE
42V
CONSTANT CURRENT REGIONNote.4
25.2 ~ 42V
RATED CURRENT
1.45A
RATED POWER
60.9W
RIPPLE & NOISE (max.)Note.2
300mVp-p
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
500ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.)
16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to "TOTAL HARMONIC DISTORTION (THD)" section)
EFFICIENCY (Typ.)
90%
AC CURRENT (Typ.)
0.64A / 115VAC 0.32A / 230VAC 0.3A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 55A(twidth=265μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENTNote.4
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
48 ~ 58V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase= +80℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750(type"HL"), CSA C22.2 No. 250.0-08, BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, GB/T19510.1,GB/T19510.213,EAC TP TC 004,KC61347-1,KC61347-2-13, IP67 approved ; J61347-1, J61347-2-13 ; design refer to BS EN/EN60335-1(by request)
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.8
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, KS C 9815, KS C 9547, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),KS C 9815, KS C 9547, EAC TP TC 020

OTHERS

MTBF
3396.9K hrs min. Telcordia SR-332 (Bellcore) ;345.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
171*61.5*36.8mm (L*W*H)
PACKING
0.73Kg; 20pcs/15.6Kg/0.9CUFT

MODEL ENCODING

Blank (this model)
Io and Vo fixed; IP67
A
Io and Vo adjustable through built-in potentiometer; IP65
B
3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB
Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D
Timer dimming function, contact MEAN WELL for details(safety pending); IP67
Test conditions and notes13
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  13. 14. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-60H-42 BLOCK DIAGRAM
BLOCK DIAGRAM
HLG-60H-42 Illustration (page 5)
Illustration (page 5)
HLG-60H-42 OUTPUT LOAD vs TEMPERATURE(Note.10)
OUTPUT LOAD vs TEMPERATURE(Note.10)
HLG-60H-42 STATIC CHARACTERISTICS
STATIC CHARACTERISTICS
HLG-60H-42 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HLG-60H-42 LIFETIME(Kh)
LIFETIME(Kh)
HLG-60H-42 MECHANICAL SPECIFICATION ※Blank/D-Type
MECHANICAL SPECIFICATION ※Blank/D-Type
HLG-60H-42 Dimensions (mm)
Dimensions (mm)
HLG-60H-42 Dimensions (mm)
Dimensions (mm)
HLG-60H-42 WATERPROOF CONNECTION
WATERPROOF CONNECTION
HLG-60H-42 WATERPROOF CONNECTION (2)
WATERPROOF CONNECTION (2)

Typical applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I use the HLG-60H-42 to power 42V LED panels for outdoor area lighting?

Yes. The HLG-60H-42 outputs 42V at up to 1.45A (60.9W) with an IP67 waterproof rating, so it can be mounted in exposed outdoor locations. It suits small 42V LED panel fixtures or floodlights in parking areas, walkways, or building exteriors where a single 60.9W driver is sufficient.

Is the HLG-60H-42 suitable for driving 42V LED modules in a commercial light fixture?

Yes. It provides 60.9W at 42V in constant-current mode with a CC range of 25.2-42V. This accommodates LED modules whose forward voltage falls anywhere in that range. The fixed output makes it a straightforward choice for OEM fixtures or retrofit projects that do not require field adjustment.

Can I use the HLG-60H-42 to power 42V LED strips for outdoor signage backlighting?

Yes. At 60.9W and 42V with IP67 waterproofing, it handles outdoor signage environments. The constant-current operation with a 25.2-42V CC range ensures stable output even if the LED strip voltage varies slightly across its length due to thermal changes.

How many meters of 42V LED strip can the HLG-60H-42 power?

Divide the 60.9W rating by your strip's rated power per meter. A 42V strip rated at 10W/m allows about 6 meters (60.9W / 10W per meter). A strip at 15W/m allows about 4 meters. Always verify your strip's actual rated power per meter and keep the total draw at or below 60.9W.

Can the HLG-60H-42 operate reliably in extreme cold, such as an unheated outdoor enclosure in winter?

Yes. It is rated for a working case temperature (Tcase) range of -40 to +80 degrees Celsius, so it starts and operates in deep-freeze conditions. The IP67 rating protects against moisture, but note the working humidity rating is 20-95% RH non-condensing, so avoid enclosures where condensation forms on the driver.

What are the differences between the HLG-60H-42 and HLG-60H-42A?

Both deliver 60.9W at 42V / 1.45A with a CC range of 25.2-42V. The base HLG-60H-42 has fixed output and IP67 waterproofing. The HLG-60H-42A adds output voltage and current adjustment via built-in potentiometers but is rated IP65 instead. Choose the -42A when you need to fine-tune output, or the base -42 for maximum water protection.
