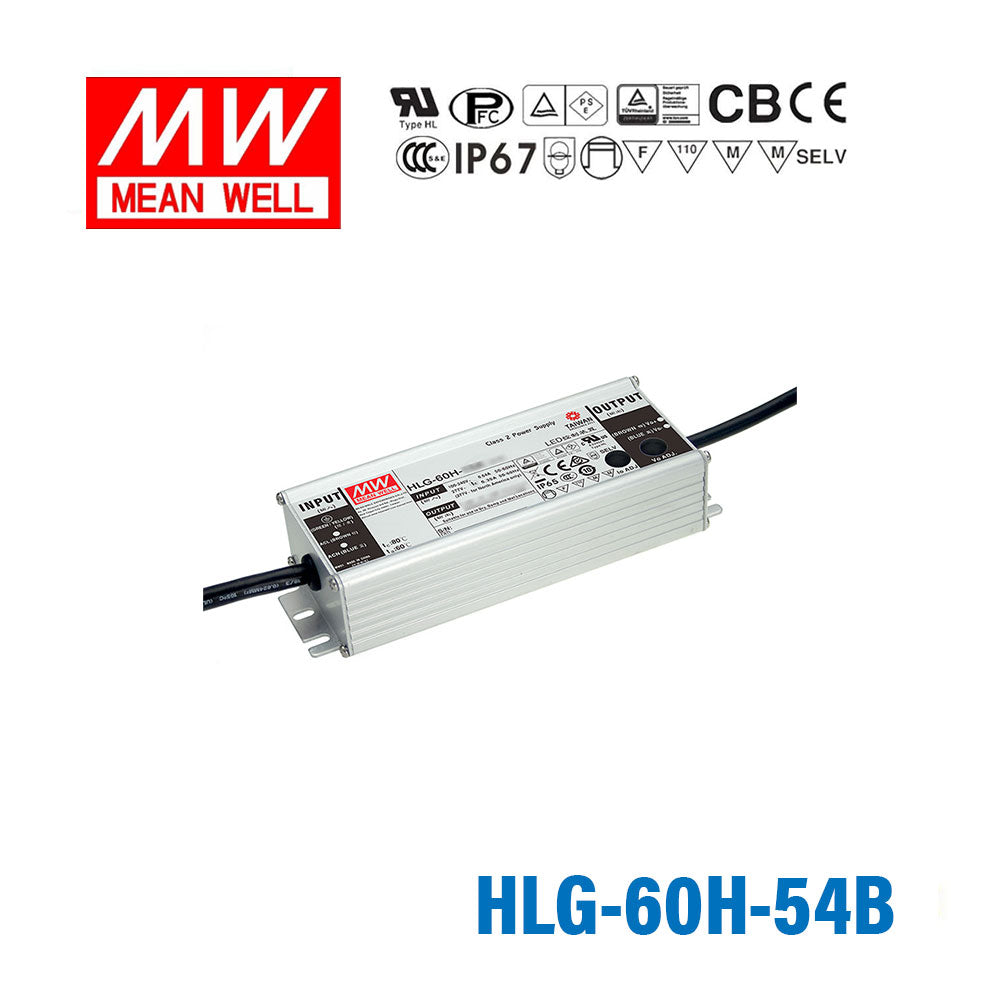

Mean Well HLG-60H-54B 60W 54V Dimmable Power Supply - New Zealand Distributor

The HLG-60H is a 60W Mean Well AC-DC LED driver (input: 90~305VAC, output: 54V, operating temperature: -40~+80°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 54V
✓ Rated output current: 1.15A
✓ Ingress protection: IP67
✓ Operating temperature: -40~+80°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

Can I use the HLG-60H-54B to power a dimmable 54V LED grow light?

Yes. The HLG-60H-54B outputs 60W at 54V with a dimming input that accepts 1-10V or PWM signals, so you can adjust light intensity for different growth stages. Its constant-current operation with a 32-54V CC range suits single 54V LED grow-light modules within the 60W limit.

Is the HLG-60H-54B suitable for outdoor 54V LED landscape lighting?

Yes. With IP67 waterproof protection, the HLG-60H-54B can be installed in direct rain, buried in irrigation zones, or placed in outdoor junction boxes without additional weatherproofing. Its -40°C to +80°C operating range also handles seasonal temperature extremes.

Can I run 54V LED architectural wash lights from the HLG-60H-54B?

Yes, as long as the total load stays within 60W. The dimming input lets you adjust brightness for scene-setting in facade or accent lighting applications. At 54V and 1.15A maximum, you would need to verify your wash lights draw no more than 60W combined.

Can the HLG-60H-54B handle being submerged or installed in a wet underground vault?

Its IP67 rating means it is protected against temporary immersion in water up to 1 meter for 30 minutes. It can handle wet underground vaults, flooded junction boxes, or direct rain exposure. For permanent submersion, an IP68-rated supply would be needed.

How does the HLG-60H-54B compare to the higher-wattage HLG-80H-54 and HLG-100H-54 in the series?

The HLG-60H-54B delivers 60W at 54V (1.15A). The HLG-80H-54 steps up to 80W at 54V (1.5A), and the HLG-100H-54 provides 100W at 54V (1.77A). All share IP67 waterproof protection in their B variants. Choose based on your total LED load — the 60W model is the most compact option when your fixture or module stays within that power budget.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well HLG-60H-24 Power Supply 60W 24V 2.5A	60W	24V	2.5A	IP67	View
Mean Well HLG-60H-24A Power Supply 60W 24V - Adjustable 2.5A	60W	24V	2.5A	IP65	View
Mean Well HLG-60H-24B Power Supply 60W 24V - Dimmable 2.5A	60W	24V	2.5A	IP67	View
Mean Well HLG-60H-48B Power Supply 60W 48V - Dimmable 1.3A	60W	48V	1.3A	IP67	View
Mean Well HLG-60H-48A Power Supply 60W 48V - Adjustable 1.3A	60W	48V	1.3A	IP65	View
Mean Well HLG-60H-48AB Power Supply 60W 48V - Adjustable and Dimmable 1.3A	60W	48V	1.3A	IP65	View
