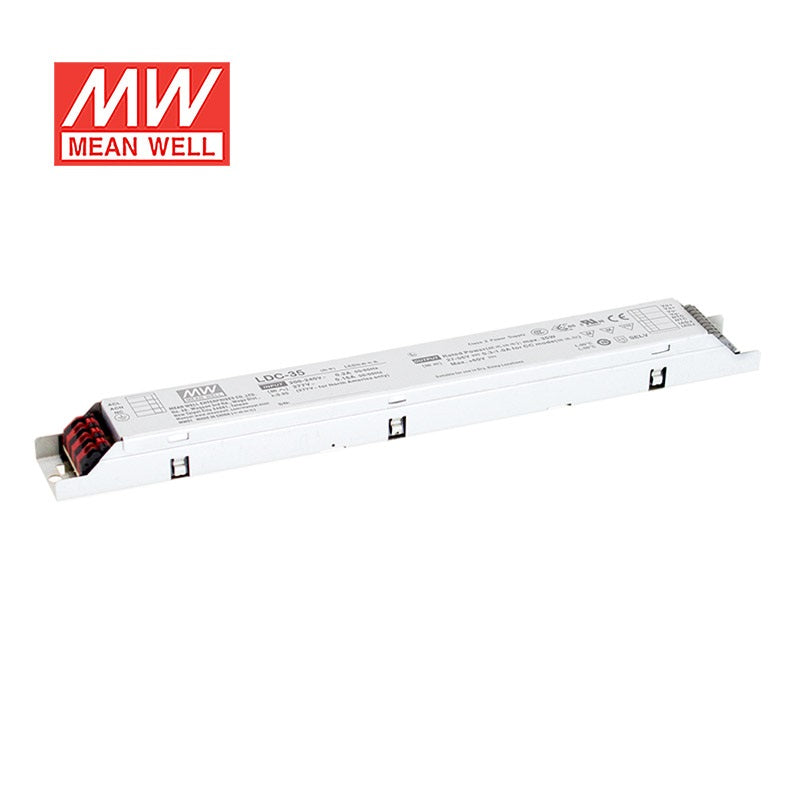

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well LDC-35DA2 Linear LED Driver 35W 300~1000mA Adjustable Output - DALI2

constant powerflicker freeultra slim design30mm width

SKU:

LDC-35DA2

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Features

Constant Power mode output

Metal housing design

Full power at 70~100% max current

Built-in active PFC function

Flicker-free design

No load/standby power consumption<0.5W

Output current level pre-settable

Function options: 3 in 1 dimming(dim-to-off); DALI interface, push dimming

Typical lifetime>50000 hours

SELV and isolated

Class 2 power supply

5 years warranty

General Specification

AC input voltage range	180~295VAC
AC inrush current (Typ.)	COLD START 30A(twidth=250μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short circuit protection	Hiccup mode or constant current limiting recovers automatically after the fault condition is removed
Over temperature protection	Shut down o/p voltage, with auto-recovery
Setup time	500ms / 230VAC
Withstand voltage	I/P-O/P:3.75KVAC, I/P-FG:2.0KVAC, O/P-FG:1.5KVAC
Working temperature	Tcase=-25 ~ +80℃
Safety standards	UL8750, CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, AS/NZS 61347.1, AS/NZS IEC 61347.2.13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020
Dimension (LxWxH)(mm)	280x30x21mm
Packing	54pcs/12.88Kg

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well LDC-55B Linear LED Driver 55W 500~1600mA Adjustable Output - Dimmable	55W	60V	0.5A	Indoor	View
Mean Well LDC-80DA2 Linear LED Driver 80W 700~2100mA Adjustable Output - DALI2	80W	60V	1.4A	Indoor	View
Mean Well LDC-80DA Linear LED Driver 80W 700~2100mA Adjustable Output - DALI	80W	60V	0.7A	Indoor	View
Mean Well LDC-80B Linear LED Driver 80W 700~2100mA Adjustable Output - Dimmable	80W	60V	0.7A	Indoor	View
Mean Well LDC-80 Linear LED Driver 80W 700~2100mA Adjustable Output	80W	60V	0.7A	Indoor	View
Mean Well LDC-55DA2 Linear LED Driver 55W 500~1600mA Adjustable Output - DALI2	55W	60V	1.05A	Indoor	View
Mean Well LDC-55DA Linear LED Driver 55W 500~1600mA Adjustable Output - DALI	55W	60V	0.5A	Indoor	View
Mean Well LDC-55 Linear LED Driver 55W 500~1600mA Adjustable Output	55W	60V	0.5A	Indoor	View
Mean Well LDC-35DA Linear LED Driver 35W 300~1000mA Adjustable Output - DALI	35W	60V	0.3A	Indoor	View
Mean Well LDC-35B Linear LED Driver 35W 300~1000mA Adjustable Output - Dimmable	35W	60V	0.3A	Indoor	View
Mean Well LDC-35 Linear LED Driver 35W 300~1000mA Adjustable Output	35W	60V	0.3A	Indoor	View
