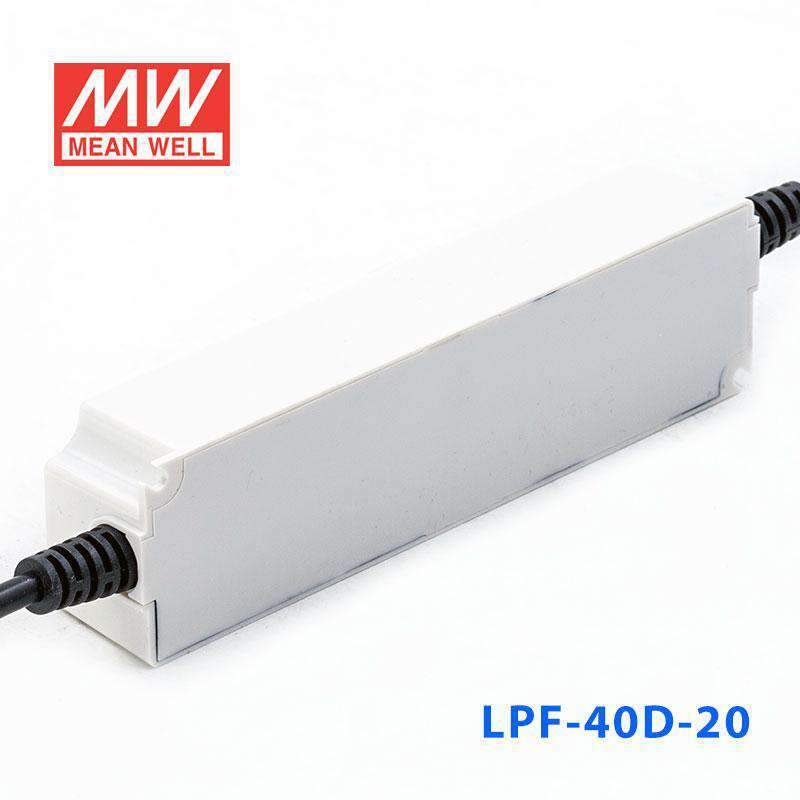

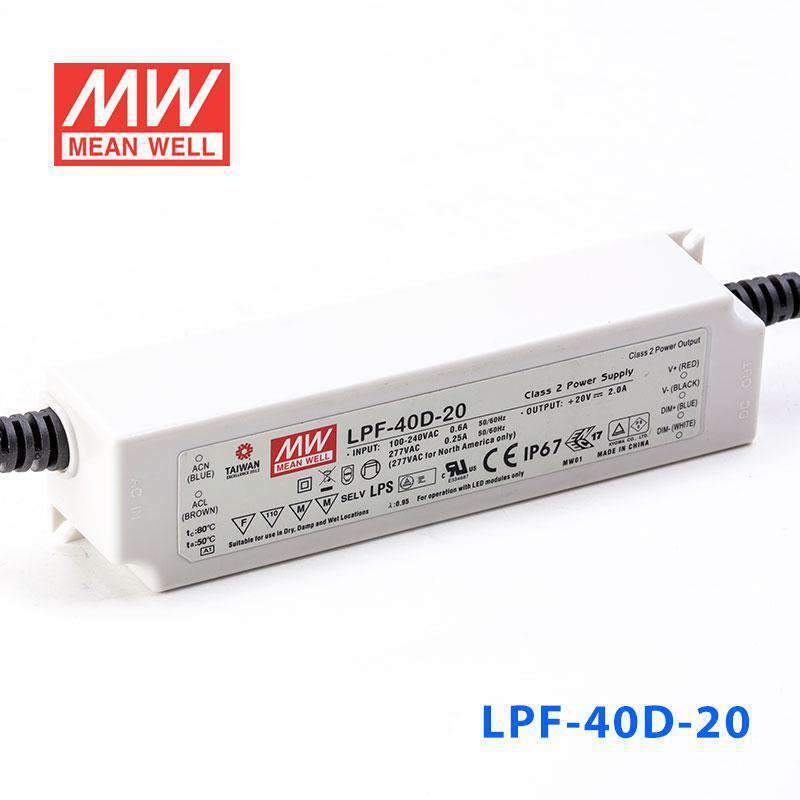

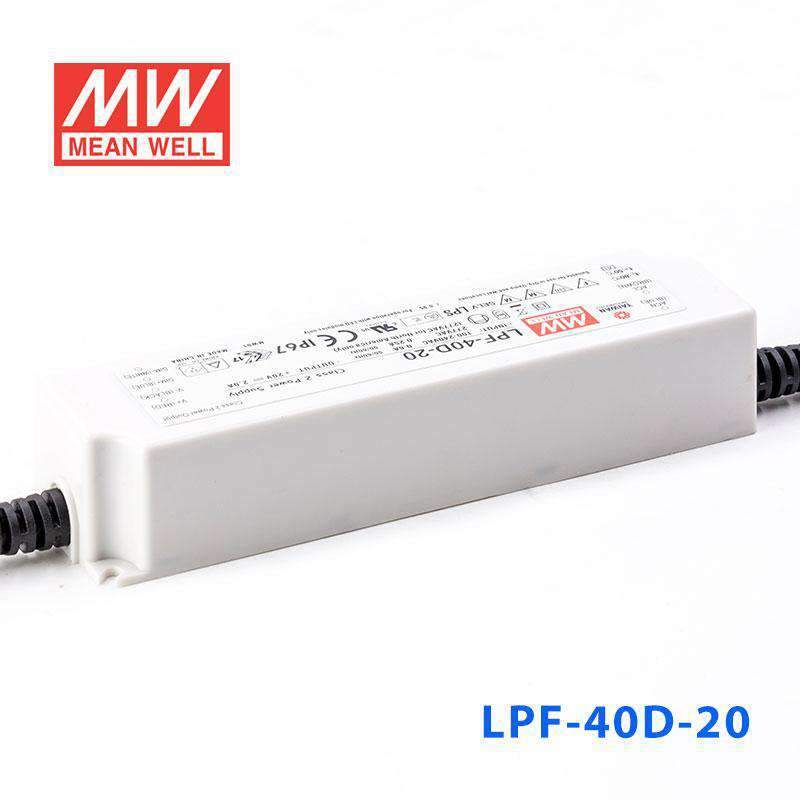

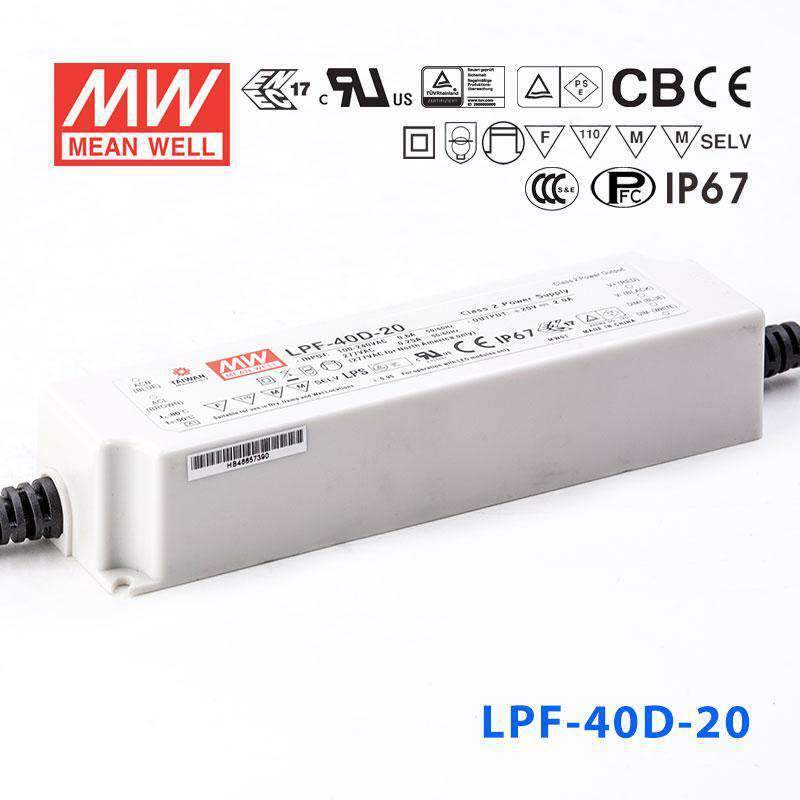

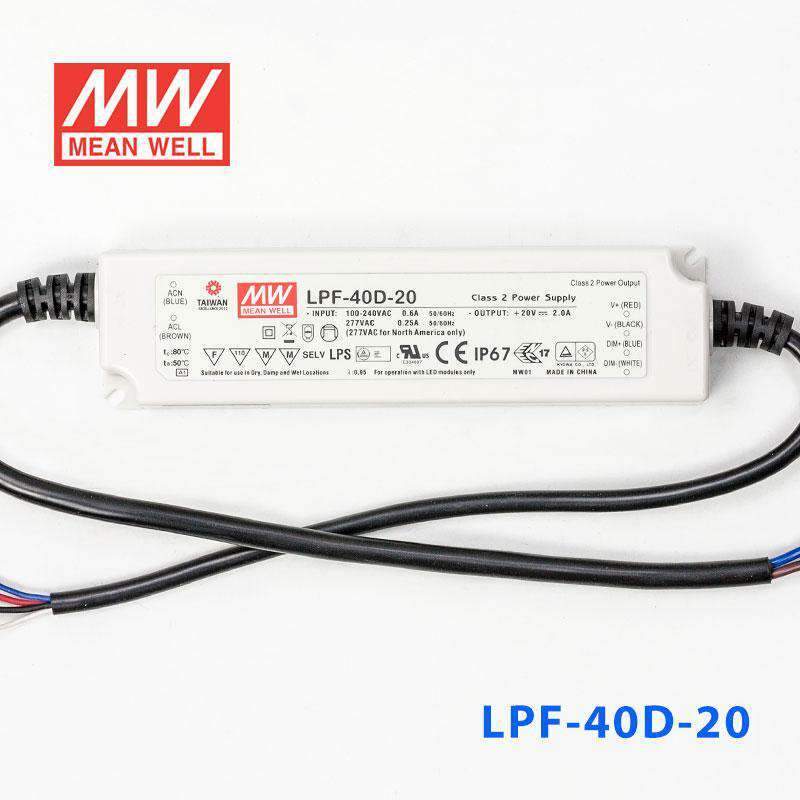

Mean Well LPF-40D-20 40W 20V Power Supply - Dimmable | Auckland Distributor

Description

Features

Universal AC input (up to 305VAC) / Full range

Built-in active PFC function

Fully isolated plastic case

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type

Fully encapsulated with IP67 level

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Protections: Short circuit / Over current / Over voltage / Over temperature

Suitable for LED lighting and moving sign applications

Suitable for dry, damp, and wet location

Cooling by free air convection

5 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 50A
Over current protection	95% ~108% constant current, auto-recovery
Over voltage protection	110%~150% rated output voltage
Withstand voltage	I/P - O/P: 3.75kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D)
EMC standards	EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	18AWGx2C(30cm)+22AWGx2C (30cm)
Dimension (LxWxH)(mm)	162.5x 43x 32

Specifications

Brand

Mean Well
Series

LPF Series
Power Rating

40 Watt
Output Voltage

20 Volt
Rated Current

2 Ampere
Input Voltage

90V~305V
Standards Met

CB,CE,EAC,ENEC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

16.25 cm
Width

4.3 cm
Height

3.2 cm
Weight

0.45 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPF-40D-20 with a 20V LED strip for illuminated displays?

Yes, if the display lighting is a 20V load and the total demand stays within 40W and 2A. The built-in 3 in 1 dimming is useful for display applications that need brightness adjustment.

Is this a good choice for 20V signage lighting that needs dimming?

It is suitable for 20V signage lighting loads that stay within the driver's 40W output and 2A current limit. The 12-20V CC range and dimmable design make it appropriate for controlled 20V LED lighting applications.

Can the LPF-40D-20 power 20V linear lighting in a damp environment?

Yes, for 20V linear lighting products that do not exceed 40W total. Its IP67 waterproof rating supports use in damp or wet environments where a sealed driver is needed.

How do I estimate the maximum 20V LED strip length for this driver?

Use the power limit: 40W divided by your strip's rated watts per meter equals the estimated maximum length. Check your strip rated power per meter, and make sure the full load stays within 40W and 2A.

Can this driver be used outdoors?

The LPF-40D-20 has an IP67 waterproof rating, so it is designed for outdoor and wet-location use where that protection level is appropriate. It is also rated for -40°C to +80°C operation.

Model	Power	Voltage	Current	IP Rating
Mean Well LPF-40D-24 Power Supply 40W 24V - Dimmable	40.08W	24V	1.67A	IP67	View
Mean Well LPF-40D-15 Power Supply 40W 15V - Dimmable	40.08W	15V	2.67A	IP67	View
Mean Well LPF-40D-12 Power Supply 40W 12V - Dimmable	40.08W	12V	3.34A	IP67	View
Mean Well LPF-40D-54 Power Supply 40W 54V - Dimmable	41.04W	54V	0.76A	IP67	View
Mean Well LPF-40D-48 Power Supply 40W 48V - Dimmable	40.32W	48V	0.84A	IP67	View
Mean Well LPF-40D-42 Power Supply 40W 42V - Dimmable	40.32W	42V	0.96A	IP67	View
Mean Well LPF-40D-36 Power Supply 40W 36V - Dimmable	40.32W	36V	1.12A	IP67	View
Mean Well LPF-40D-30 Power Supply 40W 30V - Dimmable	40.2W	30V	1.34A	IP67	View
