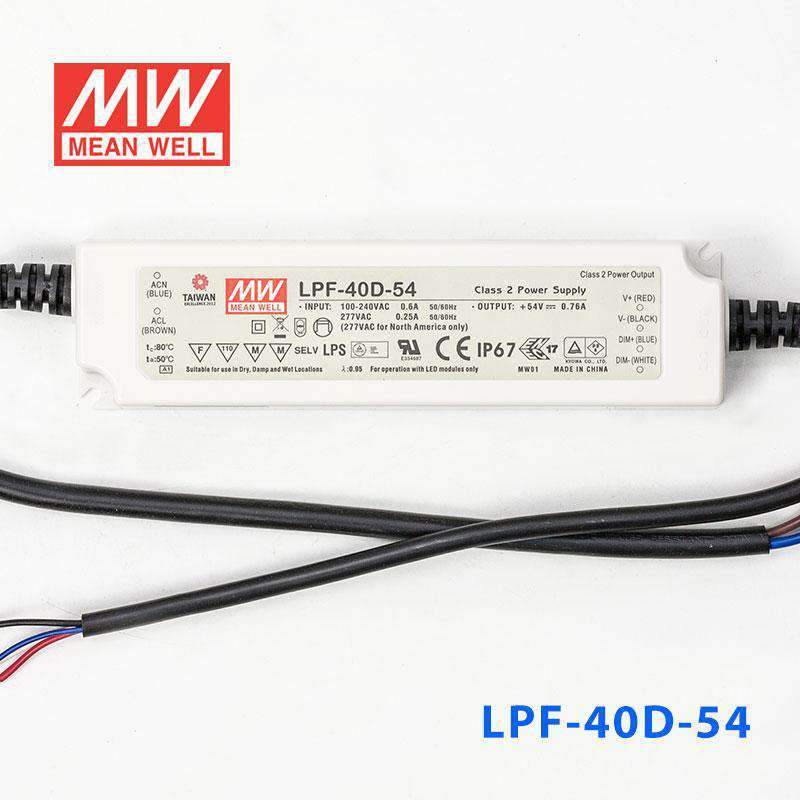

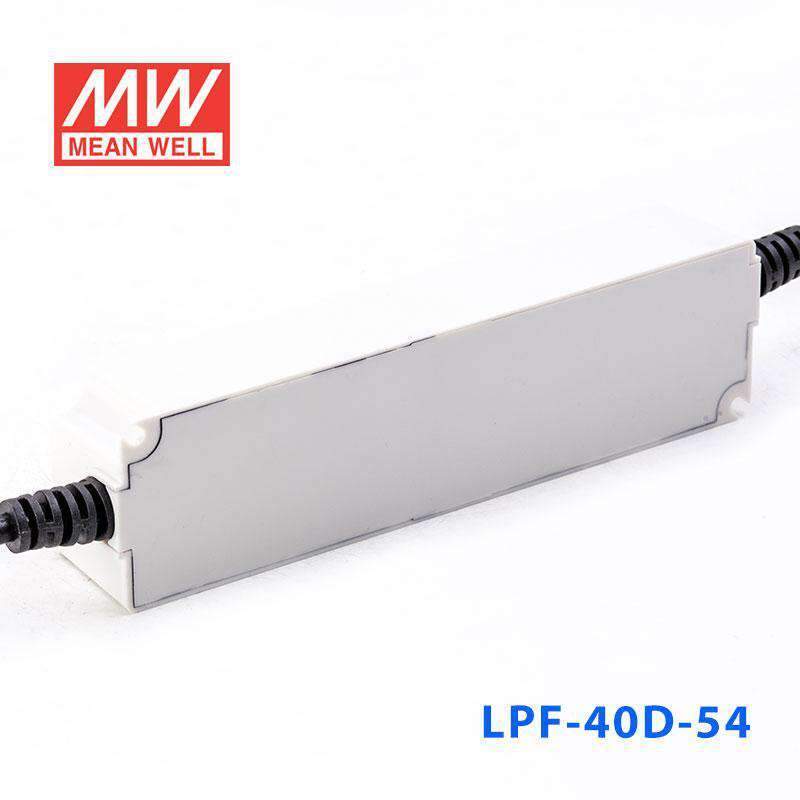

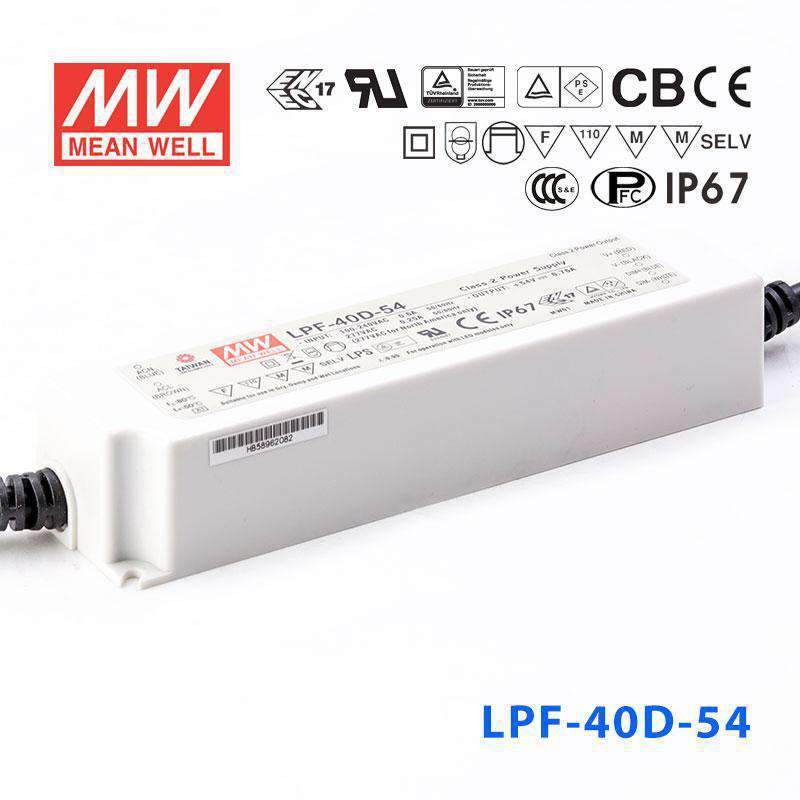

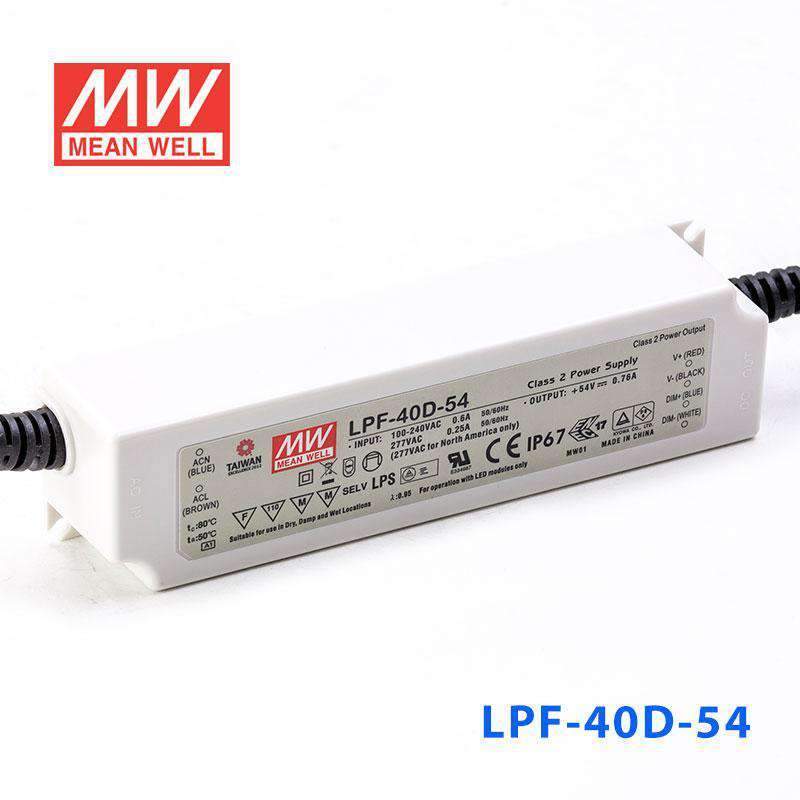

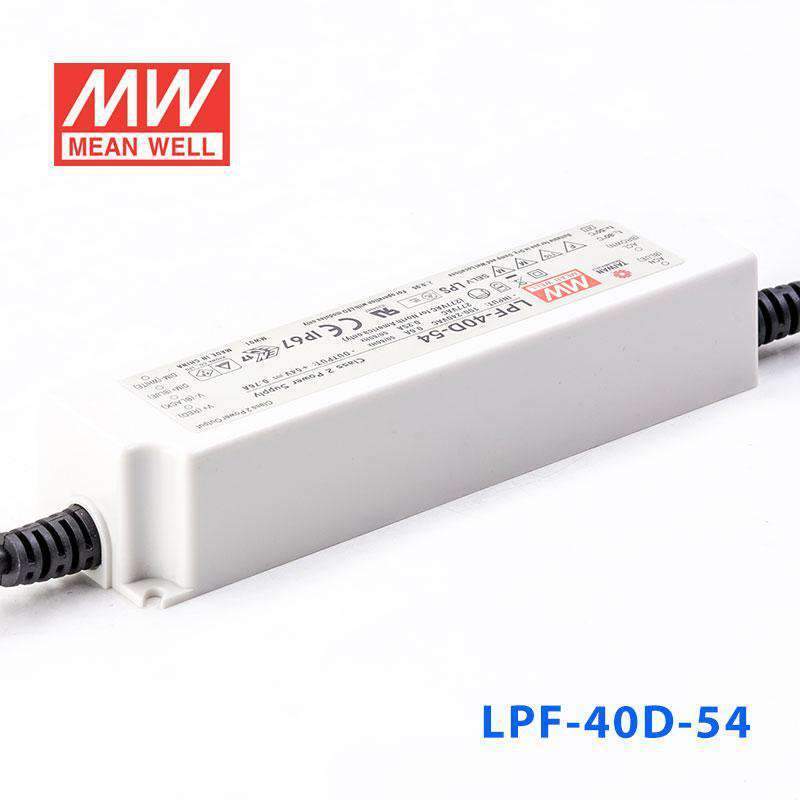

Mean Well LPF-40D-54 Power Supply 40W 54V - Dimmable | Auckland Distributor

Description

Features

Universal AC input (up to 305VAC) / Full range

Built-in active PFC function

Fully isolated plastic case

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type

Fully encapsulated with IP67 level

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Protections: Short circuit / Over current / Over voltage / Over temperature

Suitable for LED lighting and moving sign applications

Suitable for dry, damp, and wet location

Cooling by free air convection

5 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 50A
Over current protection	95% ~108% constant current, auto-recovery
Over voltage protection	110%~150% rated output voltage
Withstand voltage	I/P - O/P: 3.75kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D)
EMC standards	EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	18AWGx2C(30cm)+22AWGx2C (30cm)
Dimension (LxWxH)(mm)	162.5x 43x 32

Specifications

Brand

Mean Well
Series

LPF Series
Power Rating

41.04 Watt
Output Voltage

54 Volt
Rated Current

0.76 Ampere
Input Voltage

90V~305V
Standards Met

CB,CE,EAC,ENEC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

16.25 cm
Width

4.3 cm
Height

3.2 cm
Weight

0.45 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPF-40D-54 with a 54V constant-current LED fixture?

Yes, if the fixture is specified for constant-current operation within the 32-54V range and needs up to 0.76A. This driver delivers 41.04W at 54V and includes built-in 3 in 1 dimming.

Is this driver appropriate for outdoor 54V LED signage or facade lighting?

It can be used for outdoor signage or facade fixtures when the lighting load is a compatible 54V constant-current product and the total demand does not exceed 41.04W. The IP67 waterproof rating and -40°C to +80°C operating temperature support outdoor use.

Can the LPF-40D-54 power dimmable high-voltage linear lighting?

Yes, for compatible constant-current linear LED products operating between 32V and 54V at up to 0.76A. Its 3 in 1 dimming feature makes it suitable where controlled light output is needed.

How much 54V LED strip or lighting load can this driver support?

The maximum output power is 41.04W. To estimate supported length, use 41.04W divided by your strip or fixture's watts per meter, and check your strip rated power per meter before final sizing.

How does the LPF-40D-54 compare with the rest of the LPF-40D range?

The LPF-40D family includes 12V 40.08W 3.34A, 15V 40.08W 2.67A, 20V 40W 2A, 24V 40.08W 1.67A, 30V 40.2W 1.34A, 36V 40.32W 1.12A, 42V 40.32W 0.96A, 48V 40.32W 0.84A, and 54V 41.04W 0.76A. The LPF-40D-54 is the highest-voltage model in that dimmable 40W group.

Model	Power	Voltage	Current	IP Rating
Mean Well LPF-40D-24 Power Supply 40W 24V - Dimmable	40.08W	24V	1.67A	IP67	View
Mean Well LPF-40D-15 Power Supply 40W 15V - Dimmable	40.08W	15V	2.67A	IP67	View
Mean Well LPF-40D-12 Power Supply 40W 12V - Dimmable	40.08W	12V	3.34A	IP67	View
Mean Well LPF-40D-48 Power Supply 40W 48V - Dimmable	40.32W	48V	0.84A	IP67	View
Mean Well LPF-40D-42 Power Supply 40W 42V - Dimmable	40.32W	42V	0.96A	IP67	View
Mean Well LPF-40D-36 Power Supply 40W 36V - Dimmable	40.32W	36V	1.12A	IP67	View
Mean Well LPF-40D-30 Power Supply 40W 30V - Dimmable	40.2W	30V	1.34A	IP67	View
Mean Well LPF-40D-20 Power Supply 40W 20V - Dimmable	40W	20V	2A	IP67	View
