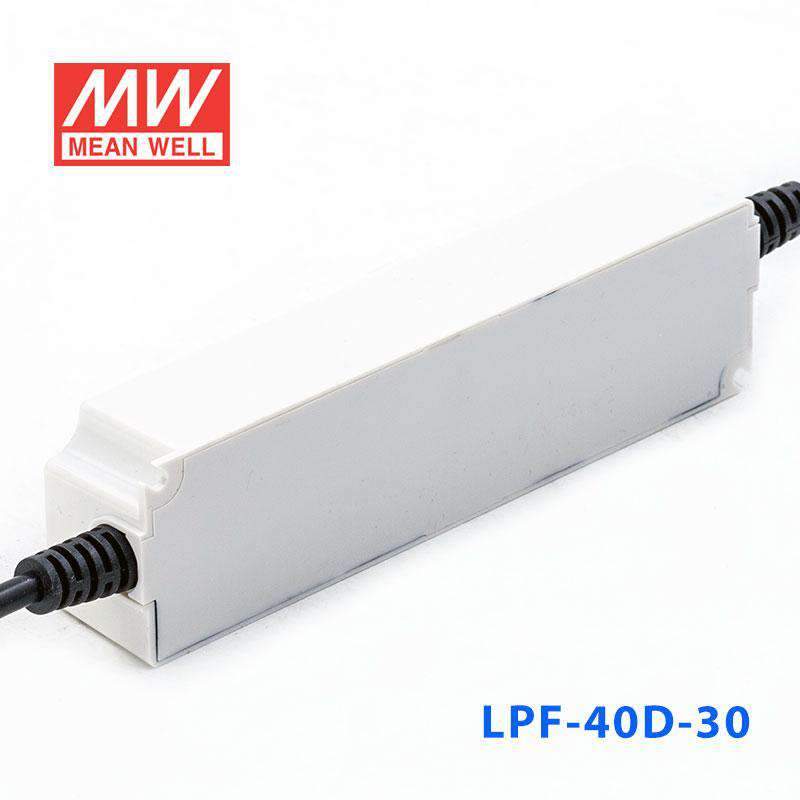

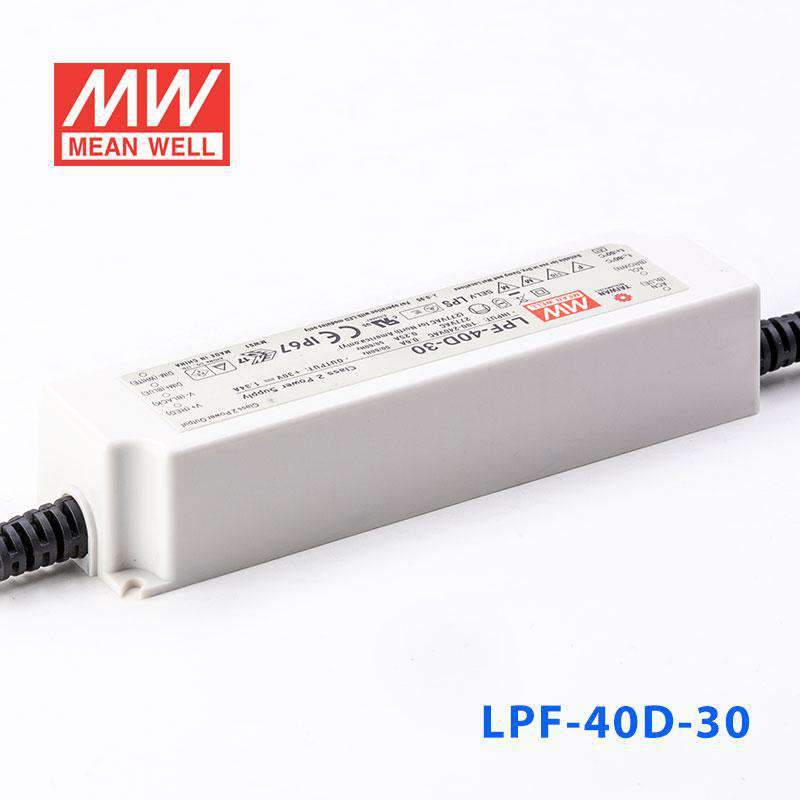

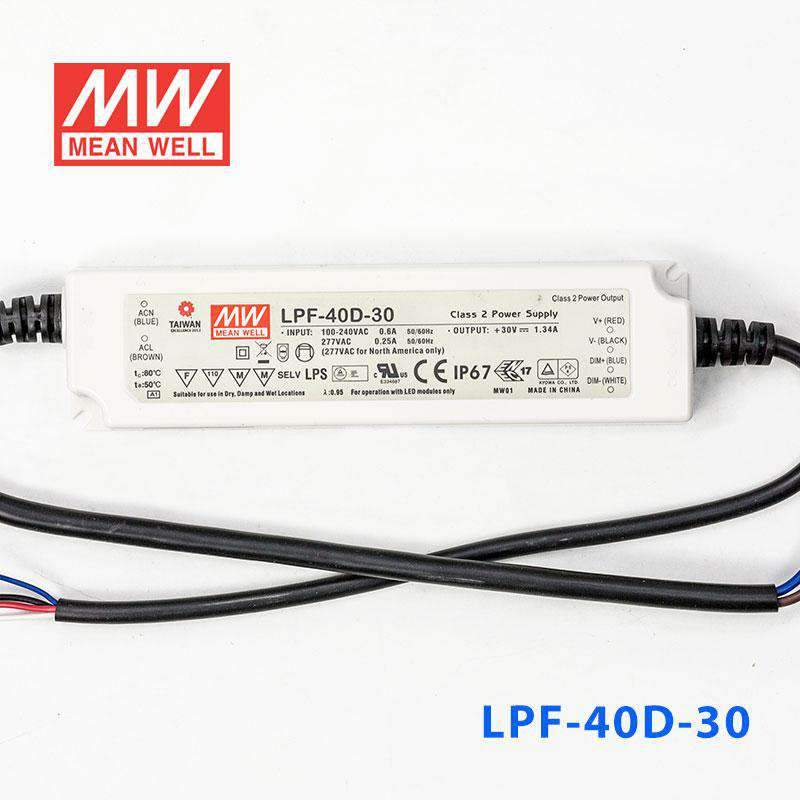

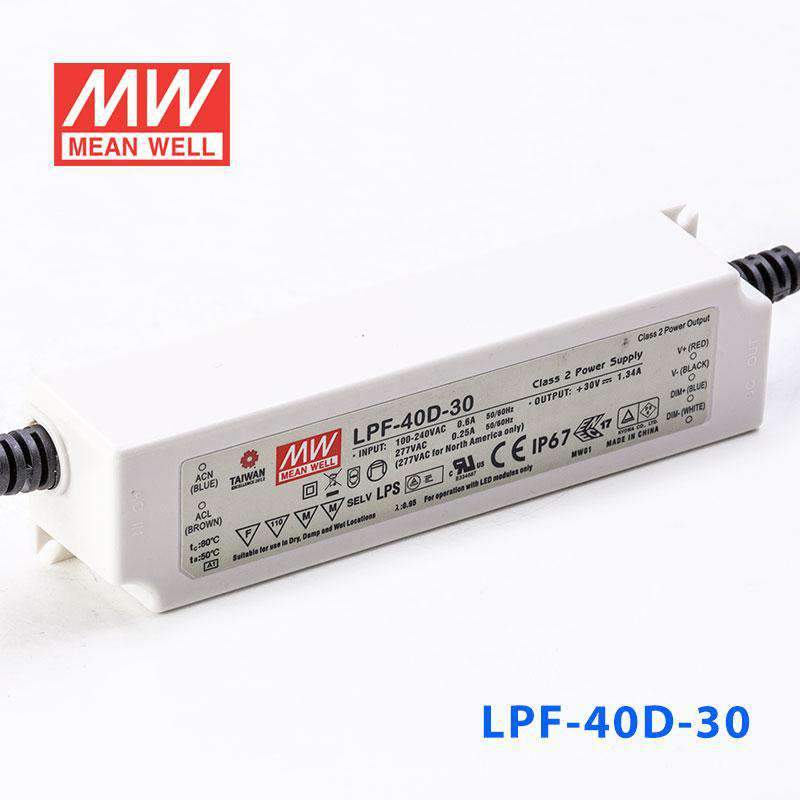

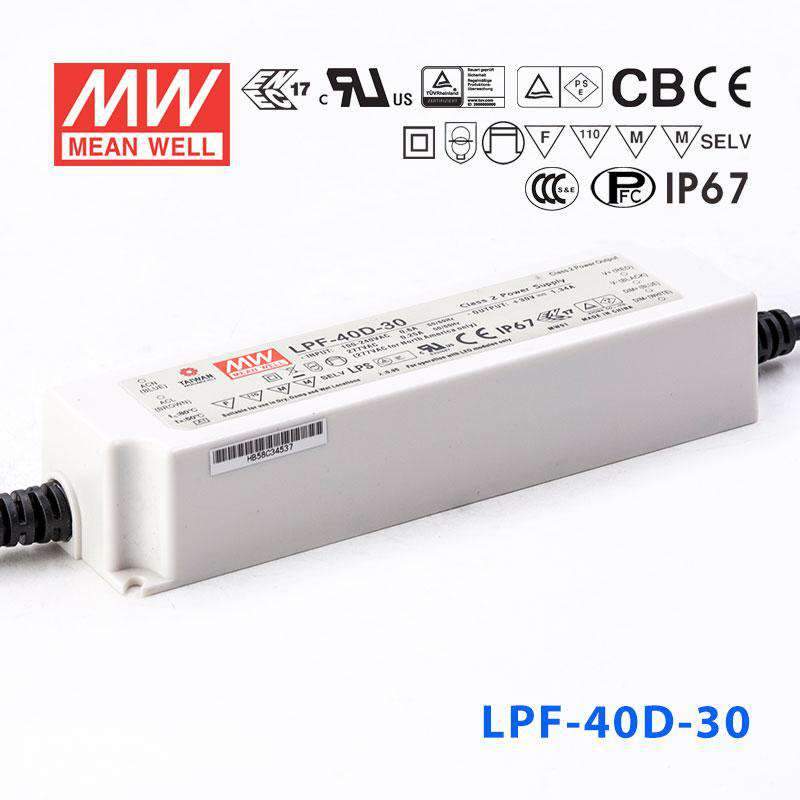

Mean Well LPF-40D-30 Power Supply 40W 30V - Dimmable | Mean Well - LPF Series

Description

Features

Universal AC input (up to 305VAC) / Full range

Built-in active PFC function

Fully isolated plastic case

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type

Fully encapsulated with IP67 level

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Protections: Short circuit / Over current / Over voltage / Over temperature

Suitable for LED lighting and moving sign applications

Suitable for dry, damp, and wet location

Cooling by free air convection

5 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 50A
Over current protection	95% ~108% constant current, auto-recovery
Over voltage protection	110%~150% rated output voltage
Withstand voltage	I/P - O/P: 3.75kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D)
EMC standards	EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	18AWGx2C(30cm)+22AWGx2C (30cm)
Dimension (LxWxH)(mm)	162.5x 43x 32

Specifications

Brand

Mean Well
Series

LPF Series
Power Rating

40.2 Watt
Output Voltage

30 Volt
Rated Current

1.34 Ampere
Input Voltage

90V~305V
Standards Met

CB,CE,EAC,ENEC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

16.25 cm
Width

4.3 cm
Height

3.2 cm
Weight

0.45 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPF-40D-30 for a 30V LED strip lighting project?

Yes, if the strip or fixture is a 30V load and stays within 40.2W total and 1.34A. The built-in 3 in 1 dimming also supports applications that need adjustable brightness.

Is this driver suitable for 30V backlit signage?

It can be a fit for 30V signage lighting products that stay within the driver's 40.2W output capacity. Its IP67 waterproof construction is also useful for signage exposed to outdoor or wet conditions.

Can the LPF-40D-30 be used for dimmable 30V linear architectural lighting?

Yes, for 30V linear lighting systems that operate within 18-30V CC and do not exceed 1.34A. The dimmable design makes it appropriate for architectural lighting where output control matters.

How much 30V LED strip can this driver handle?

Use the rated power for the estimate: 40.2W divided by your strip's rated watts per meter gives the approximate maximum length. Check your strip rated power per meter, and keep the total load within 40.2W and 1.34A.

Is the LPF-40D-30 suitable for outdoor lighting applications?

The IP67 waterproof rating makes it suitable for outdoor and wet-location lighting assemblies where that level of sealing is needed. Its operating temperature range is -40°C to +80°C.

Model	Power	Voltage	Current	IP Rating
Mean Well LPF-40D-24 Power Supply 40W 24V - Dimmable	40.08W	24V	1.67A	IP67	View
Mean Well LPF-40D-15 Power Supply 40W 15V - Dimmable	40.08W	15V	2.67A	IP67	View
Mean Well LPF-40D-12 Power Supply 40W 12V - Dimmable	40.08W	12V	3.34A	IP67	View
Mean Well LPF-40D-54 Power Supply 40W 54V - Dimmable	41.04W	54V	0.76A	IP67	View
Mean Well LPF-40D-48 Power Supply 40W 48V - Dimmable	40.32W	48V	0.84A	IP67	View
Mean Well LPF-40D-42 Power Supply 40W 42V - Dimmable	40.32W	42V	0.96A	IP67	View
Mean Well LPF-40D-36 Power Supply 40W 36V - Dimmable	40.32W	36V	1.12A	IP67	View
Mean Well LPF-40D-20 Power Supply 40W 20V - Dimmable	40W	20V	2A	IP67	View

{ "id":8423850246443, "variants" :[{ "context":"default", "variant_id": 45636052025643, "sku":"LPF-40D-30", "inventory_qty" : 1, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Features

Universal AC input (up to 305VAC) / Full range

Built-in active PFC function

Fully isolated plastic case

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type

Fully encapsulated with IP67 level

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Protections: Short circuit / Over current / Over voltage / Over temperature

Suitable for LED lighting and moving sign applications

Suitable for dry, damp, and wet location

Cooling by free air convection

5 years warranty

General Specification

AC input voltage range

90~305VAC ; 127~431VDC

AC inrush current (max.)

Cold start, 50A

Over current protection

95% ~108% constant current, auto-recovery

Over voltage protection

110%~150% rated output voltage

Withstand voltage

I/P - O/P: 3.75kVAC

Working temperature

-40~+70ºC (refer to output derating curve)

Safety standards

UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D)

EMC standards

EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11

Connection Input

UL rated, SJTW 18AWGx2C (30cm)

Connection Output

18AWGx2C(30cm)+22AWGx2C (30cm)

Dimension (LxWxH)(mm)

162.5x 43x 32
