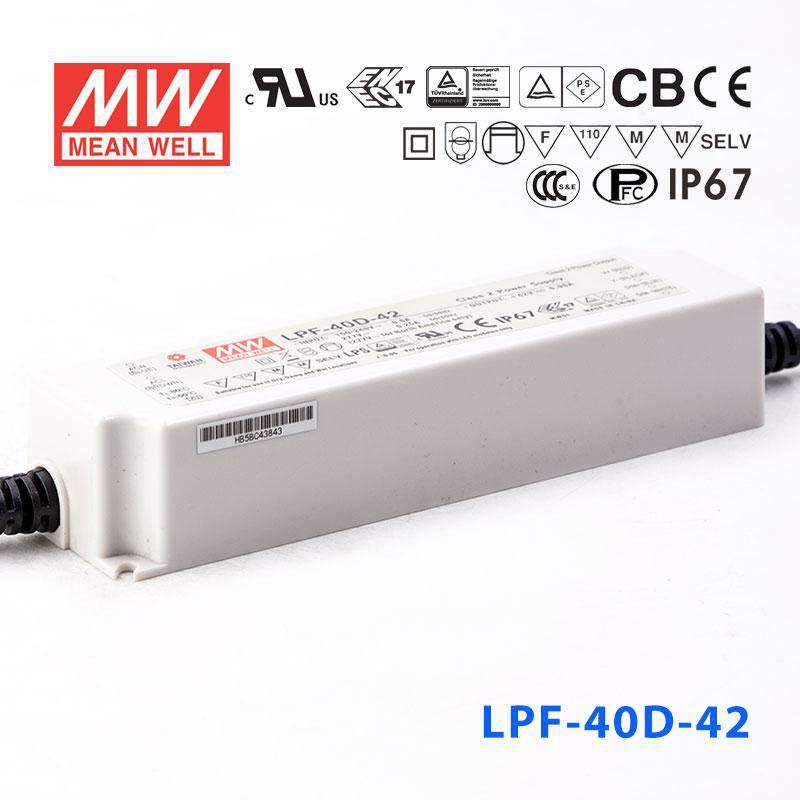

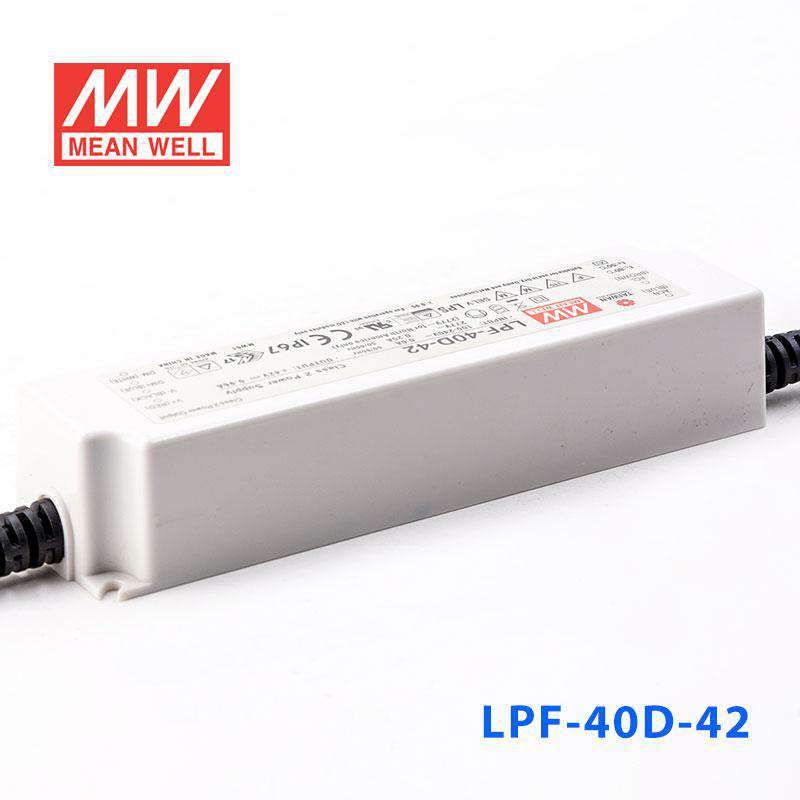

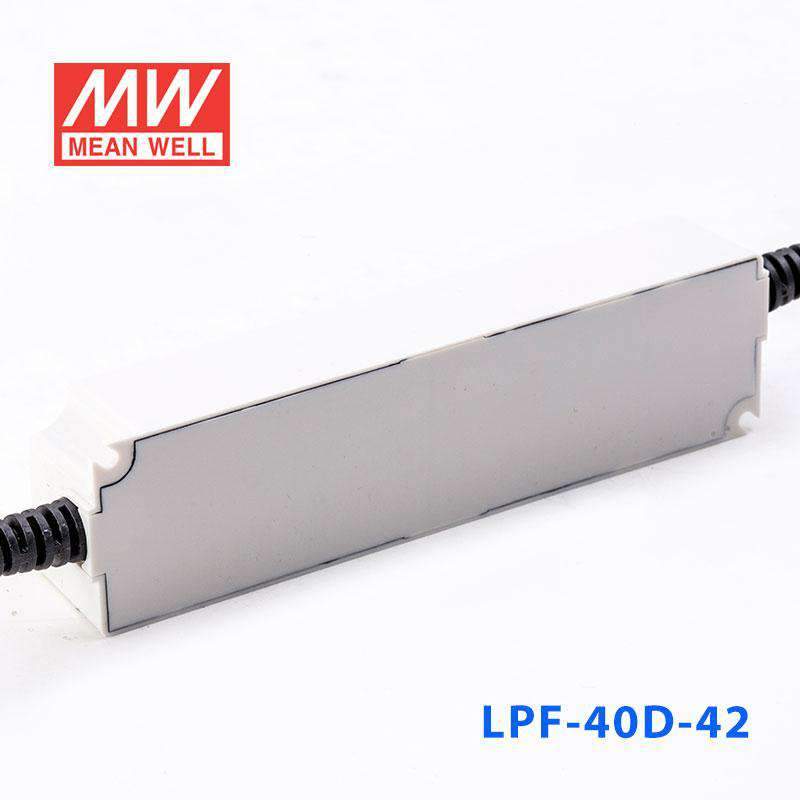

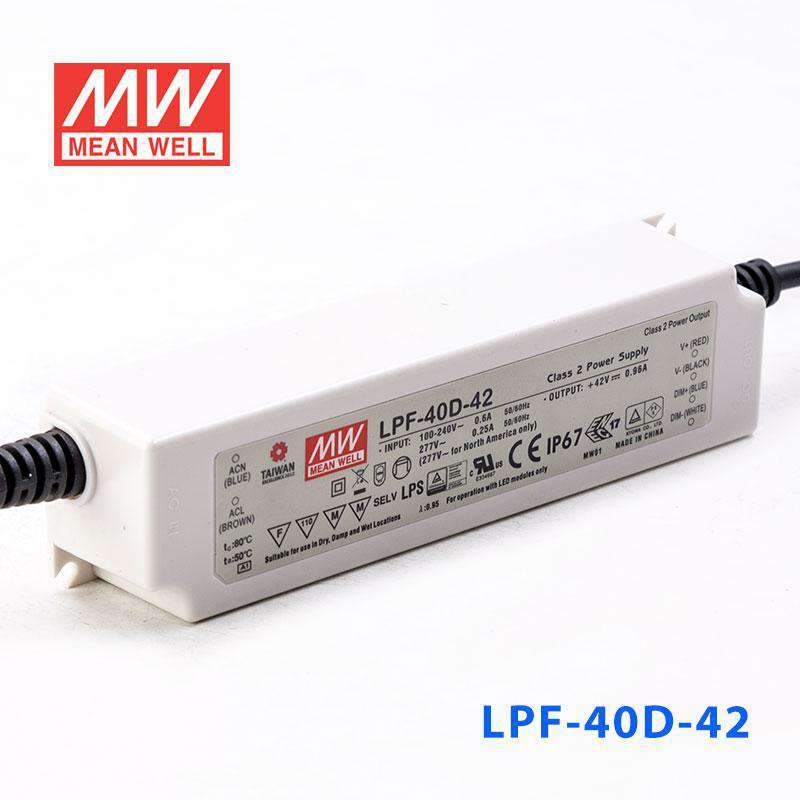

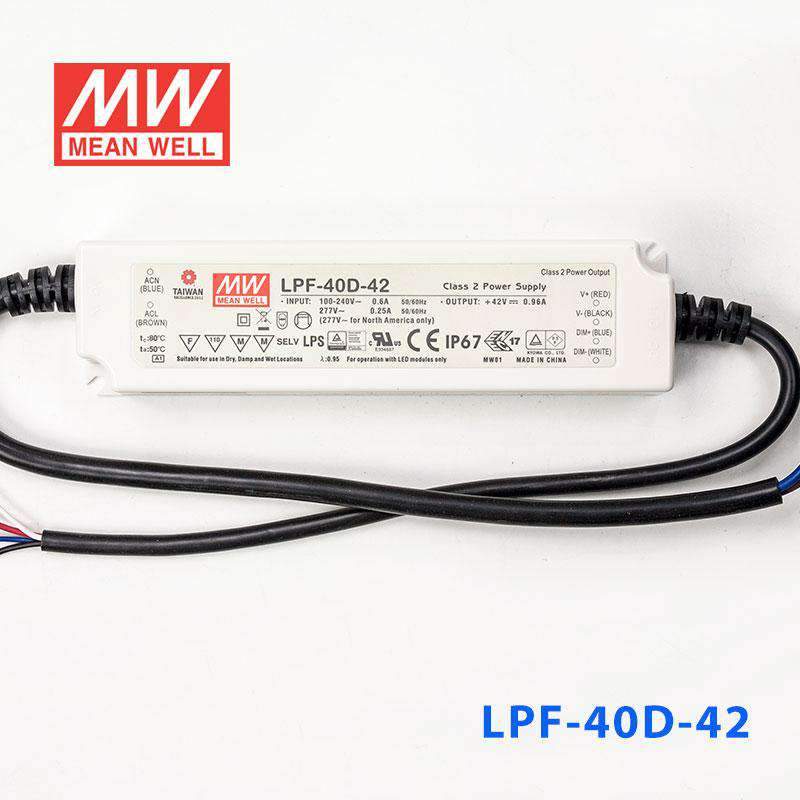

Mean Well LPF-40D-42 40W 42V Dimmable Power Supply | Auckland Distributor

Description

Features

Universal AC input (up to 305VAC) / Full range

Built-in active PFC function

Fully isolated plastic case

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type

Fully encapsulated with IP67 level

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Protections: Short circuit / Over current / Over voltage / Over temperature

Suitable for LED lighting and moving sign applications

Suitable for dry, damp, and wet location

Cooling by free air convection

5 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 50A
Over current protection	95% ~108% constant current, auto-recovery
Over voltage protection	110%~150% rated output voltage
Withstand voltage	I/P - O/P: 3.75kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D)
EMC standards	EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	18AWGx2C(30cm)+22AWGx2C (30cm)
Dimension (LxWxH)(mm)	162.5x 43x 32

Specifications

Brand

Mean Well
Series

LPF Series
Power Rating

40.32 Watt
Output Voltage

42 Volt
Rated Current

0.96 Ampere
Input Voltage

90V~305V
Standards Met

CB,CE,EAC,ENEC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

16.25 cm
Width

4.3 cm
Height

3.2 cm
Weight

0.45 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPF-40D-42 for a 42V constant-current LED sign module?

Yes, if the sign module is designed for constant-current operation within the 25-42V range and needs up to 0.96A. This driver provides 40.32W at 42V with built-in 3 in 1 dimming, so it fits dimmable 42V LED lighting loads within those limits.

Is this driver suitable for outdoor architectural lighting at 42V?

It can be used for outdoor architectural LED fixtures if the fixture is rated for 42V constant-current operation and no more than 40.32W. The IP67 waterproof rating and -40°C to +80°C operating temperature support wet and exposed environments.

Can the LPF-40D-42 run dimmable LED lighting for display or signage projects?

Yes, it is intended for dimmable constant-current LED loads and includes built-in 3 in 1 dimming. The output is 42V at 0.96A, so the lighting load needs to fall within the 25-42V constant-current range and stay under 40.32W.

How much 42V LED strip or linear lighting can this driver support?

The maximum load is 40.32W. To estimate supported length, divide 40.32W by your strip or linear light's rated watts per meter; for example, the formula is 40.32W ÷ watts per meter = maximum length, and you should check your strip rated power per meter.

What is the difference between the LPF-40D-42 and the other LPF-40D models?

Within the LPF-40D series, the dimmable 40W models are 12V 40.08W 3.34A, 15V 40.08W 2.67A, 20V 40W 2A, 24V 40.08W 1.67A, 30V 40.2W 1.34A, 36V 40.32W 1.12A, 42V 40.32W 0.96A, 48V 40.32W 0.84A, and 54V 41.04W 0.76A. The LPF-40D-42 version is the 42V option in that group.

Model	Power	Voltage	Current	IP Rating
Mean Well LPF-40D-24 Power Supply 40W 24V - Dimmable	40.08W	24V	1.67A	IP67	View
Mean Well LPF-40D-15 Power Supply 40W 15V - Dimmable	40.08W	15V	2.67A	IP67	View
Mean Well LPF-40D-12 Power Supply 40W 12V - Dimmable	40.08W	12V	3.34A	IP67	View
Mean Well LPF-40D-54 Power Supply 40W 54V - Dimmable	41.04W	54V	0.76A	IP67	View
Mean Well LPF-40D-48 Power Supply 40W 48V - Dimmable	40.32W	48V	0.84A	IP67	View
Mean Well LPF-40D-36 Power Supply 40W 36V - Dimmable	40.32W	36V	1.12A	IP67	View
Mean Well LPF-40D-30 Power Supply 40W 30V - Dimmable	40.2W	30V	1.34A	IP67	View
Mean Well LPF-40D-20 Power Supply 40W 20V - Dimmable	40W	20V	2A	IP67	View
