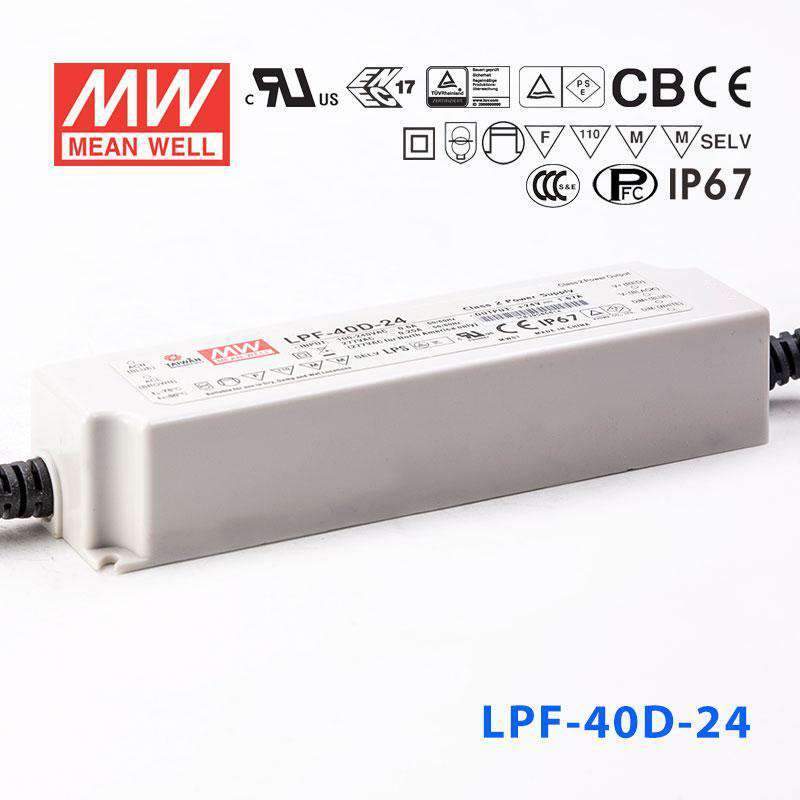

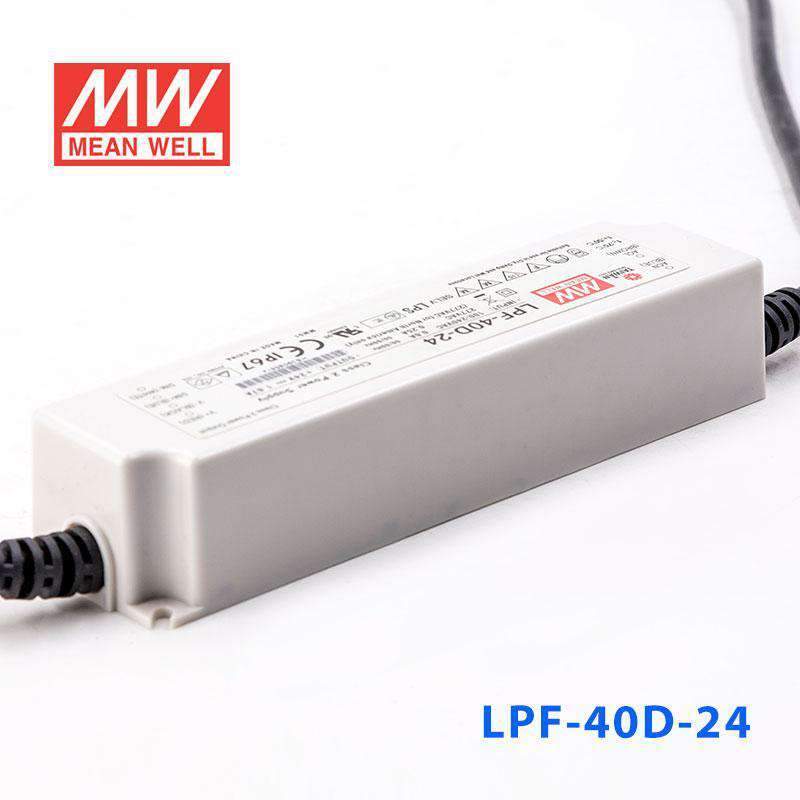

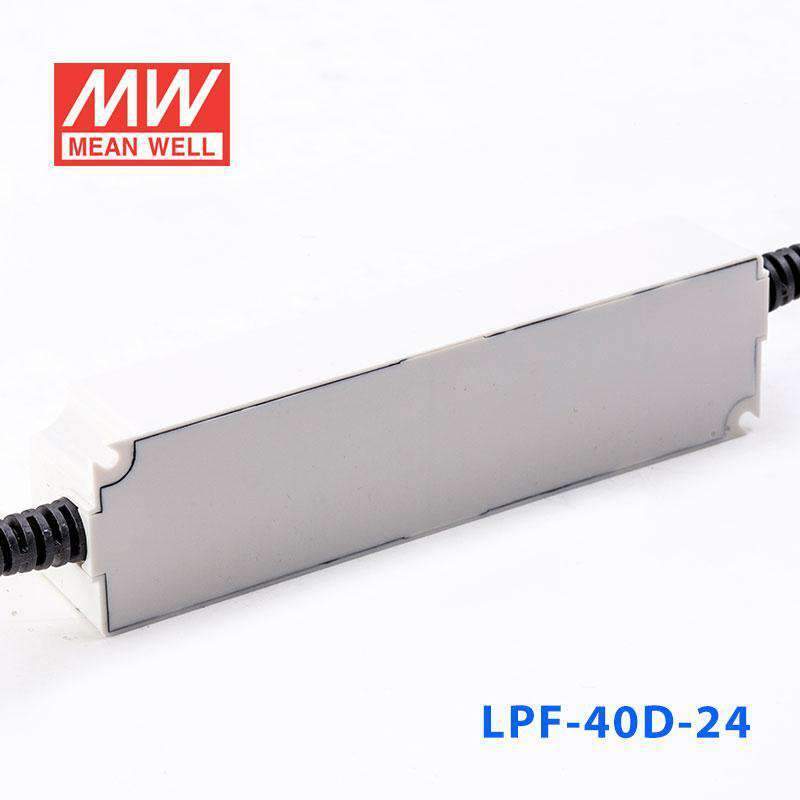

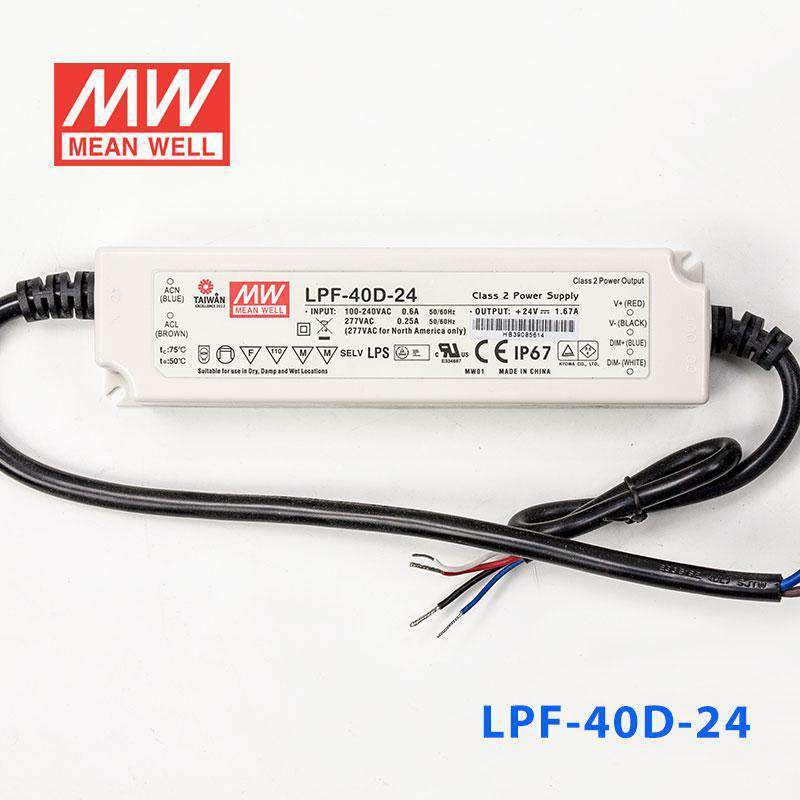

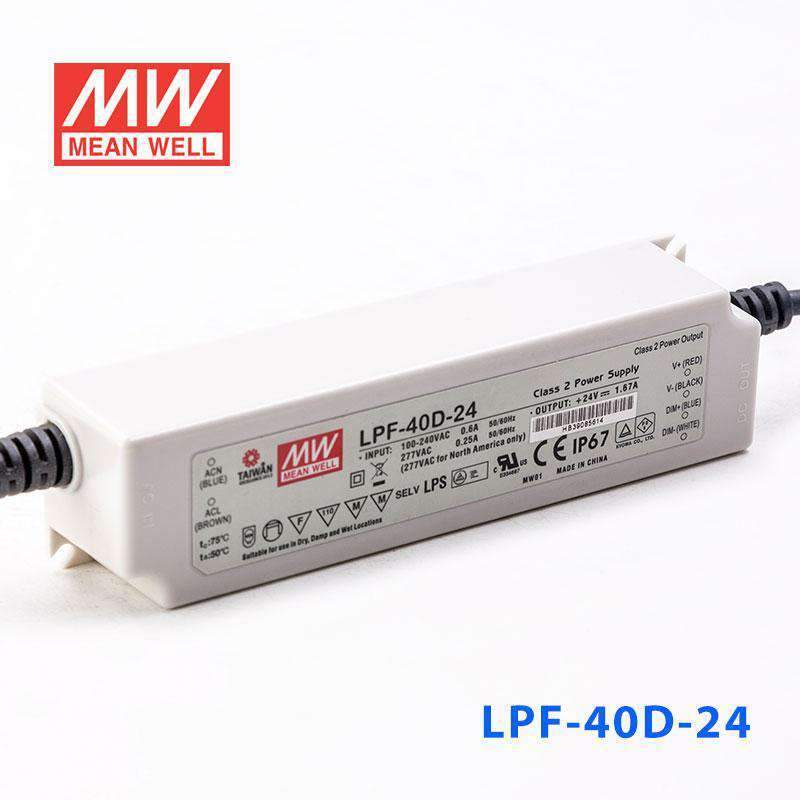

Mean Well LPF-40D-24 LED Driver | 40W 24V Power Supply - Dimmable

Description

Features

Universal AC input (up to 305VAC) / Full range

Built-in active PFC function

Fully isolated plastic case

Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type

Fully encapsulated with IP67 level

Class 2 power unit / Pass LPS

Isolation class II, no F.G.

Protections: Short circuit / Over current / Over voltage / Over temperature

Suitable for LED lighting and moving sign applications

Suitable for dry, damp, and wet location

Cooling by free air convection

5 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 50A
Over current protection	95% ~108% constant current, auto-recovery
Over voltage protection	110%~150% rated output voltage
Withstand voltage	I/P - O/P: 3.75kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D)
EMC standards	EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	18AWGx2C(30cm)+22AWGx2C (30cm)
Dimension (LxWxH)(mm)	162.5x 43x 32

Specifications

Brand

Mean Well
Series

LPF Series
Power Rating

40.08 Watt
Output Voltage

24 Volt
Rated Current

1.67 Ampere
Input Voltage

90V~305V
Standards Met

CB,CE,EAC,ENEC,PSE,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~80°C
Warranty

5 Year
Length

16.25 cm
Width

4.3 cm
Height

3.2 cm
Weight

0.45 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the LPF-40D-24 for 24V LED strip cove lighting?

Yes, if the 24V strip load stays within 40.08W and 1.67A. The built-in 3 in 1 dimming is useful for cove lighting where adjustable light level is needed.

Is this driver suitable for 24V sign lighting or light boxes?

It can be used for 24V sign lighting products as long as the total load does not exceed 40.08W. Its IP67 housing also makes it suitable where sign lighting equipment may be exposed to moisture.

Can the LPF-40D-24 run 24V retail shelf or display lighting?

Yes, for 24V LED strip or linear lighting loads within the 40.08W output limit. The 14-24V CC range and dimming support make it a practical option for controlled retail display lighting.

What is the maximum 24V LED strip length this power supply can support?

Estimate the maximum length by dividing 40.08W by your strip's rated watts per meter. Check your strip rated power per meter, and keep the full 24V load within 40.08W and 1.67A.

Is the LPF-40D-24 okay for wet or exposed conditions?

Yes, its IP67 waterproof rating indicates suitability for wet and outdoor conditions when that enclosure level is required. It is also rated to operate from -40°C to +80°C.

Model	Power	Voltage	Current	IP Rating
Mean Well LPF-40D-15 Power Supply 40W 15V - Dimmable	40.08W	15V	2.67A	IP67	View
Mean Well LPF-40D-12 Power Supply 40W 12V - Dimmable	40.08W	12V	3.34A	IP67	View
Mean Well LPF-40D-54 Power Supply 40W 54V - Dimmable	41.04W	54V	0.76A	IP67	View
Mean Well LPF-40D-48 Power Supply 40W 48V - Dimmable	40.32W	48V	0.84A	IP67	View
Mean Well LPF-40D-42 Power Supply 40W 42V - Dimmable	40.32W	42V	0.96A	IP67	View
Mean Well LPF-40D-36 Power Supply 40W 36V - Dimmable	40.32W	36V	1.12A	IP67	View
Mean Well LPF-40D-30 Power Supply 40W 30V - Dimmable	40.2W	30V	1.34A	IP67	View
Mean Well LPF-40D-20 Power Supply 40W 20V - Dimmable	40W	20V	2A	IP67	View
