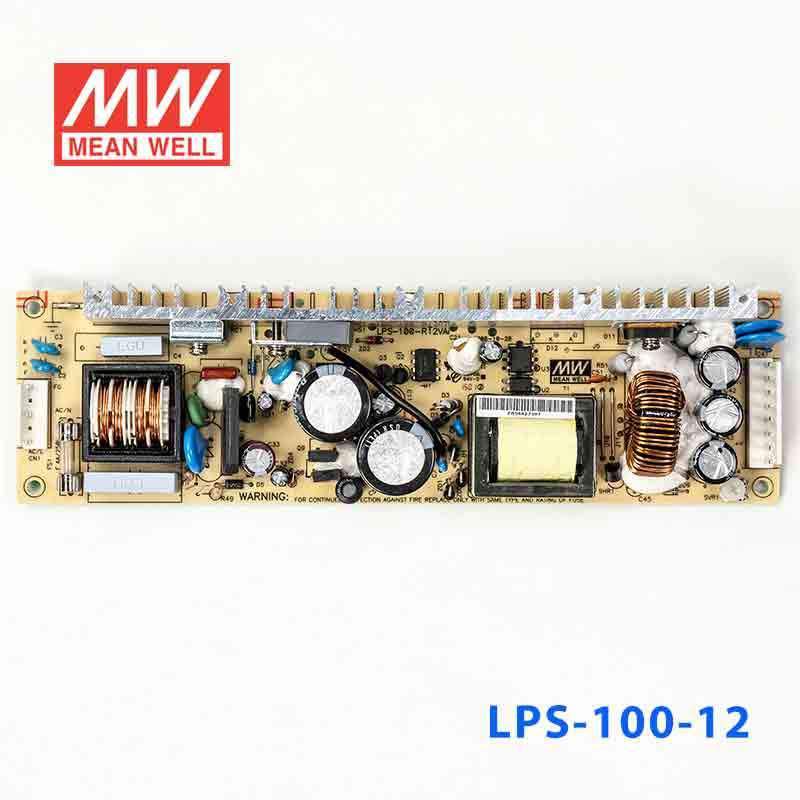

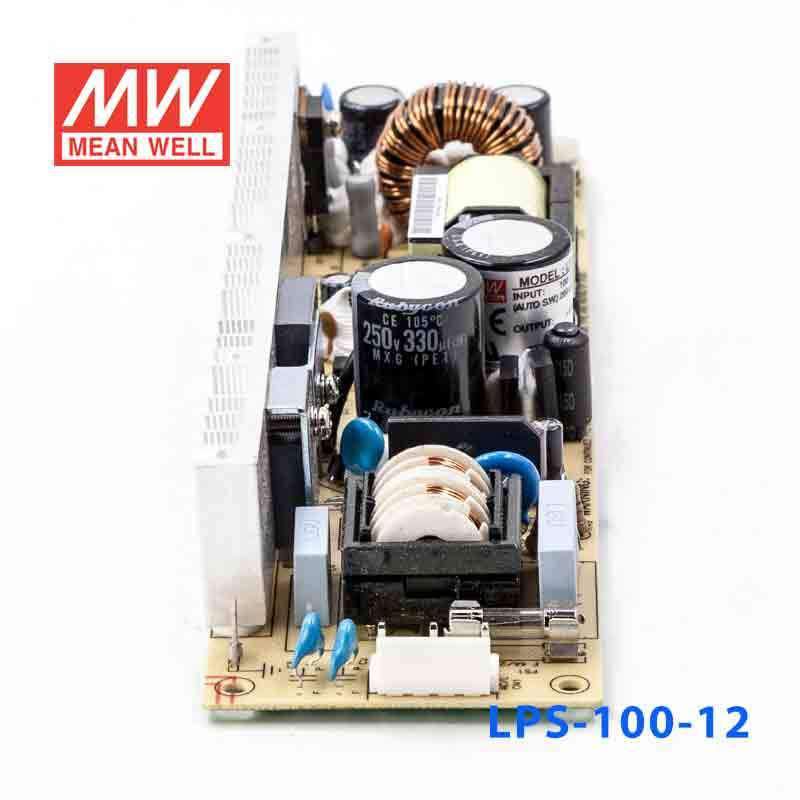

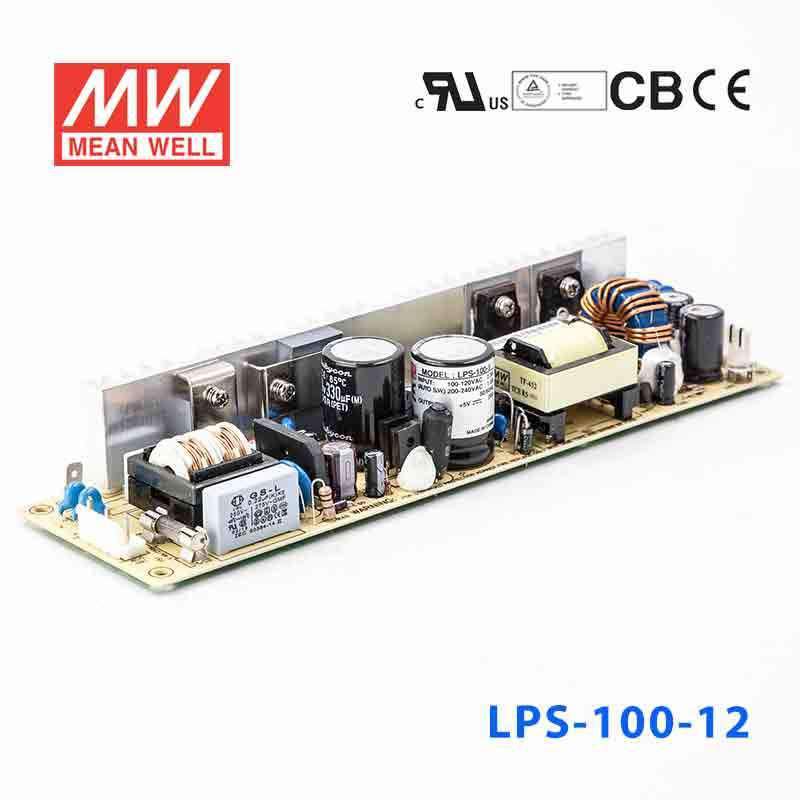

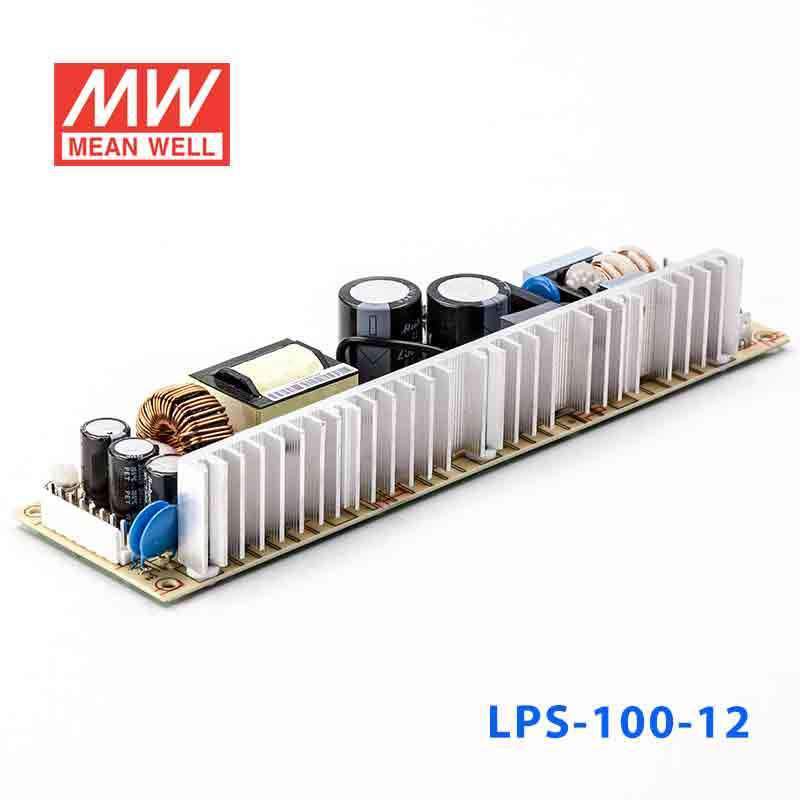

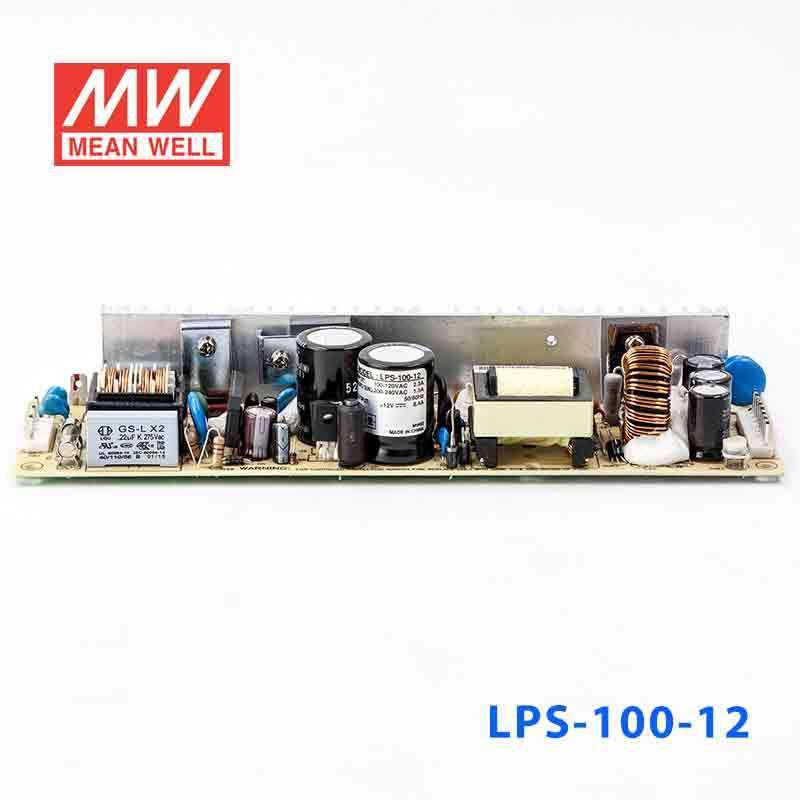

Mean Well LPS-100-12 Power Supply 100W 12V
Please Login for Pricing
Description
Description
The LPS-100 is a 100W Mean Well power converter (input range: 88~132VAC).
Key Features
- ✓ Input voltage range: 88~132VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL60950-1, TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLPS Series
-
Power Rating100.8 Watt
-
Output Voltage12 Volt
-
Rated Current8.4 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length22.2 cm
-
Width6.2 cm
-
Height3.2 cm
-
Weight0.45 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPS-100-12 for a 12V PLC panel or industrial control cabinet?
Yes, it is a constant voltage 12V power supply rated for up to 8.4A. That makes it suitable for 12V industrial control, PLC support hardware, or automation subsystems that stay within the 100.8W output rating.
Is the LPS-100-12 suitable for embedded or IT hardware that needs a slim 12V power supply?
It can be a good fit where low profile matters because the unit is small and compact and the features list calls out a low-profile design with 23mm thickness. Electrically, it provides 12V constant-voltage output up to 8.4A from an 88-264VAC input.
Can this power supply be used in equipment that needs remote on-off control?
Yes, the features list includes built-in remote ON-OFF control. That can be useful in industrial, embedded, or automation equipment where the 12V supply needs to be controlled as part of the system design.
What is the difference between the LPS-100-12 and related LPS models?
The listed LPS-100 siblings are LPS-100-13.5 at 101.25W, 13.5V, 7.5A; LPS-100-15 at 100.5W, 15V, 6.7A; LPS-100-24 at 100.8W, 24V, 4.2A; LPS-100-27 at 102.6W, 27V, 3.8A; LPS-100-3.3 at 66W, 3.3V, 20A; LPS-100-48 at 100.8W, 48V, 2.1A; LPS-100-5 at 100W, 5V, 20A; and LPS-100-7.5 at 99.75W, 7.5V, 13.3A. Other listed siblings are LPS-50-12 at 50.4W, 12V, 4.2A; LPS-50-15 at 51W, 15V, 3.4A; LPS-50-24 at 50.4W, 24V, 2.1A; LPS-50-3.3 at 33W, 3.3V, 10A; LPS-50-48 at 52.8W, 48V, 1.1A; LPS-50-5 at 50W, 5V, 10A; LPS-75-12 at 74.4W, 12V, 6.2A; LPS-75-15 at 75W, 15V, 5A; LPS-75-24 at 76.8W, 24V, 3.2A; LPS-75-3.3 at 49.5W, 3.3V, 15A; LPS-75-48 at 75W, 48V, 1.56A; and LPS-75-5 at 75W, 5V, 15A. The LPS-100-12 is the 100.8W, 12V, 8.4A member of that family.
Is the LPS-100-12 suitable for outdoor or exposed installations?
The provided specs give an operating temperature range of -10°C to +60°C, but no IP rating is listed. Based on the available data, temperature capability is specified, while outdoor exposure protection is not.
Other LPS-100 Models
8 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well LPS-100-24 Power Supply 100W 24V | 100.8W | 24V | 4.2A | View |
| Mean Well LPS-100-7.5 Power Supply 100W 7.5V | 99.75W | 7.5V | 13.3A | View |
| Mean Well LPS-100-5 Power Supply 100W 5V | 100W | 5V | 20A | View |
| Mean Well LPS-100-48 Power Supply 100W 48V | 100.8W | 48V | 2.1A | View |
| Mean Well LPS-100-3.3 Power Supply 66W 3.3V | 66W | 3.3V | 20A | View |
| Mean Well LPS-100-27 Power Supply 102W 27V | 102.6W | 27V | 3.8A | View |
| Mean Well LPS-100-15 Power Supply 100W 15V | 100.5W | 15V | 6.7A | View |
| Mean Well LPS-100-13.5 Power Supply 101W 13.5V | 101.25W | 13.5V | 7.5A | View |
