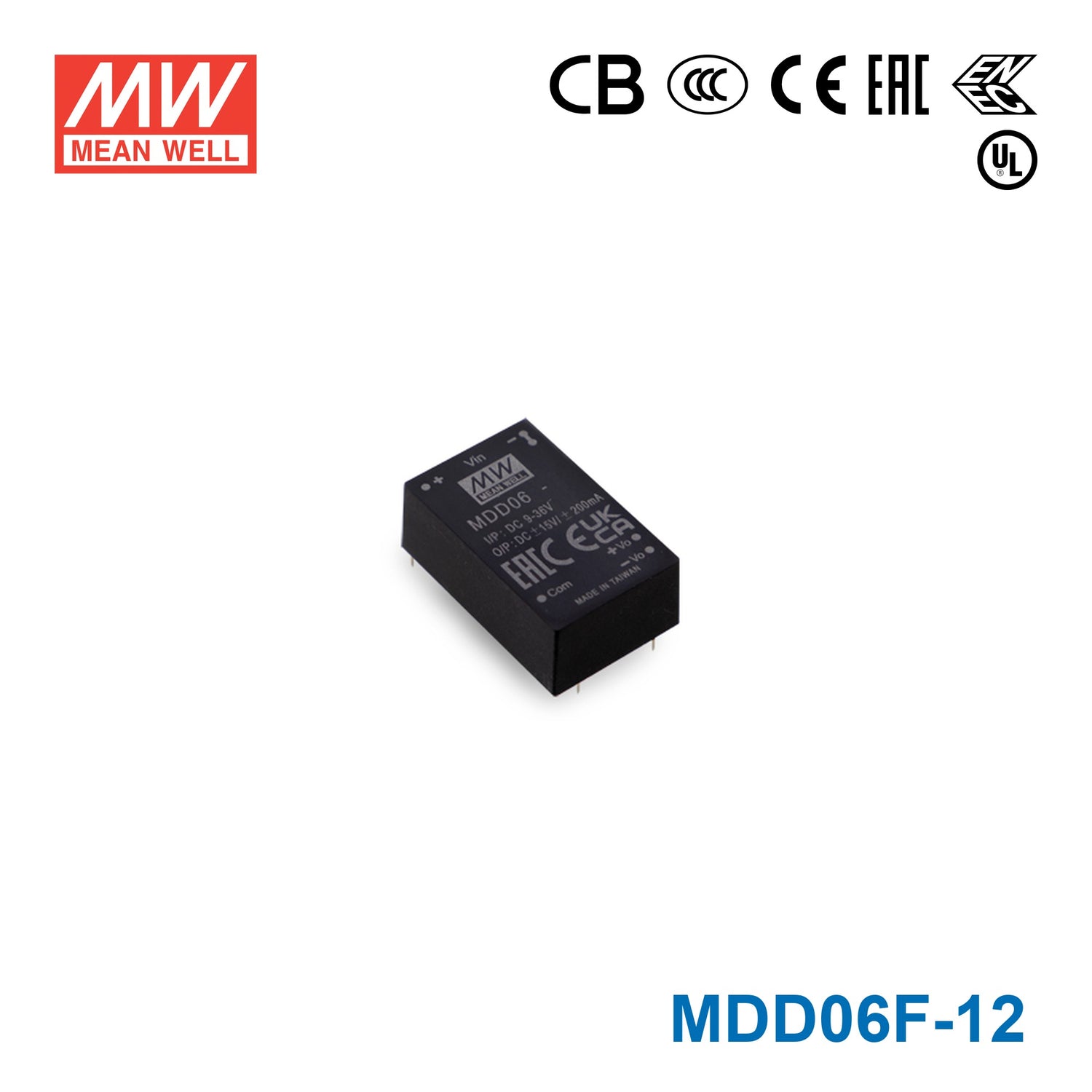

Mean Well MDD06F-12 Medical Grade DC/DC Converter 6W - 9-36V input, 12 and -12V output

It fits low-power 12V control and instrumentation sections that need constant-voltage output and remain within 0.25A. With 6W available, it offers more 12V output capacity than a 3W model while still targeting compact electronics rather than heavy loads.

Yes, it is appropriate for embedded automation or monitoring subcircuits that need 12V from the listed 9-36V input range. The output is limited to 12V at 0.25A, so the design should stay within that current and power envelope.

It is designed as a medical-grade DC/DC converter and carries CB, CCC, CE, EAC, ENEC, and UL certifications. For electrical sizing, it provides 12V constant-voltage output at up to 0.25A with 6W total output power.

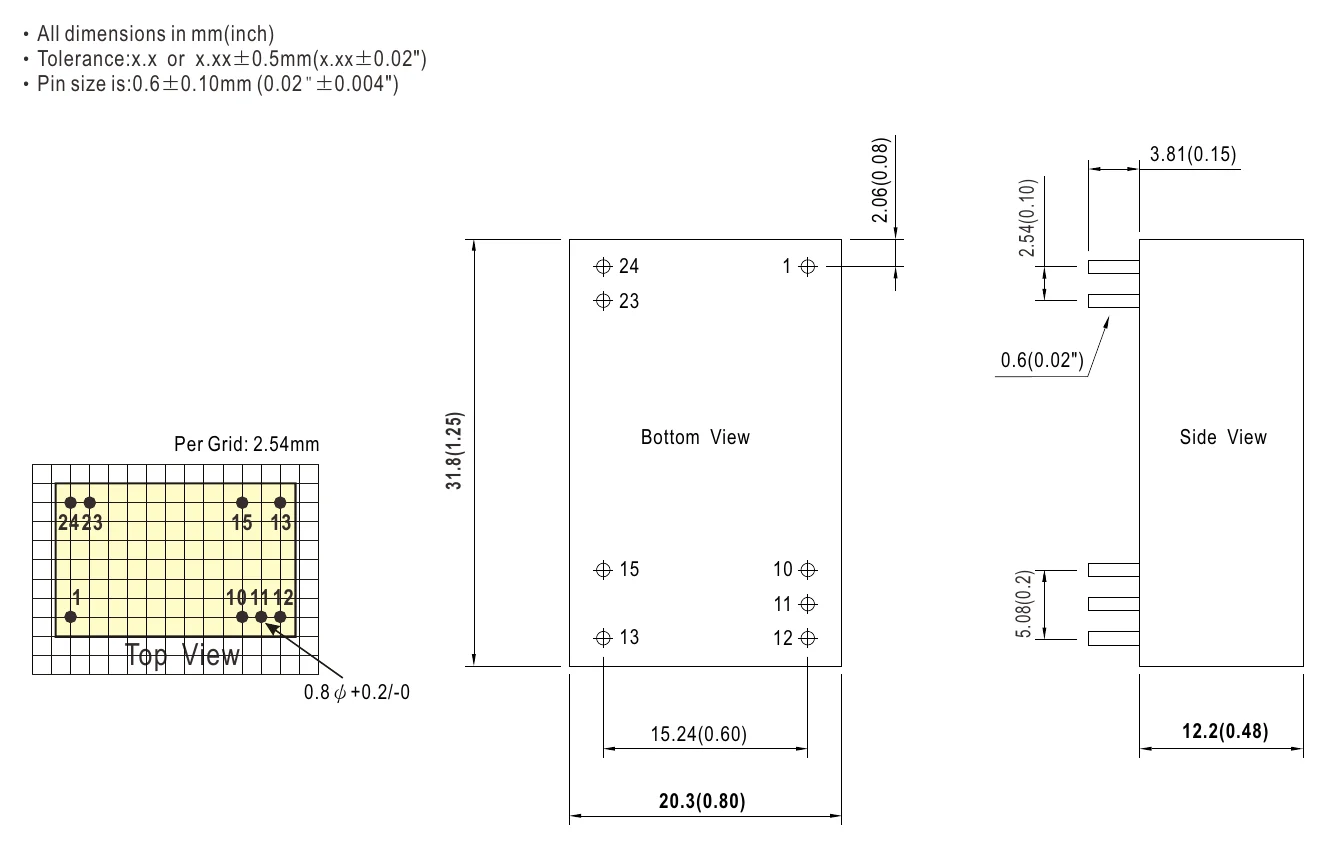

The MDD06F-12 outputs 12V at 0.25A, while the MDD06F-05 outputs 5V at 0.6A and the MDD06F-15 outputs 15V at 0.2A. All three share the same 6W power rating, 9-36V input range, -40°C to +90°C operating temperature range, 31.8 × 20.3 × 12.2 mm dimensions, and 0.017 kg weight.

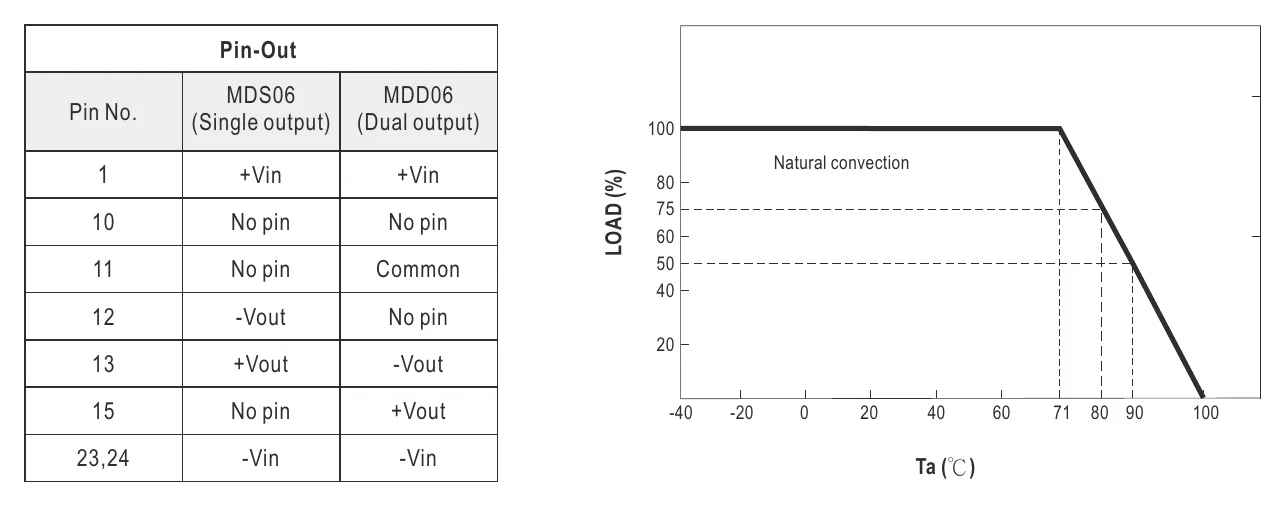

The published operating temperature range is -40°C to +90°C, so it supports broad thermal conditions within a protected design. Because no IP rating is listed, the specs do not confirm direct outdoor, wet, or dust-exposed use.
