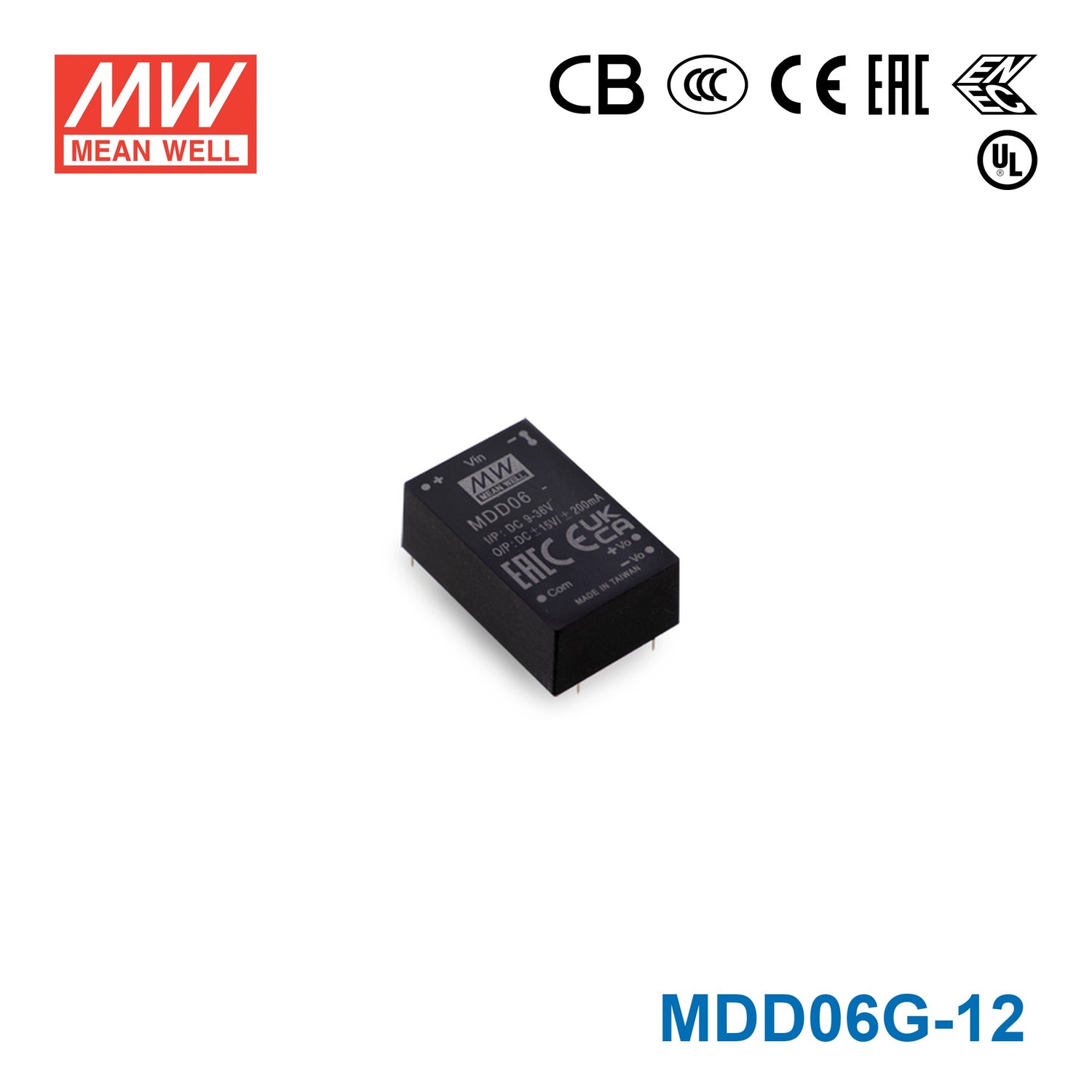

Mean Well MDD06G-12 Medical Grade DC/DC Converter 6W - 18-75V input, 12 and -12V output

Yes, it is a fit for low-power industrial or automation circuits that need 12V and -12V constant-voltage output. The converter provides 6W total power with 0.25A output current from an 18-75VAC input range.

It is appropriate for embedded analog and instrumentation sections that need dual 12V rails and stay within the 6W power limit. The 0.25A output current makes it better suited to low-power boards than heavier 12V loads.

Yes, this medical grade model is intended for equipment operating from the stated 18-75VAC input range and needing 12V and -12V output. Its compact 31.8 × 20.3 × 12.2 mm size also helps in space-constrained assemblies.

It can, since the unit weighs 0.017 kg and has a small footprint of 31.8 × 20.3 × 12.2 mm. Those specs make it practical for compact embedded and automation electronics that require ±12V power.

All three are 6W medical grade DC/DC converters with the same 18-75VAC input range. The difference is output: the MDD06G-05 is 5V at 0.6A, the MDD06G-12 is 12V at 0.25A, and the MDD06G-15 is 15V at 0.2A.

The datasheet details an operating temperature range of -40°C to +90°C, which supports use in demanding temperature environments. No IP rating is listed in the provided specs, so the product data does not define it as outdoor rated.
