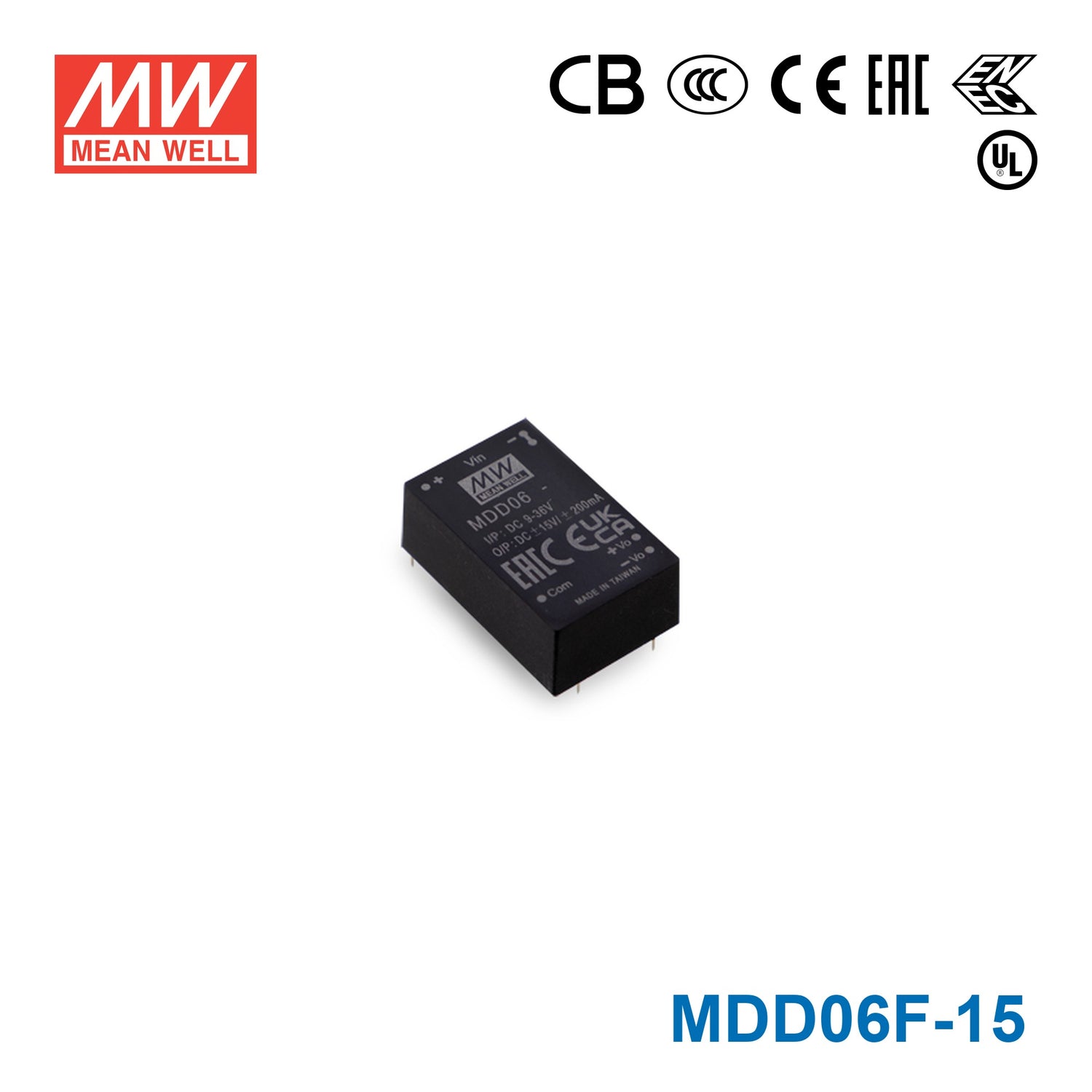

Mean Well MDD06F-15 Medical Grade DC/DC Converter 6W - 9-36V input, 15 and -15V output 400mA

15V6WDC/DCMedical Grade

SKU MDD06F-15

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

MDD06F-15 is the ±15V output model of this series: rated power 6W, typical efficiency 82%.

MDS06 and MDD06 series are 6W isolated and regulated module type medical grade DC-DC converter with DIP 24 package. It features international standard pins, a high efficiency up to 84%, wide working temperature range -40~+90℃, 6KVDC or 4.2KVAC I/P-O/P high isolation voltage, compliance with IEC60601-1 medical standard, continuous-mode short circuit protection, etc. The models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage, 5V/12V/15V for single output and ±5V/±12V/±15V for dual output. Which are suitable for medical systems, ultra low leakage current.

Features

DIP 24 package with international standard pinout
4:1 wide input range
Low patient leakage current <5μA
Wide operating temperature range -40 ~ +90℃
Medical safety approved (2xMOPP) according to IEC60601-1
Protections: Short circuit (Continuous) / Overload / UVLO
6KVDC or 4.2KVAC high I/O isolation (Reinforced isolation)
3 years warranty

Specifications

MDD06F-15Specifications from the official datasheet (2025-07-28 edition)

INPUT

INPUT VOLTAGE (RANGE): Normal 12V,24V (9 ~ 36V)
INPUT CURRENT NO LOAD: 30mA
INPUT CURRENT FULL LOAD: 612mA
VOLTAGE RANGE: 9 ~ 36Vdc ,
SURGE VOLTAGE (100ms max.): F models : 50Vdc ; G models : 100Vdc
FILTER: Pi type
PROTECTION (Typ.): Fuse recommended. F models: 2A slow-blow Type, G models: 1A slow-blow Type

OUTPUT

OUTPUT VOLTAGE: ±15V
OUTPUT CURRENT: ±20 ~ 200mA
EFFICIENCY (TYP.): 82%
CAPACITOR LOAD (MAX.)^{* For each output}: *47μF
VOLTAGE ACCURACY: ±2%
RATED POWER: 6W
RIPPLE & NOISE^Note.2: 100mVp-p
LINE REGULATION^Note.3: ±0.5%
LOAD REGULATION^Note.4: ±0.5%
SWITCHING FREQUENCY (Typ.): 280KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 110 ~ 250% rated output power Protection type : Recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT Start-up voltage: 8.8Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 8Vdc

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.05% / ℃ (0 ~ 71℃)
SOLDERING TEMPERATURE: 1.5mm from case of 3 ~ 5sec./265℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: IEC60601-1(LVD) 3rd edition, EAC TP TC 020/2011(EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:6KVDC or 4.2KVAC
ISOLATION RESISTANCE: I/P-O/P:1000M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 20pF
ISOLATION LEVEL: Primary-secondary: 2xMOPP when system input voltage is with 250VAC, 50/60Hz
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55011 N/A
Radiated BS EN/EN55011 Class A without external components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 ±15KV air
Radiated Susceptibility BS EN/EN61000-4-3 10V/m
EFT/Bursts BS EN/EN61000-4-4 ±2KV
Surge BS EN/EN61000-4-5 ±2KV Line-Line
Conducted BS EN/EN61000-4-6 10Vrms(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 30A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55011	N/A
Radiated	BS EN/EN55011	Class A without external components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	±15KV air
Radiated Susceptibility	BS EN/EN61000-4-3	10V/m
EFT/Bursts	BS EN/EN61000-4-4	±2KV
Surge	BS EN/EN61000-4-5	±2KV Line-Line
Conducted	BS EN/EN61000-4-6	10Vrms(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	30A/m

OTHERS

MTBF: >454Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 31.8*20.3*12.2mm (1.25*0.8*0.48 inch)
CASE MATERIAL: UL94V-0 plastic case
PACKING: 17g ; 15pcs/per tube, 750pcs/50 tube max./carton

Test conditions and notes5

1.All parameters are specified at normal input(F: 12Vdc, G: 24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load for MDD06.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

MDD06F-15 Mechanical Specification — Mechanical Specification

MDD06F-15 Plug Assignment — Plug Assignment

MDD06F-15 MDS06 & MDD06 series — MDS06 & MDD06 series

MDD06F-15 MDS06 & MDD06 series (2) — MDS06 & MDD06 series (2)

Typical applications

Downloads

Certificates2

Mean Well MDS(D)03-MDS(D)06-CE-dec Certificate PDF Download

Mean Well MDD-MDS03-06-UK-dec Certificate PDF Download

Test reports1

Mean Well MDD06F-15 Test Report PDF Download

FAQ

Can I use the MDD06F-15 for a low-power analog signal conditioning board that needs ±15V rails?

Yes, this model is designed for constant-voltage output at 15V and -15V with 6W total power. It is a fit for low-power analog, instrumentation, or interface circuits that need dual 15V rails within up to 0.2A per output.

Is the MDD06F-15 suitable for medical or lab electronics with a wide low-voltage input range?

It can fit medical or lab equipment that needs a medical grade DC/DC converter and operates from a 9-36VDC input range. The unit provides dual 15V output in a compact 31.8 × 20.3 × 12.2 mm package.

Can this converter power an industrial control or measurement module that requires isolated ±15V power?

It is appropriate for compact industrial control or measurement modules that need constant-voltage 15V and -15V output and stay within 6W. The small size and 0.017 kg weight also make it practical where board space is limited.

Would the MDD06F-15 work for embedded systems that use ±15V analog sections but have a 9-36VDC source?

Yes, if the embedded design needs dual 15V rails and the source is within the stated 9-36VDC input range. This model is intended for low-power sections, with 6W total output and up to 0.2A per output.

How does the MDD06F-15 compare with the other MDD06F models?

All three MDD06F versions are 6W medical grade DC/DC converters, but they differ in output. The MDD06F-05 provides ±5V at up to 0.6A, the MDD06F-12 provides ±12V at up to 0.25A, and the MDD06F-15 provides ±15V at up to 0.2A per output.

Is the MDD06F-15 intended for outdoor or harsh-temperature environments?

The operating temperature range is -40°C to +90°C, with output derating at higher ambient temperatures per the derating curve. No IP rating is listed in the provided specs, so the product data does not identify it as an outdoor-rated enclosure.
