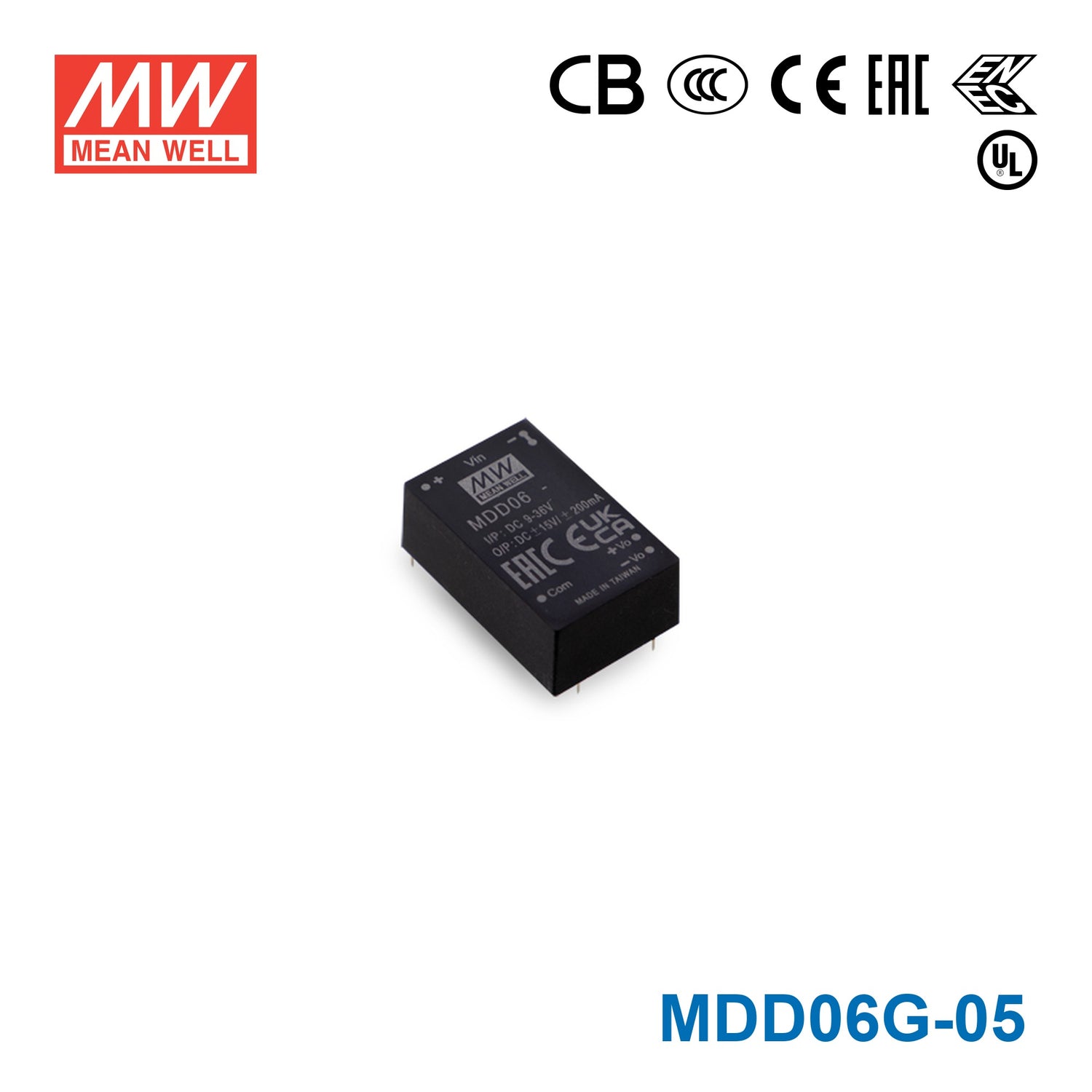

Mean Well MDD06G-05 Medical Grade DC/DC Converter 6W - 18-75V input...
Log in to see priceThe MDD06G is a 6W Mean Well power converter (input range: 9~36Vdc).
Key Features
- ✓ Input voltage range: 9~36Vdc
- ✓ 6KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating6 Watt
-
Output Voltage5 Volt
-
Rated Current0.6 Ampere
-
Input Voltage18V~75V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.22 cm
-
Weight0.02 kg
::specification::
Frequently Asked Questions
Can I use the MDD06G-05 to power a 5V embedded controller from a higher-voltage industrial DC bus?
Yes, this model is suited to low-power embedded electronics that need 5V and -5V output from an 18-75VAC input range. Its 6W rating and 0.6A output current make it appropriate for compact control and interface sections.
Is the MDD06G-05 a fit for 5V sensor, logic, or communication boards inside automation equipment?
It can fit low-power automation electronics that require constant-voltage 5V output and operate within the 18-75VAC input range. The 6W output supports smaller sensor, logic, and communications modules rather than higher-load devices.
Can this converter support IT or industrial electronics that need ±5V rails?
Yes, the MDD06G-05 is intended for applications that need dual 5V and -5V output in a medical grade DC/DC format. With 6W total power and 0.6A output current, it is best matched to low-power boards and subsystems.
Would the MDD06G-05 work in compact embedded designs where size and weight matter?
It is well suited to compact designs because the housing measures 31.8 × 20.3 × 12.2 mm and weighs 0.017 kg. That makes it practical for dense embedded, industrial, or medical electronics where board area is limited.
What is the main difference between the MDD06G-05 and the other MDD06G versions?
The MDD06G-05, MDD06G-12, and MDD06G-15 all share 6W output, medical grade construction, and the same 18-75VAC input range. The difference is output: 5V at 0.6A, 12V at 0.25A, or 15V at 0.2A.
Is the MDD06G-05 suitable for outdoor equipment cabinets or wide-temperature locations?
The listed operating temperature range is -40°C to +90°C, which supports demanding temperature conditions. No IP rating is provided in the specs, so the product information does not identify it as outdoor rated.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MDD06 Models
5 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well MDD06G-15 Medical Grade DC/DC Converter 6W - 18-75V input, 15 and -15V output 200mA | 6W | 15V | 0.2A | Indoor | View |
| Mean Well MDD06G-12 Medical Grade DC/DC Converter 6W - 18-75V input, 12 and -12V output 250mA | 6W | 12V | 0.25A | Indoor | View |
| Mean Well MDD06F-15 Medical Grade DC/DC Converter 6W - 9-36V input, 15 and -15V output 200mA | 6W | 15V | 0.2A | Indoor | View |
| Mean Well MDD06F-12 Medical Grade DC/DC Converter 6W - 9-36V input, 12 and -12V output 250mA | 6W | 12V | 0.25A | Indoor | View |
| Mean Well MDD06F-05 Medical Grade DC/DC Converter 6W - 9-36V input,5 and -5V output 600mA | 6W | 5V | 0.6A | Indoor | View |
