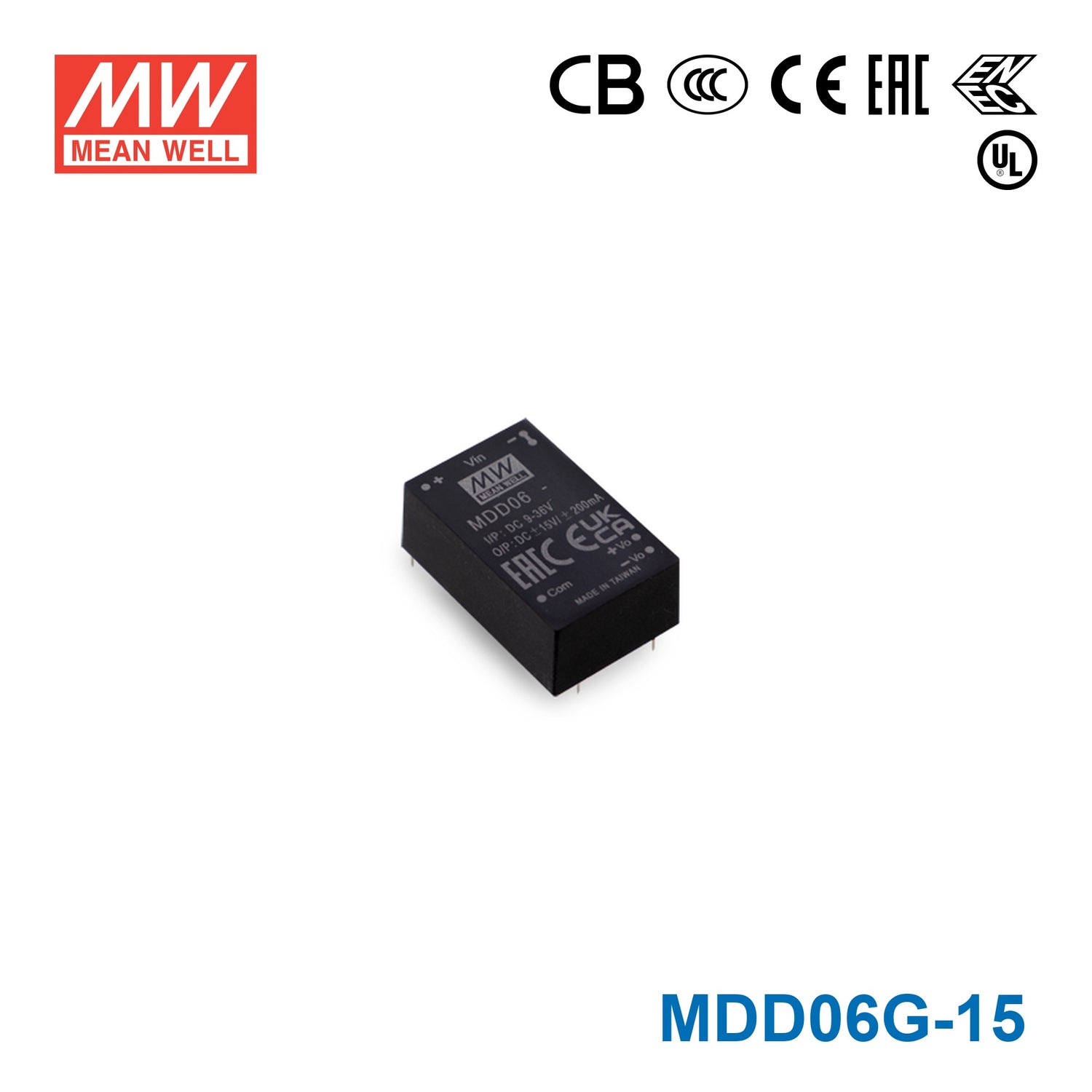

Mean Well MDD06G-15 Medical Grade DC/DC Converter 6W - 18-75V input...
Please Login for Pricing
Description
Description
The MDD06G is a 6W Mean Well power converter (input range: 9~36Vdc).
Key Features
- ✓ Input voltage range: 9~36Vdc
- ✓ 6KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: IEC60601-1(LVD) 3 edition, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMDD Series
-
Power Rating6 Watt
-
Output Voltage15 Volt
-
Rated Current0.2 Ampere
-
Input Voltage18V~75V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.22 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the MDD06G-15 for a compact analog control board that needs ±15V power?
Yes, this converter is suited to low-power analog and control electronics that require 15V and -15V constant-voltage output. It provides 6W total power and 0.2A output current from an 18-75VAC input range.
Is the MDD06G-15 suitable for instrumentation or signal interface modules in industrial equipment?
It can be a fit for instrumentation and signal interface circuits that need dual 15V rails and stay within 6W. The medical grade design and certifications including CB, CE, ENEC, and UL may also matter in regulated equipment builds.
Would this model work for embedded systems with a higher-voltage input bus and low-power ±15V sections?
Yes, if the system input is within the stated 18-75VAC range and the ±15V section stays within the 0.2A output current. This makes it suitable for low-power embedded analog stages rather than larger 15V loads.
Can the MDD06G-15 be used in small medical or lab assemblies where board space is tight?
It is well suited to compact assemblies because it measures 31.8 × 20.3 × 12.2 mm and weighs 0.017 kg. Those dimensions help when adding dual 15V power to dense medical or lab electronics.
What should I compare between the MDD06G-15 and the other MDD06G outputs?
The key difference across the MDD06G series is output. The MDD06G-05 is 5V at 0.6A, the MDD06G-12 is 12V at 0.25A, and the MDD06G-15 is 15V at 0.2A, while all remain 6W models with 18-75VAC input.
Is the MDD06G-15 appropriate for outdoor or wide-temperature installations?
The specified operating temperature range is -40°C to +90°C, so it supports broad temperature conditions. No IP rating is provided in the listed specs, so the product information does not identify it as outdoor rated.
Other MDD06 Models
5 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well MDD06G-12 Medical Grade DC/DC Converter 6W - 18-75V input, 12 and -12V output | 6W | 12V | 0.25A | Indoor | View |
| Mean Well MDD06G-05 Medical Grade DC/DC Converter 6W - 18-75V input, 5 and -5V output | 6W | 5V | 0.6A | Indoor | View |
| Mean Well MDD06F-15 Medical Grade DC/DC Converter 6W - 9-36V input, 15 and -15V output | 6W | 15V | 0.2A | Indoor | View |
| Mean Well MDD06F-12 Medical Grade DC/DC Converter 6W - 9-36V input, 12 and -12V output | 6W | 12V | 0.25A | Indoor | View |
| Mean Well MDD06F-05 Medical Grade DC/DC Converter 6W - 9-36V input,5 and -5V output | 6W | 5V | 0.6A | Indoor | View |
