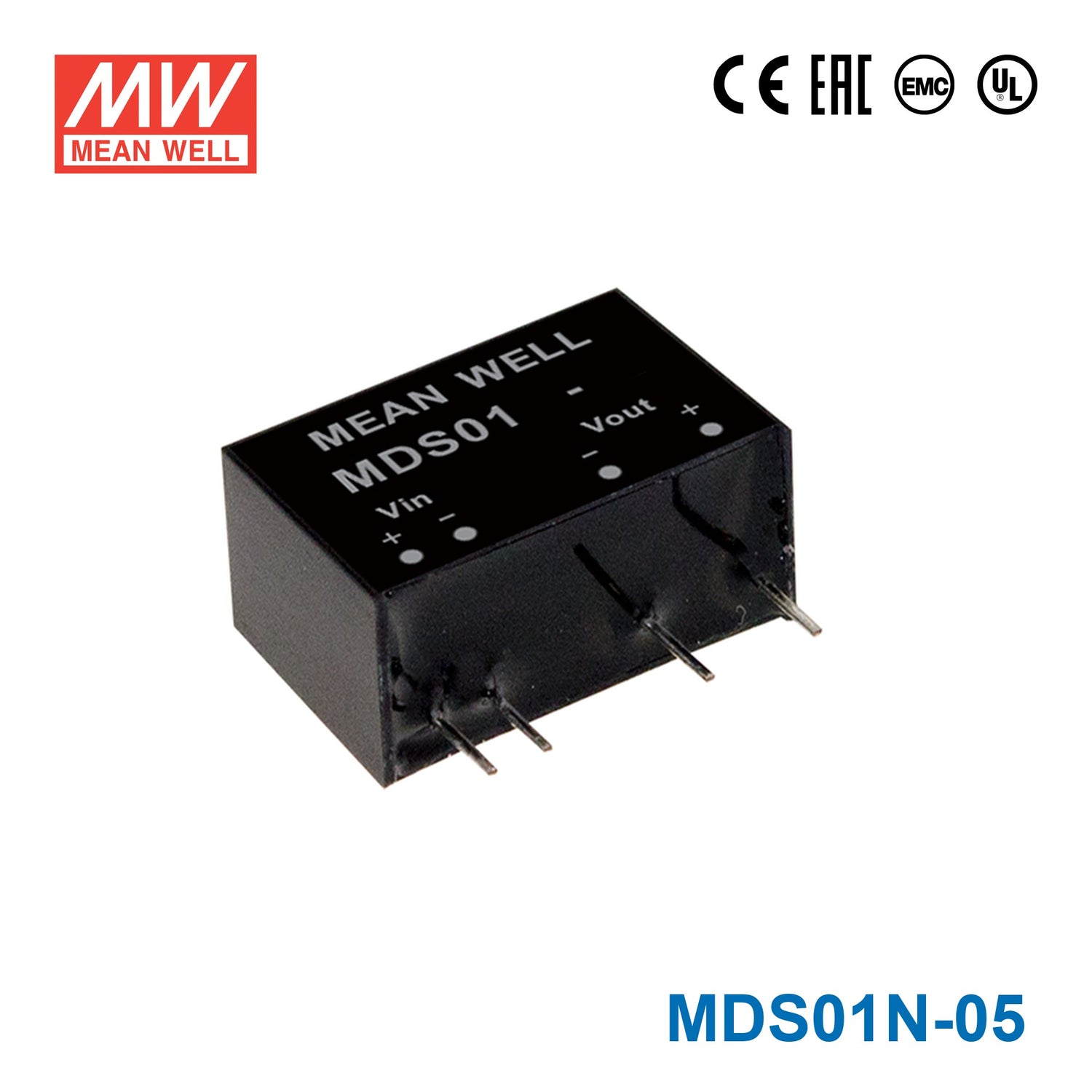

Mean Well MDS01N-05 DC-DC Converter - 1W - 21.6~26.4V in 5V out 200mA
Log in to see priceThe MDS01N is a 1W Mean Well power converter (input range: 4.5~5.5Vdc).
Key Features
- ✓ Input voltage range: 4.5~5.5Vdc
- ✓ 6KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ Safety approvals: UL60601-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating1 Watt
-
Output Voltage5 Volt
-
Rated Current0.2 Ampere
-
Input Voltage21.6V~26.4V
-
Standards MetCE,EAC,EMC,LVD,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.95 cm
-
Width1.25 cm
-
Height0.98 cm
-
Weight0 kg
::specification::
Frequently Asked Questions
Can I use the MDS01N-05 to provide 5V for embedded control electronics inside a 24V-class industrial panel?
This model is designed for a 21-26VAC input and provides a constant 5V output at 1W. That makes it a fit for low-power 5V embedded control sections inside equipment that operates within that input range.
Is the MDS01N-05 appropriate for powering 5V interface circuitry in automation equipment?
It can be used where the automation equipment has a 21-26VAC source and the interface section needs a regulated 5V output. The 1W power rating means it is better suited to low-power interface and control electronics than larger 5V loads.
Can this converter be used for 5V logic sections in industrial or embedded devices?
Yes, if the device is supplied from 21-26VAC and the logic section needs constant-voltage 5V output. Its compact 19.5 × 12.5 × 9.8 mm size also suits dense embedded or industrial assemblies.
Is the MDS01N-05 suitable for outdoor equipment or harsh environments?
The operating temperature range is -40°C to +85°C, which supports wide-temperature use inside equipment. No IP rating is listed in the provided specs, so it is better matched to protected indoor enclosures rather than exposed outdoor locations.
How does the MDS01N-05 compare with other MDS01N series models?
All listed MDS01N siblings are 1W models. The series includes MDS01N-03N at 3.3V and 8A, MDS01N-05N at 5V and 8A, MDS01N-12 at 12V and 0.08A, MDS01N-12N at 12V and 8A, MDS01N-15 at 15V and 0.07A, and MDS01N-15N at 15V and 9A, while this MDS01N-05 version is 5V and 200A.
