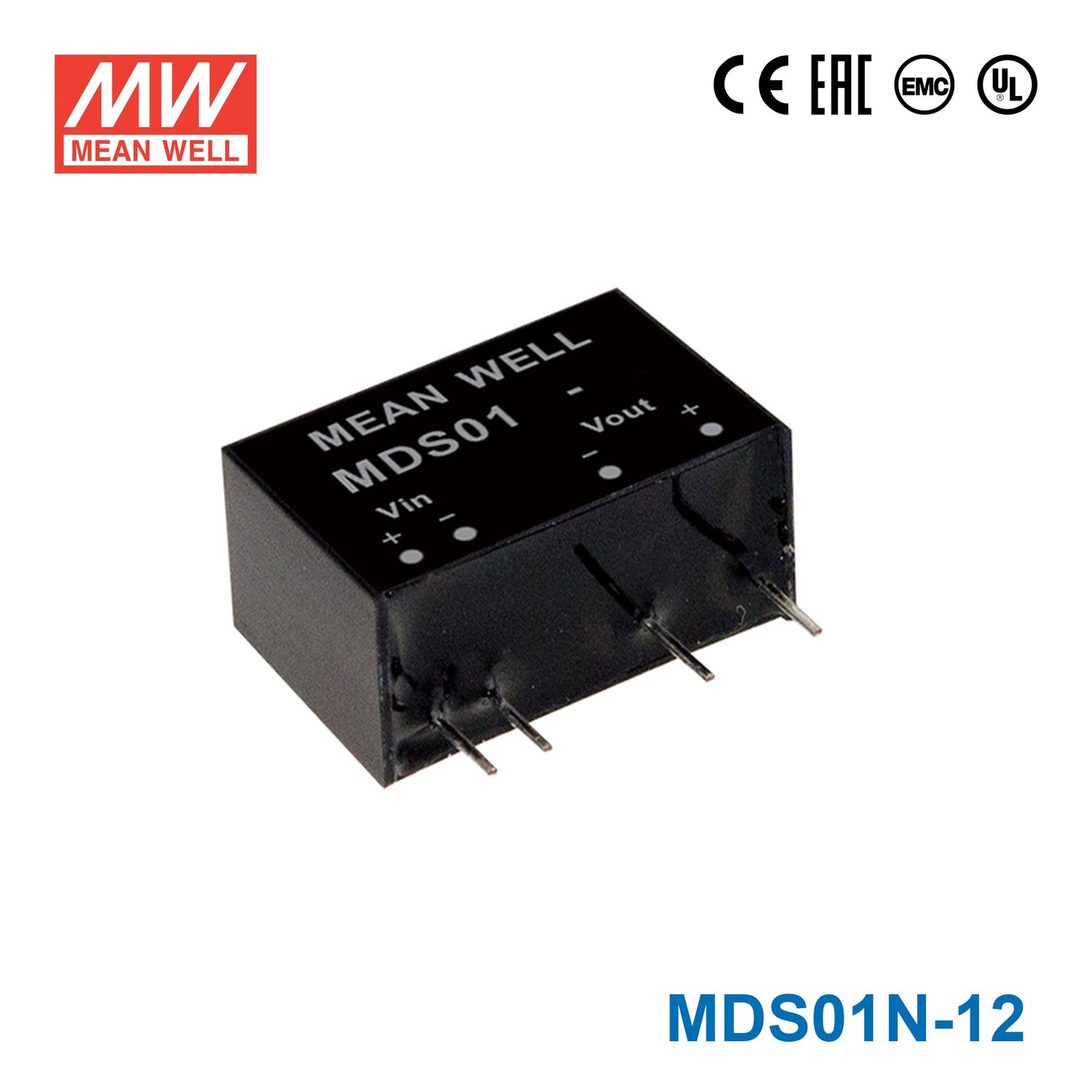

Mean Well MDS01N-12 DC-DC Converter - 1W - 21.6~26.4V in 12V out 84mA
Log in to see priceThe MDS01N is a 1W Mean Well power converter (input range: 4.5~5.5Vdc).
Key Features
- ✓ Input voltage range: 4.5~5.5Vdc
- ✓ 6KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ Safety approvals: UL60601-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating1 Watt
-
Output Voltage12 Volt
-
Rated Current0.08 Ampere
-
Input Voltage21.6V~26.4V
-
Standards MetCE,EAC,EMC,LVD,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.95 cm
-
Width1.25 cm
-
Height0.98 cm
-
Weight0 kg
::specification::
Frequently Asked Questions
Can I use the MDS01N-12 for a 12V signal-conditioning section inside industrial equipment?
This converter is intended for a 21-26VAC input and delivers a constant 12V output at 1W. That makes it appropriate for low-power 12V signal-conditioning or control sections inside industrial equipment operating in that input range.
Is the MDS01N-12 a fit for embedded systems that need a regulated 12V rail from a 24V-class source?
It is a fit when the available source is 21-26VAC and the embedded subsystem requires a regulated 12V output. With a 1W rating, it is intended for low-power 12V electronics rather than higher-power loads.
Can this model be used in automation hardware for 12V auxiliary electronics?
Yes, for automation hardware that has a 21-26VAC input available and needs a constant-voltage 12V auxiliary rail. Its 19.5 × 12.5 × 9.8 mm package also helps where board or enclosure space is limited.
Is the MDS01N-12 suitable for outdoor control boxes?
The specified operating temperature is -40°C to +85°C, so the temperature range supports demanding equipment environments. However, no IP rating is provided, so it should be treated as a converter for protected indoor or enclosed use rather than direct outdoor exposure.
What are the differences between the MDS01N-12 and the other MDS01N versions?
All listed models in the MDS01N group are rated at 1W. The sibling outputs are MDS01N-03N at 3.3V and 8A, MDS01N-05 at 5V and 200A, MDS01N-05N at 5V and 8A, MDS01N-12N at 12V and 8A, MDS01N-15 at 15V and 0.07A, and MDS01N-15N at 15V and 9A, while this unit is 12V and 0.08A.
