Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

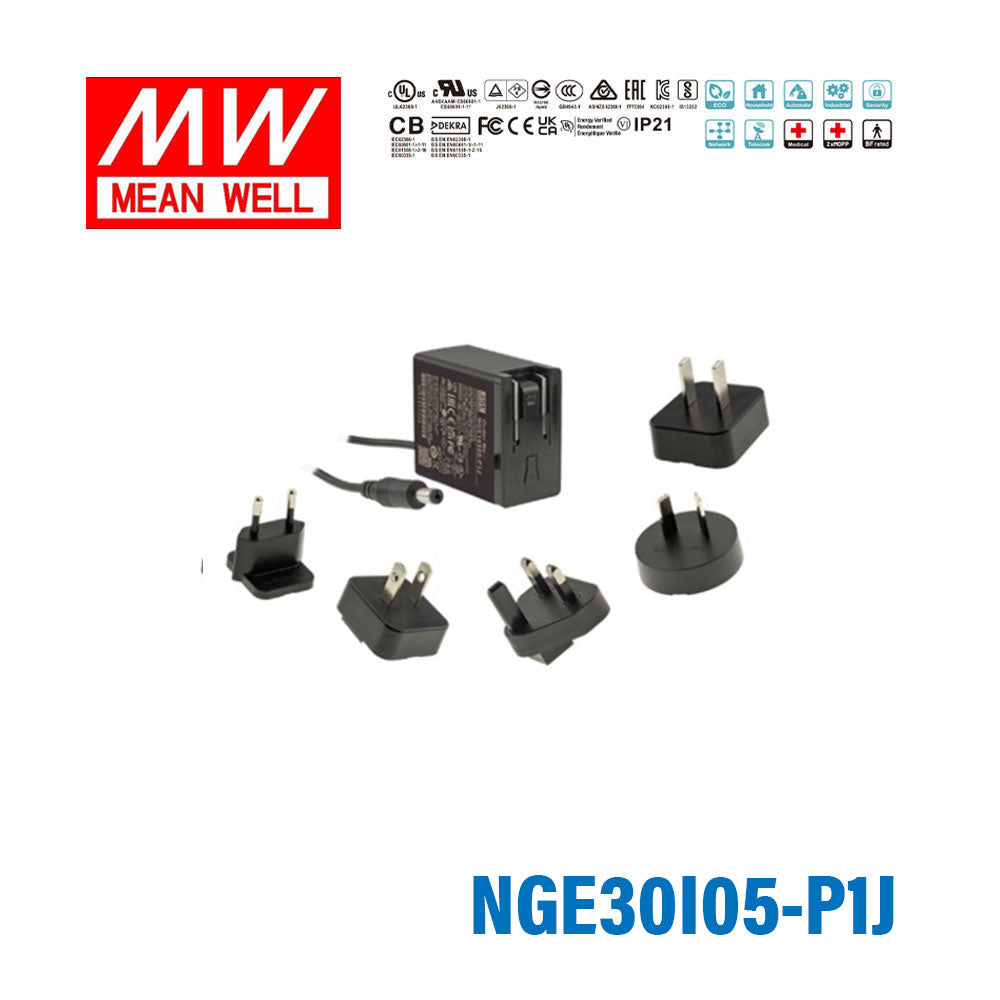

Mean Well NGE30I05-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE30I05 is a 30W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating20 Watt
-
Output Voltage5 Volt
-
Rated Current4 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.2 cm
-
Width3 cm
-
Height6.5 cm
-
Weight0.17 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well NGE30I05-P1J?
This model provides a regulated 5V DC output at up to 4A. Its maximum rated output power is 20W. That makes it suitable for equipment that specifically requires a 5V supply within that current range.
What type of applications is the NGE30I05-P1J designed for?
The NGE30I05-P1J is a wall-mounted AC-DC adaptor intended for professional and commercial equipment needing a 5V, 4A external power supply. Its certification coverage spans ITE, medical, household, and industrial standards, which makes it useful across multiple regulated application areas. Buyers should still confirm the end equipment's exact electrical and compliance requirements.
Does this adaptor support international use?
Yes. It has interchangeable AC plugs and a universal input range of 80 to 264VAC, which supports use across many regional mains systems. It also carries a broad set of global safety approvals for international projects and OEM purchasing.
How energy efficient is the Mean Well NGE30I05-P1J?
This adaptor meets Energy Efficiency Level VI and has no-load power consumption below 0.075W. Those figures make it a strong choice for applications where standby power and operating efficiency matter. It is positioned as a green adaptor for lower idle energy use.
What protection features are included in this power adaptor?
The NGE30I05-P1J includes protection against short circuit, overload, and over-voltage conditions. For the 5V version, overload protection uses hiccup mode and automatically recovers after the fault is removed. It also passes LPS requirements and is designed as a Class II power unit.
Can this adaptor be used in demanding temperature conditions?
Yes. The specified operating temperature range is -30°C to +70°C, which is wider than many standard desktop or wall plug adaptors. That makes it better suited to harsher indoor or enclosed equipment environments, subject to the product's derating guidance.
How compact is the NGE30I05-P1J?
This model has a slim profile and measures 62 x 30 x 65mm. Mean Well also highlights its ultra-slim 28mm design characteristic. Its compact wall-mount form factor can help where space around power outlets or installed equipment is limited.
What warranty comes with this model?
The Mean Well NGE30I05-P1J includes a 3-year warranty. That is useful for buyers evaluating lifecycle support for commercial or OEM procurement. It also reflects the product's positioning as a certified industrial-grade external power supply.
