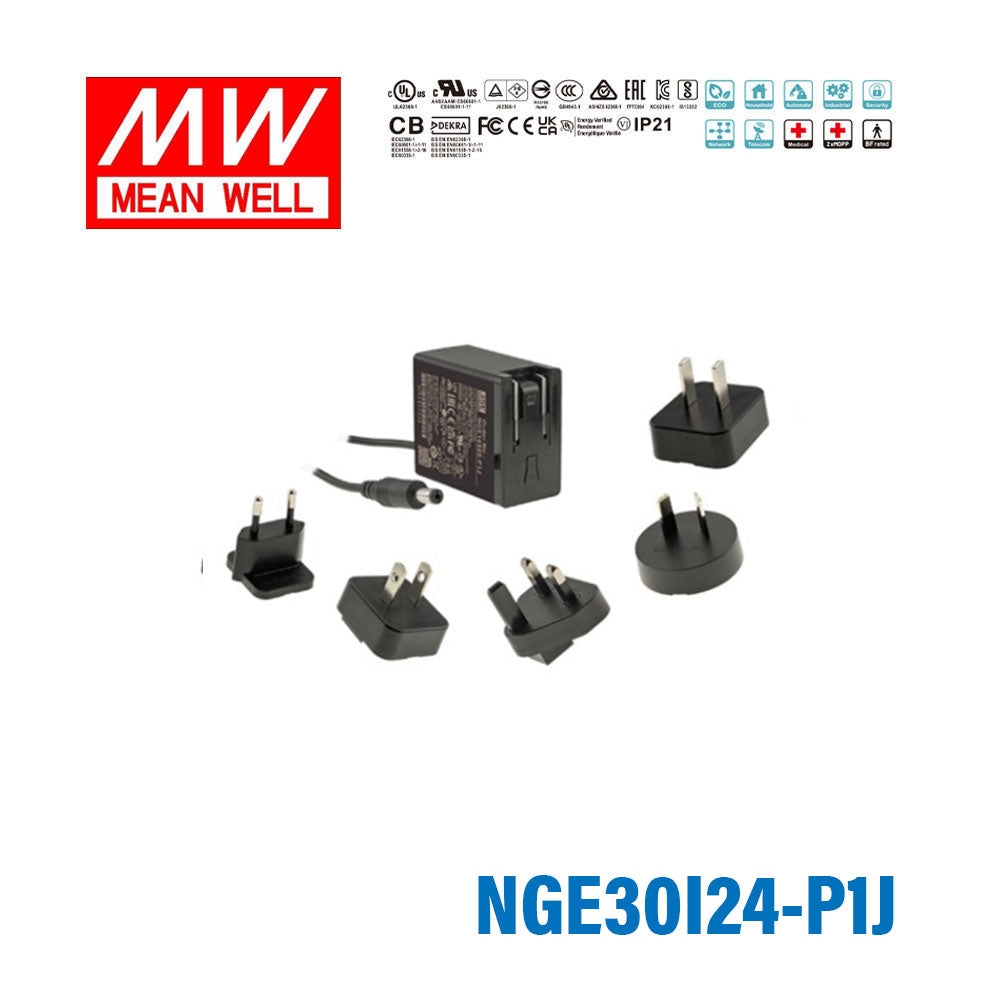

Mean Well NGE30I24-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE30I24 is a 30W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating30 Watt
-
Output Voltage24 Volt
-
Rated Current1.25 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.2 cm
-
Width3 cm
-
Height6.5 cm
-
Weight0.17 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well NGE30I24-P1J?
This model is a 30W AC-DC wall-mounted power adaptor with a 24V DC output and a rated current of 1.25A. It is designed as a fixed-output, non-dimmable power supply for equipment that requires those output ratings.
Does the NGE30I24-P1J support international power input?
Yes. It has a universal input range of 80 to 264VAC and also supports 113 to 370VDC input. The adaptor also features interchangeable AC plugs, which makes it suitable for multi-region deployment requirements.
What types of equipment is this adaptor typically used for?
This adaptor is suited to commercial and industrial devices that need a regulated 24V DC supply up to 1.25A. Its certifications across ITE, medical, household, and industrial standards make it a strong fit for professional OEM and B2B applications where compliance matters.
Can this power adaptor be used in demanding temperature conditions?
Yes. The NGE30I24-P1J is rated for operation from -30°C to +70°C, giving it a wide working temperature range. That makes it better suited than many basic desktop adaptors for tougher indoor operating environments.
What protection features does the NGE30I24-P1J include?
This model includes short circuit, overload, and over voltage protection. It also meets LPS requirements and is designed with extremely low leakage current below 100uA, which is useful for applications with stricter safety expectations.
How energy efficient is the Mean Well NGE30I24-P1J?
The adaptor meets Energy Efficiency Level VI and has no-load power consumption below 0.075W. That makes it a good choice for buyers looking to reduce standby power use in always-connected equipment.
