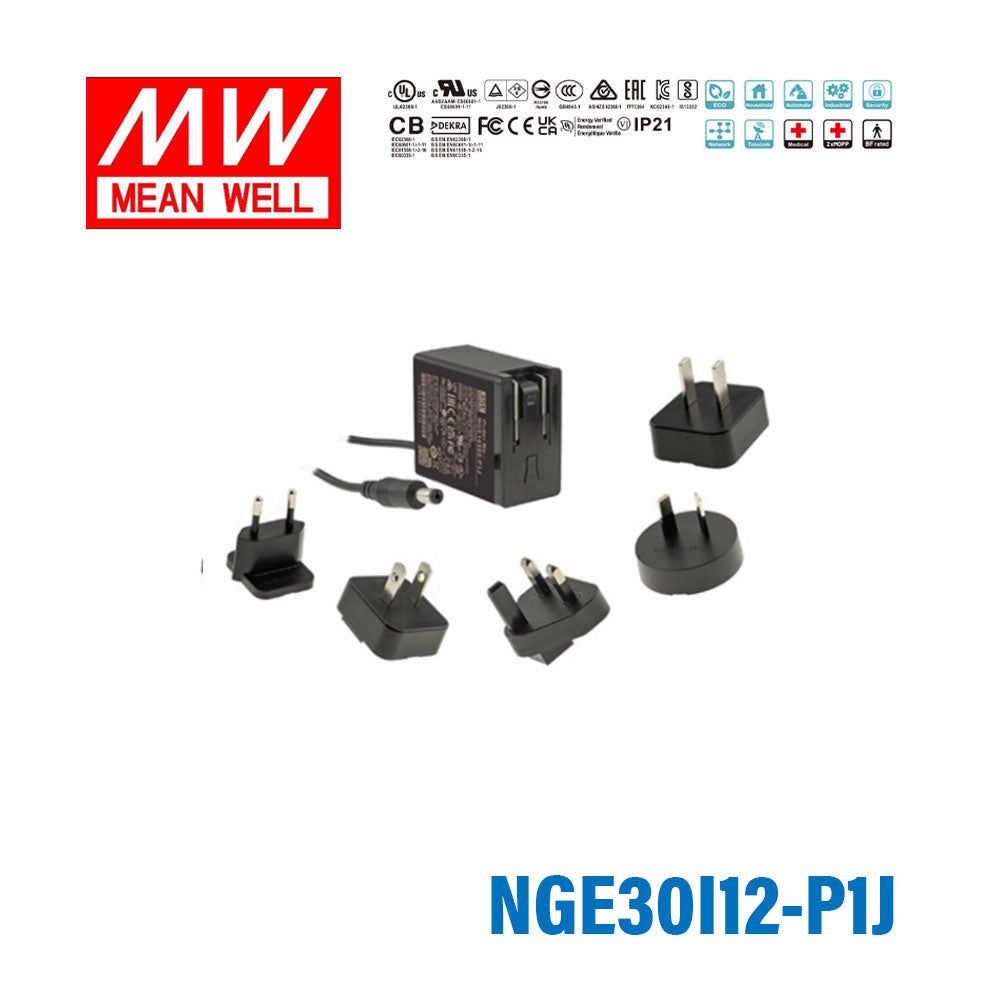

Mean Well NGE30I12-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE30 is a highly reliable, 30W wall-mounted single-output green adaptor series — compact and convenient for travel. Equipped with 7 types of interchangeable AC plugs (EU, USA, UK, AU, CN, KR, IN), it accepts universal input from 80~264VAC to suit electrical devices worldwide. With working efficiency up to 91.5% and no-load consumption below 0.075W, it meets USA EISA 2007/DoE, Canada NRCan, AU/NZ MEPS, Korea KMEPS, and EU ErP energy standards. Approved for ITE, medical, household and industrial safety regulations with a 94V-0 flame retardant case.
Key Features
- ✓✓Interchangeable AC plugs (EU, US, UK, AU, CN, KR, IN)
- ✓✓Global multi-field certifications — ITE, Medical, Household & Industrial
- ✓✓Universal AC input 80~264VAC / full range
- ✓✓Ultra slim design — only 30mm wide
- ✓✓Energy efficiency Level VI — no-load power consumption <0.075W
- ✓✓Class II power — no earth pin required
- ✓✓Protections: Short circuit / Overload / Over voltage
- ✓✓Extremely low leakage current <100uA
- ✓✓Wide operating temperature: -30℃ ~ +70℃
- ✓✓DC plug quick adapter accessories available (sold separately)
- ✓✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating30 Watt
-
Output Voltage12 Volt
-
Rated Current2.5 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.2 cm
-
Width3 cm
-
Height6.5 cm
-
Weight0.17 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well NGE30I12-P1J?
The NGE30I12-P1J is a 30W AC-DC wall-mounted adaptor with a 12V DC output and a rated current of 2.5A. It is designed as a compact external power supply for equipment that requires this output level.
What types of applications is the NGE30I12-P1J suited for?
This model is intended for equipment that needs a regulated 12V, 2.5A external power source in a wall-mounted format. Its approvals across ITE, medical, household, and industrial standards make it a strong fit for professional and OEM purchasing where compliance matters.
Does this adaptor support use in different regions?
Yes. The NGE30I12-P1J features interchangeable AC plugs and a universal input range of 80 to 264VAC, which supports broad international use. That makes it useful for businesses sourcing one power solution for multiple markets.
What protection features are included in this power adaptor?
This model includes short circuit, overload, and over voltage protection. The overload protection is rated at 110% to 150% of rated output power, and the unit is designed to recover appropriately depending on the fault condition.
Is the NGE30I12-P1J energy efficient?
Yes. It meets Energy Efficiency Level VI and has no-load power consumption below 0.075W. That makes it a good choice where low standby power and energy performance are important purchasing criteria.
Can this adaptor operate in demanding temperature conditions?
The NGE30I12-P1J is rated for operation from -30°C to +70°C. This wide working temperature range makes it more suitable than basic indoor-only adaptors for harsher commercial or industrial environments.
What certifications and safety coverage does this model offer?
This adaptor carries broad safety approvals including IEC62368-1, IEC60601-1, IEC61558-1/-2-16, and IEC60335-1, along with multiple regional certifications. That broad certification coverage is one of the key differentiators of this model for regulated and export-oriented applications.
What is the physical size and warranty of the NGE30I12-P1J?
The listed dimensions are 62 x 30 x 65 mm, and the design is described as ultra slim at 28 mm. Mean Well specifies a 3-year warranty for this model.
