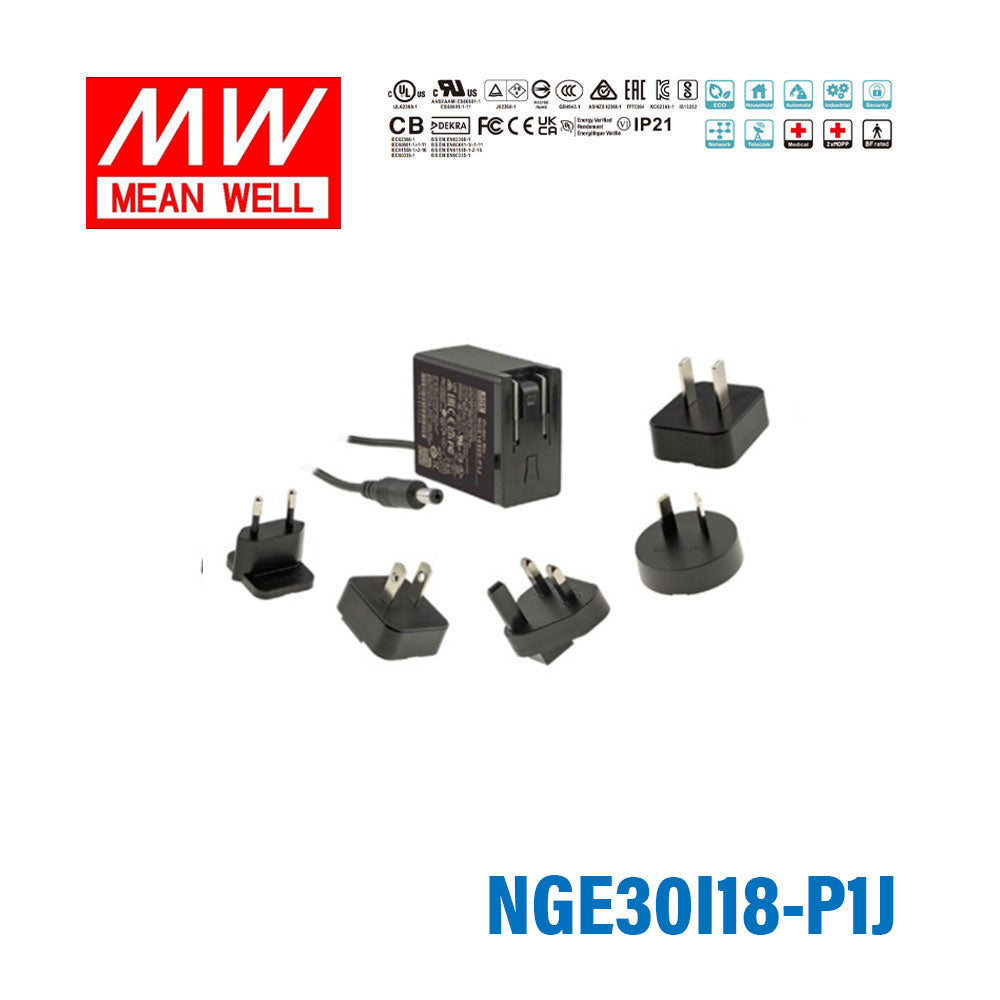

Mean Well NGE30I18-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE30I18 is a 30W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating30 Watt
-
Output Voltage18 Volt
-
Rated Current1.66 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.2 cm
-
Width3 cm
-
Height6.5 cm
-
Weight0.17 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specs of the Mean Well NGE30I18-P1J?
The NGE30I18-P1J is a 30W AC-DC wall adaptor with a regulated 18V DC output and a rated current of 1.66A. It is designed for universal AC input from 80 to 264VAC and is built in a slim 28mm profile. This model also includes short circuit, overload, and over voltage protection.
What types of applications is this 18V wall adaptor typically suited for?
This model is best suited to equipment that requires a stable 18V DC supply and draws no more than 1.66A. Its broad safety approvals span ITE, medical, household, and industrial standards, which makes it relevant for many commercial and regulated equipment programs. Final suitability still depends on the power requirements and approval needs of the end device.
How do I know if the NGE30I18-P1J is compatible with my device?
At a minimum, the device must require 18V DC and stay within the adaptor's 1.66A and 30W limits. If the device needs more current or higher wattage, this model is undersized. This series also supports various DC plug quick-adapter accessories, but the exact accessory needed must be matched to the device separately.
What makes the NGE30I18-P1J different from a standard fixed-plug power adaptor?
A key difference is its interchangeable AC plug design, which is useful for organizations supporting multiple regions or export-ready equipment. It also combines universal AC input, Energy Efficiency Level VI performance, and very low no-load power consumption below 0.075W. Compared with many basic wall adaptors, it is built for broader compliance and lower standby loss.
Is this power adaptor suitable for demanding operating environments?
The NGE30I18-P1J is rated for operation from -30C to +70C, which is a wide temperature range for a wall-mounted adaptor. It is also a Class II unit with no earth pin and features extremely low leakage current below 100uA. Those characteristics can be useful where insulation class, low standby loss, and broad ambient tolerance matter.
Does this model include safety certifications and warranty coverage?
Yes. The NGE30I18-P1J carries a wide set of approvals including IEC/UL 62368-1, IEC 60601-1, IEC 60335-1, and IEC 61558-related certifications, along with regional approvals such as PSE, BSMI, RCM, EAC, and CCC. Mean Well also backs this model with a 3-year warranty.
