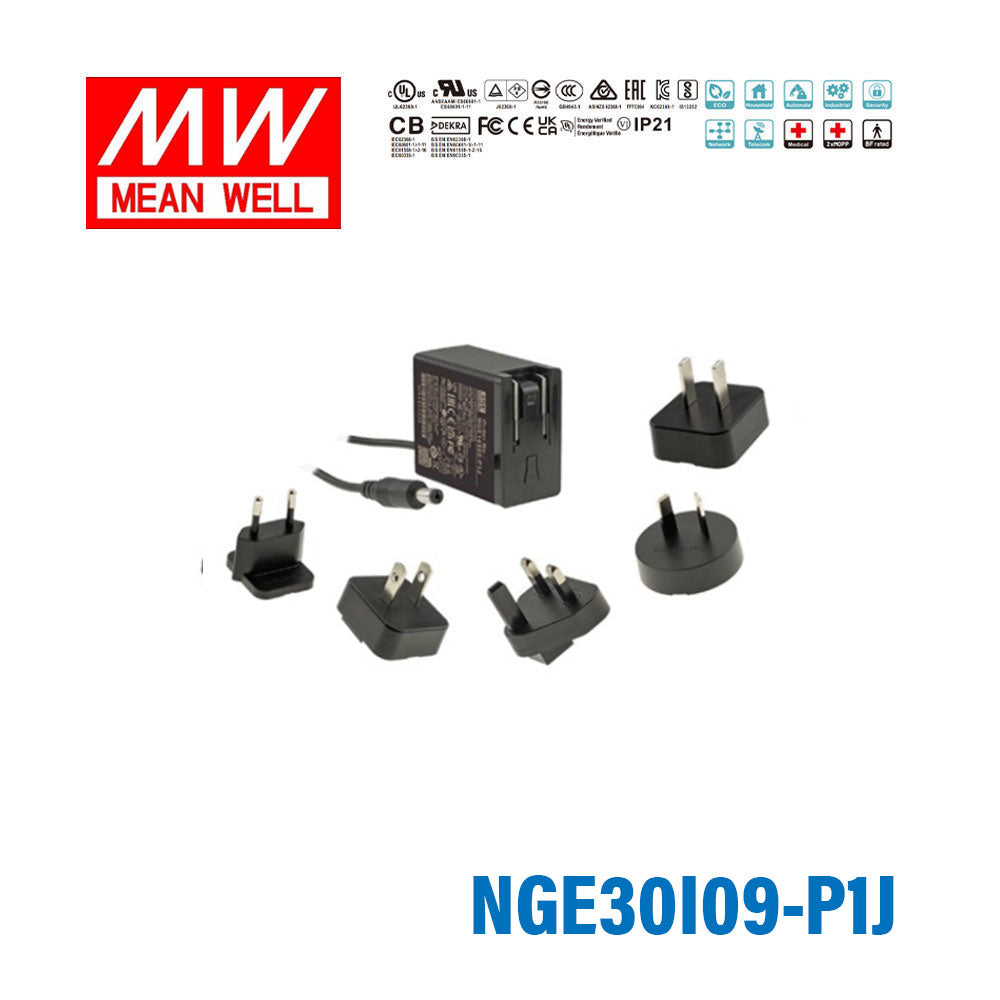

Mean Well NGE30I09-P1J AC-DC Wall-mounted Green Adaptor - Interchan...
Please Login for Pricing
Description
Description
The NGE30I09 is a 30W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNGE Series
-
Power Rating30 Watt
-
Output Voltage9 Volt
-
Rated Current3.33 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,FC,ROHS,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.2 cm
-
Width3 cm
-
Height6.5 cm
-
Weight0.17 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well NGE30I09-P1J provide?
This model provides a regulated 9V DC output at up to 3.33A. Its maximum power rating is 30W, making it suitable for equipment that requires a 9V supply within that current range.
What makes the NGE30I09-P1J a good choice for international or multi-region use?
The NGE30I09-P1J uses interchangeable AC plugs and supports a universal input range of 80 to 264VAC. It is also listed with multiple international safety approvals, which makes it well suited to OEM and business applications across different markets.
Is this power adaptor energy efficient?
Yes. This model is rated to Energy Efficiency Level VI and has no-load power consumption below 0.075W. That helps reduce standby energy use compared with less efficient external power supplies.
What protection features are built into this adaptor?
The NGE30I09-P1J includes protection against short circuit, overload, and over voltage. The overload protection is specified at 110% to 150% of rated output power, with automatic recovery behavior depending on the output condition described by the manufacturer.
Can this adaptor be used in demanding temperature conditions?
This model has a specified operating temperature range of -30°C to +70°C. That wide range makes it suitable for applications where the environment may be colder or hotter than typical indoor office conditions.
What form factor and insulation class does the NGE30I09-P1J use?
This is a wall-mounted AC-DC adaptor with a slim 28mm profile and overall dimensions of 62 x 30 x 65mm. It is a Class II power supply, which means it does not use an earth pin.
What kinds of standards and application categories does this adaptor support?
The NGE30I09-P1J is certified across several application areas, including ITE, medical, household, and industrial standards. The listed approvals include IEC 62368-1, IEC 60601-1/-1-11, IEC 60335-1, and IEC 61558-1/-2-16, among others.
