Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well NPB-360-12AD1 Battery Charger 360W 12V Anderson Connector 20A

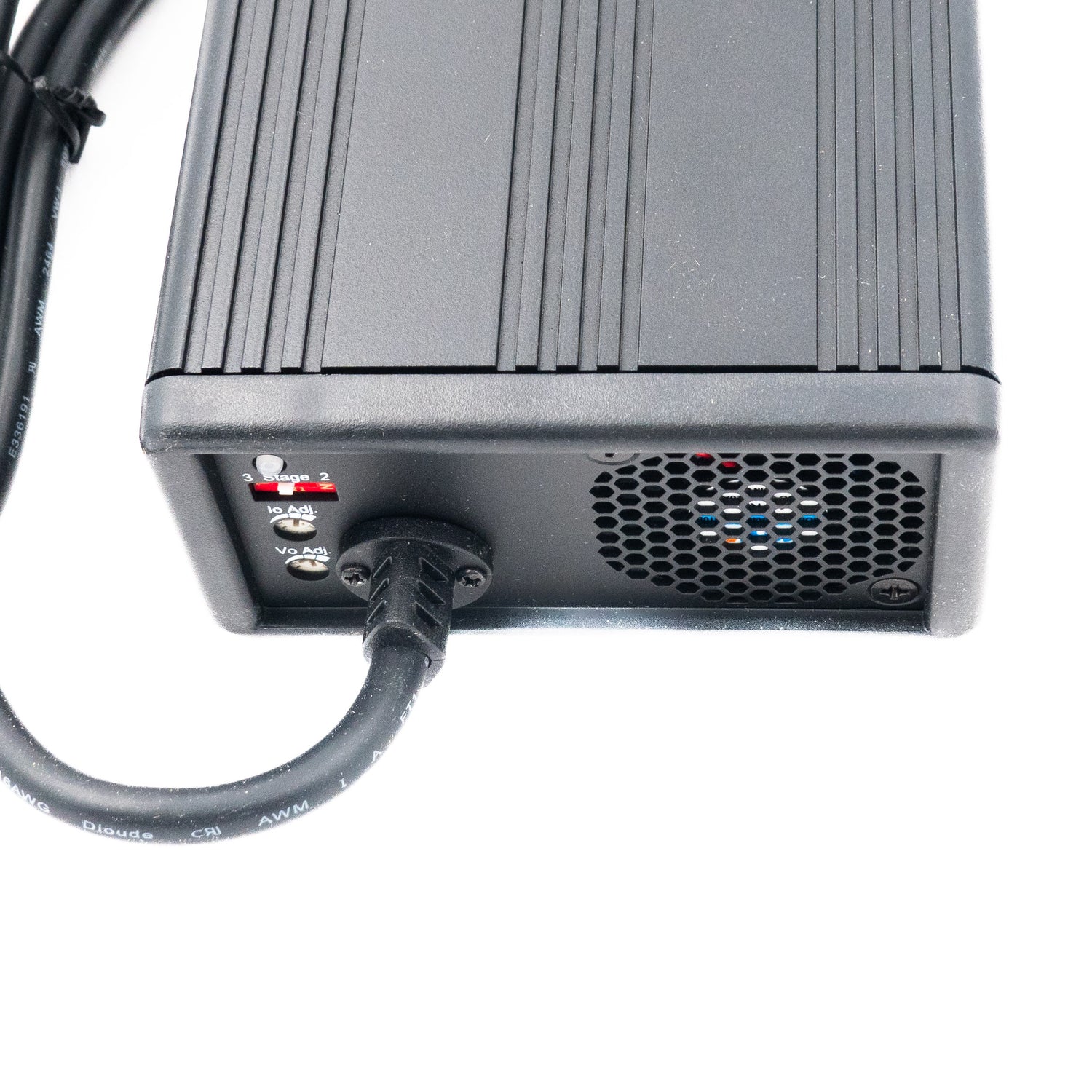

wide voltage rangemetal enclosure for better heat dissipationeasy and flexible adjustment for voltage and current2 or 3 stage selectable by dip switch

SKU:

NPB-360-12AD1

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NPB-360 is a 360W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).

Key Features

✓ Input voltage range: 90~264VAC
✓ 3KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+70℃
✓ Protections: Short circuit / Over voltage / Over temperature / Reverse polarity
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004
✓ 3 years warranty

Frequently Asked Questions

What is the Mean Well NPB-360-12AD1 used for?

The NPB-360-12AD1 is an AC-DC battery charger designed for 12V battery charging applications where a controlled charging profile is needed. This model delivers up to 14.4Vdc at 20A and is suited to buyers looking for a 360W charger in a compact industrial format.

What are the main electrical specifications of this charger?

This model is rated at 360W output power with a charging output of 14.4Vdc and 20A. It also features power factor correction and accepts universal AC input, making it suitable for use across a wide range of AC supply environments.

Does the NPB-360-12AD1 support staged battery charging?

Yes, the product description specifies 2-stage or 3-stage charging capability. That makes it a better fit for battery charging duties than a basic fixed-output supply, especially where charging behavior matters for the application.

What connector does this version include?

This specific model includes an Anderson connector. That is one of the distinguishing features of the NPB-360-12AD1 version compared with otherwise similar charger variants that may use a different output format.

Can this charger be used in demanding temperature conditions?

The NPB-360-12AD1 is specified for operation from -30°C to 70°C. That wide temperature range makes it suitable for industrial and mobile environments where ambient conditions can vary significantly.

What should buyers know about the physical size and warranty of this unit?

This charger has a listed weight of 1.3 kg, which is useful when evaluating portable or panel-based equipment builds. Mean Well also specifies a 3-year warranty period for this model.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Battery Type	Battery Voltage	Charging Current
Mean Well NPB-360-24TB Battery Charger 360W 24V Terminal Block 12A	360W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-360-12TB Battery Charger 360W 12V Terminal Block 20A	360W	Lithium and Lead Acid Battery	14.4V	—	View
Mean Well NPB-360-48XLR Battery Charger 360W 48V 3 Pin Power Pin 6A	360W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-360-48TB Battery Charger 360W 48V Terminal Block 6A	360W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-360-48AD1 Battery Charger 360W 48V Anderson Connector 6A	360W	Lithium and Lead Acid Battery	57.6V	—	View
Mean Well NPB-360-24XLR Battery Charger 360W 24V 3 Pin Power Pin 12A	360W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-360-24AD1 Battery Charger 360W 24V Anderson Connector 12A	360W	Lithium and Lead Acid Battery	28.8V	—	View
Mean Well NPB-360-12XLR Battery Charger 360W 12V 3 Pin Power Pin 20A	360W	Lithium and Lead Acid Battery	14.4V	—	View
